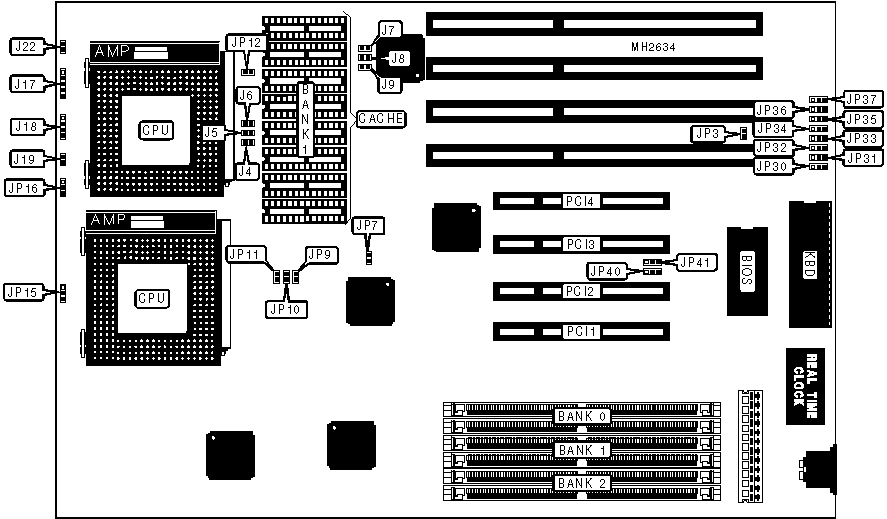

PENTIUM (P54C) EISA PCI MAINBOARD Motherboard Settings and Configuration

SOYO TECHNOLOGY COMPANY, LTD.

PENTIUM (P54C) EISA PCI MAINBOARD

Processor
Pentium
Processor Speed
90/100MHz
Chip Set
Unidentified
Max. Onboard DRAM
512MB
Cache
256/512KB
BIOS
AWARD
Dimensions
330mm x 218mm
I/O Options
32-bit PCI slots (4)
NPU Options
None

CONNECTIONS
Purpose
Location
Purpose
Location
Power LED & keylock
J17
Turbo LED
J22
Speaker
J18
32-bit PCI slots
PCI1 - PCI4
Reset switch
J19

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Monitor type select color
JP3
Closed

Monitor type select monochrome
JP3
Open
»
Pipeline mode disabled
JP7
Open

Pipeline mode enabled
JP7
Closed
»
CPU cache type select write back
JP12
Open

CPU cache type select write through
JP12
Closed
»
Single processor enabled
JP16
pins 1 & 2 closed

Dual processor enabled
JP16
pins 2 & 3 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
2MB
(2) 256K x 36
NONE
NONE
4MB
(2) 256K x 36
(2) 256K x 36
NONE
4MB
(2) 512K x 36
NONE
NONE
6MB
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
8MB
(2) 512K x 36
(2) 512K x 36
NONE
8MB
(2) 1M x 36
NONE
NONE
12MB
(2) 512K x 36
(2) 512K x 36
(2) 512K x 36
12MB
(2) 1M x 36
(2) 512K x 36
NONE
16MB
(2) 1M x 36
(2) 512K x 36
(2) 512K x 36
16MB
(2) 1M x 36
(2) 1M x 36
NONE
16MB
(2) 2M x 36
NONE
NONE
20MB
(2) 1M x 36
(2) 1M x 36
(2) 512K x 36
20MB
(2) 2M x 36
(2) 512K x 36
NONE
24MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 512K x 36
(2) 512K x 36
24MB
(2) 2M x 36
(2) 1M x 36
NONE
32MB
(2) 4M x 36
NONE
NONE
32MB
(2) 2M x 36
(2) 2M x 36
NONE
32MB
(2) 2M x 36
(2) 1M x 36
(2) 1M x 36
48MB
(2) 4M x 36
(2) 2M x 36
NONE
48MB
(2) 4M x 36
(2) 1M x 36
(2) 1M x 36
48MB
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
64MB
(2) 8M x 36
NONE
NONE
64MB
(2) 4M x 36
(2) 4M x 36
NONE
64MB
(2) 4M x 36
(2) 2M x 36
(2) 2M x 36
68MB
(2) 512K x 36
(2) 8M x 36
NONE
80MB
(2) 2M x 36
(2) 8M x 36
NONE
96MB
(2) 8M x 36
(2) 4M x 36
NONE
96MB
(2) 8M x 36
(2) 2M x 36
(2) 2M x 36
96MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36
NONE
128MB
(2) 8M x 36
(2) 4M x 36
(2) 4M x 36
128MB
(2) 16M x 36
NONE
NONE
192MB
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
256MB
(2) 16M x 36
(2) 16M x 36
NONE
256MB
(2) 32M x 36
NONE
NONE
384MB
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
512MB
(2) 32M x 36
(2) 32M x 36
NONE
DRAM VOLTAGE CONFIGURATION
Setting
J4
J5
J6
J7
J8
J9
3.33v SRAM
Closed
Closed
Closed
Open
Open
Open
Mixed SRAM
Open
Open
Open
Closed
Closed
Closed
CACHE CONFIGURATION
Size
Bank 1
256KB
(8) 32K x 8
512KB
(8) 64K x 8
CACHE JUMPER CONFIGURATION
Size
JP15
256KB
pins 2 & 3 closed
512KB
pins 1 & 2 closed
CPU SPEED CONFIGURATION
Speed
JP9
JP10
JP11
90MHz
Open
Closed
Open
100MHz
Closed
Open
Closed
BIOS CONFIGURATION
Setting
JP40
JP41
EPROM
pins 1 & 2 closed
pins 1 & 2 closed
Flash
pins 2 & 3 closed
pins 2 & 3 closed
PCI IRQ CONFIGURATION
Setting
JP30
JP31
JP32
JP33
IRQ9/PIRQ0
pins 1 & 2 closed
Open
Open
Open
IRQ9/PIRQ1
pins 2 & 3 closed
Open
Open
Open
IRQ10/PIRQ0
Open
pins 1 & 2 closed
Open
Open
IRQ10/PIRQ1
Open
pins 2 & 3 closed
Open
Open
IRQ14/PIRQ0
Open
Open
pins 1 & 2 closed
Open
IRQ14/PIRQ1
Open
Open
pins 2 & 3 closed
Open
IRQ15/PIRQ0
Open
Open
Open
pins 1 & 2 closed
IRQ15/PIRQ1
Open
Open
Open
pins 2 & 3 closed

PCI IRQ CONFIGURATION
Setting
JP34
JP35
JP36
JP37
IRQ9/PIRQ2
pins 1 & 2 closed
Open
Open
Open
IRQ9/PIRQ3
pins 2 & 3 closed
Open
Open
Open
IRQ10/PIRQ2
Open
pins 1 & 2 closed
Open
Open
IRQ10/PIRQ3
Open
pins 2 & 3 closed
Open
Open
IRQ14/PIRQ2
Open
Open
pins 1 & 2 closed
Open
IRQ14/PIRQ3
Open
Open
pins 2 & 3 closed
Open
IRQ15/PIRQ2
Open
Open
Open
pins 1 & 2 closed
IRQ15/PIRQ3
Open
Open
Open
pins 2 & 3 closed

PENTIUM (P54C) EISA PCI MAINBOARD Motherboard Settings and Configuration

Search

My Books

Discover

Processor	Pentium
Processor Speed	90/100MHz
Chip Set	Unidentified
Max. Onboard DRAM	512MB
Cache	256/512KB
BIOS	AWARD
Dimensions	330mm x 218mm
I/O Options	32-bit PCI slots (4)
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	J17	Turbo LED	J22
Speaker	J18	32-bit PCI slots	PCI1 - PCI4
Reset switch	J19

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select color	JP3	Closed
	Monitor type select monochrome	JP3	Open
»	Pipeline mode disabled	JP7	Open
	Pipeline mode enabled	JP7	Closed
»	CPU cache type select write back	JP12	Open
	CPU cache type select write through	JP12	Closed
»	Single processor enabled	JP16	pins 1 & 2 closed
	Dual processor enabled	JP16	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
2MB	(2) 256K x 36	NONE	NONE
4MB	(2) 256K x 36	(2) 256K x 36	NONE
4MB	(2) 512K x 36	NONE	NONE
6MB	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36
8MB	(2) 512K x 36	(2) 512K x 36	NONE
8MB	(2) 1M x 36	NONE	NONE
12MB	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
12MB	(2) 1M x 36	(2) 512K x 36	NONE
16MB	(2) 1M x 36	(2) 512K x 36	(2) 512K x 36
16MB	(2) 1M x 36	(2) 1M x 36	NONE
16MB	(2) 2M x 36	NONE	NONE
20MB	(2) 1M x 36	(2) 1M x 36	(2) 512K x 36
20MB	(2) 2M x 36	(2) 512K x 36	NONE
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 512K x 36	(2) 512K x 36
24MB	(2) 2M x 36	(2) 1M x 36	NONE
32MB	(2) 4M x 36	NONE	NONE
32MB	(2) 2M x 36	(2) 2M x 36	NONE
32MB	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36	NONE
48MB	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36
48MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
64MB	(2) 8M x 36	NONE	NONE
64MB	(2) 4M x 36	(2) 4M x 36	NONE
64MB	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36
68MB	(2) 512K x 36	(2) 8M x 36	NONE
80MB	(2) 2M x 36	(2) 8M x 36	NONE
96MB	(2) 8M x 36	(2) 4M x 36	NONE
96MB	(2) 8M x 36	(2) 2M x 36	(2) 2M x 36
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36	NONE
128MB	(2) 8M x 36	(2) 4M x 36	(2) 4M x 36
128MB	(2) 16M x 36	NONE	NONE
192MB	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2
256MB	(2) 16M x 36	(2) 16M x 36	NONE
256MB	(2) 32M x 36	NONE	NONE
384MB	(2) 16M x 36	(2) 16M x 36	(2) 16M x 36
512MB	(2) 32M x 36	(2) 32M x 36	NONE

DRAM VOLTAGE CONFIGURATION
Setting	J4	J5	J6	J7	J8	J9
3.33v SRAM	Closed	Closed	Closed	Open	Open	Open
Mixed SRAM	Open	Open	Open	Closed	Closed	Closed

CACHE CONFIGURATION
Size	Bank 1
256KB	(8) 32K x 8
512KB	(8) 64K x 8

CACHE JUMPER CONFIGURATION
Size	JP15
256KB	pins 2 & 3 closed
512KB	pins 1 & 2 closed

CPU SPEED CONFIGURATION
Speed	JP9	JP10	JP11
90MHz	Open	Closed	Open
100MHz	Closed	Open	Closed

BIOS CONFIGURATION
Setting	JP40	JP41
EPROM	pins 1 & 2 closed	pins 1 & 2 closed
Flash	pins 2 & 3 closed	pins 2 & 3 closed

PCI IRQ CONFIGURATION
Setting	JP30	JP31	JP32	JP33
IRQ9/PIRQ0	pins 1 & 2 closed	Open	Open	Open
IRQ9/PIRQ1	pins 2 & 3 closed	Open	Open	Open
IRQ10/PIRQ0	Open	pins 1 & 2 closed	Open	Open
IRQ10/PIRQ1	Open	pins 2 & 3 closed	Open	Open
IRQ14/PIRQ0	Open	Open	pins 1 & 2 closed	Open
IRQ14/PIRQ1	Open	Open	pins 2 & 3 closed	Open
IRQ15/PIRQ0	Open	Open	Open	pins 1 & 2 closed
IRQ15/PIRQ1	Open	Open	Open	pins 2 & 3 closed

PCI IRQ CONFIGURATION
Setting	JP34	JP35	JP36	JP37
IRQ9/PIRQ2	pins 1 & 2 closed	Open	Open	Open
IRQ9/PIRQ3	pins 2 & 3 closed	Open	Open	Open
IRQ10/PIRQ2	Open	pins 1 & 2 closed	Open	Open
IRQ10/PIRQ3	Open	pins 2 & 3 closed	Open	Open
IRQ14/PIRQ2	Open	Open	pins 1 & 2 closed	Open
IRQ14/PIRQ3	Open	Open	pins 2 & 3 closed	Open
IRQ15/PIRQ2	Open	Open	Open	pins 1 & 2 closed
IRQ15/PIRQ3	Open	Open	Open	pins 2 & 3 closed
