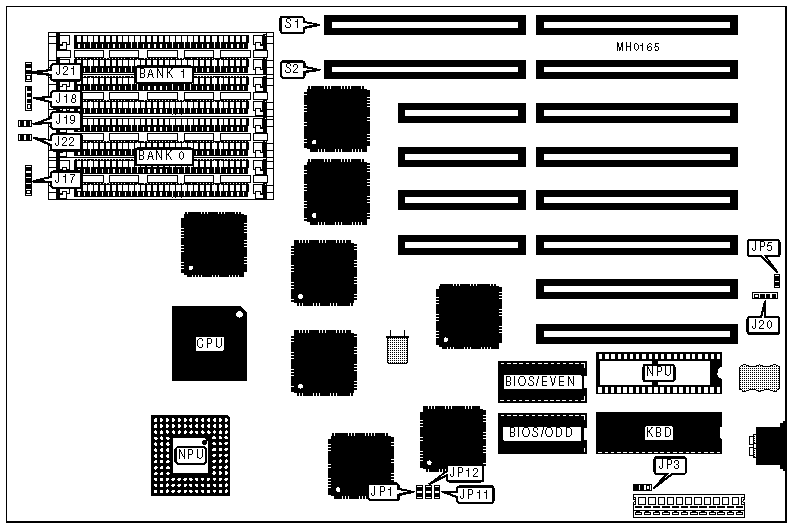

SY-013/SY-014 Motherboard Settings and Configuration

Processor	80386DX
Processor Speed	20/25MHz
Chip Set	C & T
Max. Onboard DRAM	8MB
Cache	None
BIOS	AMI
Dimensions	330.2mm x 218.4mm
I/O Options	32-bit external memory card slots (2)
NPU Options	80287/80387/3167

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	J17	Turbo switch	J21
Speaker	J18	Turbo LED	J22
Reset switch	J19	32-bit external memory card	S1
External battery	J20	32-bit external memory card	S2

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select monochrome	JP3	pins 2 & 3 closed
	Monitor type select color	JP3	pins 1 & 2 closed
»	Battery select internal	JP5	Open
	Battery select external	JP5	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9

NPU JUMPER CONFIGURATION
Type	JP1	JP11	JP12
80287	Closed	Open	Open
80387	Open	Closed	Closed
3167	Open	Open	Closed
