S26361-D858 Motherboard Settings and Configuration

SIEMENS NIXDORF INFORMATIONSSYSTEME AG

S26361-D858

Processor
Pentium
Processor Speed
75/90/100/120/133/150/166MHz
Chip Set
Unidentified
Video Chip Set
None
Maximum Onboard Memory
128MB (EDO supported)
Maximum Video Memory
None
Cache
256/512KB
BIOS
Unidentified
Dimensions
254mm x 218mm
I/O Options
Microphone connector, audio input connector, game/MIDI port, parallel port, serial ports (2), PS/2 mouse port, floppy drive interface, IDE interfaces (2), wave table connector, PC extension, soft off power supply connector, CD audio input connector, CD-ROM connector, front panel connector, soft on/off switch connector, remote on connector, riser slot, cache slot
NPU Options
None

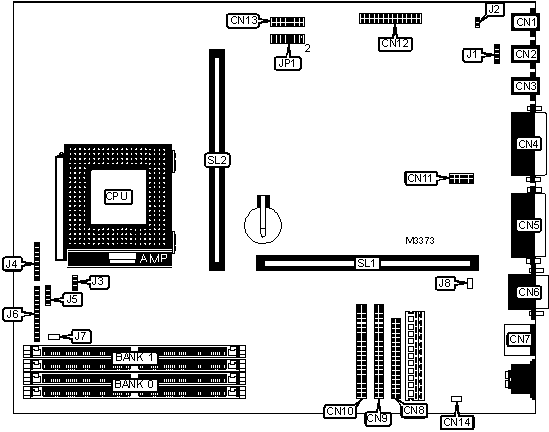

CONNECTIONS
Purpose
Location
Purpose
Location
Microphone connector (optional)
CN1
PC extension (optional)
CN13
Audio input connector (optional)
CN2
Soft off power supply connector
CN14
Speaker (optional)
CN3
CD audio input connector (optional)
J1
Game/MIDI port
CN4
CD-ROM connector (optional)
J2
Parallel port
CN5
Chassis fan power
J3
Serial port 1
CN6
Front panel connector
J4
PS/2 mouse port
CN7
Speaker
J5
Floppy drive interface
CN8
Front panel connector
J6
IDE interface
CN9
Soft on/off switch connector
J7
IDE interface
CN10
Remote on connector
J8
Serial port 2
CN11
Riser slot
SL1
Wave table connector
CN12
Cache slot
SL2

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Flash BIOS write protect disabled
JP1 pins 7 & 8
Open

Flash BIOS write protect enabled
JP1 pins 7 & 8
Closed
»
Password enabled
JP1 pins 9 & 10
Open

Password disabled
JP1 pins 9 & 10
Closed
»
BIOS normal operation
JP1 pins 11 & 12
Open

BIOS recovery mode
JP1 pins 11 & 12
Closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
None
16MB
(2) 2M x 36
None
16MB
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
24MB
(2) 1M x 36
(2) 2M x 36
32MB
(2) 4M x 36
None
32MB
(2) 2M x 36
(2) 2M x 36
40MB
(2) 4M x 36
(2) 1M x 36
40MB
(2) 1M x 36
(2) 4M x 36
48MB
(2) 4M x 36
(2) 2M x 36
48MB
(2) 2M x 36
(2) 4M x 36
64MB
(2) 8M x 36
None
64MB
(2) 4M x 36
(2) 4M x 36
72MB
(2) 8M x 36
(2) 1M x 36

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
72MB
(2) 1M x 36
(2) 8M x 36
80MB
(2) 8M x 36
(2) 2M x 36
80MB
(2) 2M x 36
(2) 8M x 36
96MB
(2) 8M x 36
(2) 4M x 36
96MB
(2) 4M x 36
(2) 8M x 36
128MB
(2) 8M x 36
(2) 8M x 36
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs.

CACHE CONFIGURATION
Size
SL2
256KB
256KB module installed
512KB
512KB module installed

CPU SPEED SELECTION
Speed
JP1 pins 1 & 2
JP1 pins 3 & 4
JP1 pins 5 & 6
JP1 pins 13 & 14
75MHz
Closed
Closed
Open
Open
90MHz
Closed
Open
Open
Open
100MHz
Open
Closed
Open
Open
120MHz
Closed
Open
Closed
Open
133MHz
Open
Closed
Closed
Open
150MHz
Closed
Open
Closed
Closed
166MHz
Open
Closed
Closed
Closed
