HOT-419 (VER.1.1) Motherboard Settings and Configuration

SHUTTLE COMPUTER INTERNATIONAL, INC.

HOT-419 (VER.1.1)

Processor
CX486S/SL80486SX/80486SX/80487SX/CX486S2/CX486DX/AM80486DX/ SL80486DX/80486DX/CX486DX2/80486DX2/80486DX4/P24D/ Pentium Overdrive
Processor Speed
20/25/33/40/50(internal)/50/66(internal)/75(internal)/100(internal)MHz
Chip Set
OPTI
Max. Onboard DRAM
128MB
Cache
64/128/256/512KB
BIOS
AMI
Dimensions
260mm x 218mm
I/O Options
32-bit VESA local bus slots (3), green PC connector
NPU Options
None

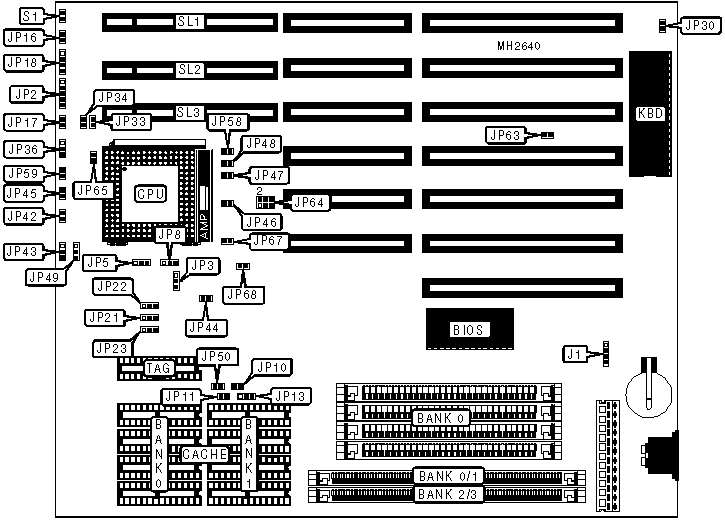

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
J1
Green PC connector
JP63
Power LED & keylock
JP2
Green PC connector
JP68
Turbo LED
JP16
Reset switch
S1
Turbo switch
JP17
32-bit VESA local bus slots
SL1 - SL3
Speaker
JP18

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Monitor type select color
JP30
Closed

Monitor type select monochrome
JP30
Open
»
ADS signal delay disabled
JP36
pins 2 & 3 closed

ADS signal delay enabled
JP36
pins 1 & 2 closed
»
CPU cache type select write back (P24T)
JP58
Closed

CPU cache type select write through (P24T)
JP58
Open
»
CPU cache type select write back (P24D)
JP59
Closed

CPU cache type select write through (P24D)
JP59
Open
»
Clock ratio select 2x
JP65
Closed

Clock ratio select 3x
JP65
Open

DRAM CONFIGURATION
Size
Bank 0
Bank 0/1
Bank 2/3
1MB
(4) 256K x 9
NONE
NONE
2MB
NONE
(1) 256K x 36
(1) 256K x 36
4MB
(4) 1M x 9
NONE
NONE
4MB
NONE
(1) 512K x 36
(1) 512K x 36
4MB
NONE
(1) 1M x 36
NONE
6MB
NONE
(1) 512K x 36
(1) 1M x 36
8MB
NONE
(1) 2M x 36
NONE
8MB
NONE
(1) 1M x 36
(1) 1M x 36
8MB
(4) 1M x 9
NONE
(1) 1M x 36
10MB
NONE
(1) 512K x 36
(1) 2M x 36
12MB
NONE
(1) 1M x 36
(1) 2M x 36
12MB
(4) 1M x 9
NONE
(1) 2M x 36
16MB
(4) 4M x 9
NONE
NONE
16MB
NONE
(1) 2M x 36
(1) 2M x 36
16MB
NONE
(1) 4M x 36
NONE
20MB
(4) 1M x 9
NONE
(1) 4M x 36
20MB
NONE
(1) 1M x 9
(1) 4M x 36
32MB
NONE
(1) 4M x 36
(1) 4M x 36
32MB
(4) 4M x 9
NONE
(1) 4M x 36
64MB
(4) 16M x 9
NONE
NONE
64MB
NONE
(1) 8M x 36
(1) 8M x 36
64MB
NONE
(1) 16M x 36
NONE
128MB
NONE
(1) 16M x 36
(1) 16M x 36
128MB
(4) 16M x 9
NONE
(1) 16M x 36

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG
64KB
(4) 8K x 8
(4) 8K x 8
(1) 8K x 8
128KB
(4) 32K x 8
NONE
(1) 32K x 8
256KB
(4) 32K x 8
(4) 32K x 8
(1) 32K x 8
512KB
(4) 128K x 8
(4) 32K x 8
(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size
JP10
JP11
JP13
JP50
JP67
64KB
Open
Open
2 & 3
Open
Closed
128KB
Open
Closed
1 & 2
Open
Open
256KB
Closed
Closed
2 & 3
Open
Closed
512KB
Closed
Closed
1 & 2
Closed
Open
Note: Pins designated should be in closed position.

CPU TYPE CONFIGURATION
Type
JP3
JP5
JP8
JP42
JP43
JP44
CX486S
Open
Open
2 & 3
2 & 3
1 & 2
Open
SL80486SX
Open
Open
2 & 3
1 & 2
1 & 2
Closed
80486SX
1 & 2
2 & 3
1 & 2
Open
1 & 2
Open
80487SX
1 & 2
2 & 3
1 & 2
Open
1 & 2
Open
CX486S2
Open
Open
2 & 3
2 & 3
2 & 3
Open
CX486DX
1 & 2
2 & 3
1 & 2
2 & 3
1 & 2
Open
AM80486DX
1 & 2
2 & 3
1 & 2
Open
1 & 2
Open
SL80486DX
1 & 2
2 & 3
1 & 2
1 & 2
1 & 2
Closed
80486DX
1 & 2
2 & 3
1 & 2
Open
1 & 2
Open
CX486DX2
1 & 2
2 & 3
1 & 2
2 & 3
2 & 3
Open
80486DX2
1 & 2
2 & 3
1 & 2
Open
1 & 2
Open
80486DX4
1 & 2
2 & 3
1 & 2
1 & 2
1 & 2
Closed
P24D
2 & 3
2 & 3
1 & 2
Open
1 & 2
Open
P24T
2 & 3
2 & 3
1 & 2
Open
1 & 2
Open
Note: Pins designated should be in closed position.

CPU TYPE CONFIGURATION (CON’T)
Type
JP45
JP46
JP47
JP48
JP49
CX486S
Open
Open
Closed
Closed
1 & 2
SL80486SX
Closed
Closed
Open
Open
1 & 2
80486SX
Open
Open
Open
Open
1 & 2
80487SX
Open
Open
Open
Open
1 & 2
CX486S2
Open
Open
Closed
Closed
2 & 3
CX486DX
Open
Open
Closed
Closed
1 & 2
AM80486DX
Open
Open
Open
Open
1 & 2
SL80486DX
Closed
Closed
Open
Open
1 & 2
80486DX
Open
Open
Open
Open
1 & 2
CX486DX2
Open
Open
Closed
Closed
1 & 2
80486DX2
Open
Open
Open
Open
1 & 2
80486DX4
Closed
Closed
Open
Open
1 & 2
P24D
Open
Open
Open
Open
1 & 2
P24T
Open
Open
Open
Open
1 & 2
Note: Pins designated should be in closed position.

CPU SPEED CONFIGURATION
Speed
JP21
JP22
JP23
20MHz
pins 2 & 3 closed
pins 2 & 3 closed
pins 1 & 2 closed
25MHz
pins 2 & 3 closed
pins 1 & 2 closed
pins 2 & 3 closed
33MHz
pins 1 & 2 closed
pins 2 & 3 closed
pins 2 & 3 closed
40MHz
pins 2 & 3 closed
pins 1 & 2 closed
pins 1 & 2 closed
50iMHz
pins 2 & 3 closed
pins 1 & 2 closed
pins 2 & 3 closed
50MHz
pins 1 & 2 closed
pins 2 & 3 closed
pins 1 & 2 closed
66iMHz
pins 1 & 2 closed
pins 2 & 3 closed
pins 2 & 3 closed
75iMHz
Open
pins 2 & 3 closed
pins 2 & 3 closed
100iMHz
pins 2 & 3 closed
Open
pins 2 & 3 closed
100iMHz
pins 2 & 3 closed
Open
Open

CPU VOLTAGE CONFIGURATION
Voltage
JP64
3.3v
pins 3 & 5, 4 & 6 closed
5v
pins 1 & 3, 2 & 4 closed

VESA WAIT STATE CONFIGURATION
Wait states
JP33
0 wait states
Open
1 wait state
Closed

BUS SPEED CONFIGURATION
CPU speed
JP34
<= 33MHz
Open
> 33MHz
Closed
