DPC-4434 Motherboard Settings and Configuration

RAVEN SERVICE WORKS

DPC-4434

Processor
80486SX/80487SX/80486DX/ODP486SX/80486DX2
Processor Speed
20/25/33/50(internal)/50/66(internal) MHz
Chip Set
Unknown
Max. Onboard DRAM
32MB
Cache
None
BIOS
Unknown
Dimensions
330mm x 218mm
I/O Options
Floppy drive interface, IDE interface, multi-function connector (power LED, turbo SW1itch, keylock, and reset), parallel port, PS/2 keyboard connector, PS/2 mouse port, serial port,VGA feature connector, VGA port
NPU Options
None

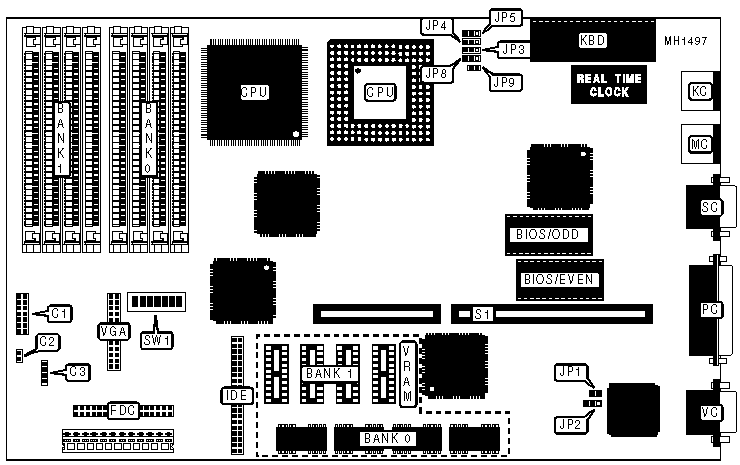

CONNECTIONS
Purpose
Location
Purpose
Location
Multi-function connector
C1
PS/2 mouse port
MC
Speaker
C2
Parallel port
PC
IDE interface LED
C3
Riser Card
S1
Floppy drive interface
FDC
Serial port
SC
IDE interface
IDE
VGA port
VC
PS/2 keyboard port
KC
VGA feature connector
VGA

USER CONFIGURABLE SETTINGS
Function
Jumper/Switch
Position
»
PS/2 mouse port enabled (IRQ12)
JP5
pins 1 & 2 closed

PS/2 mouse port disabled
JP5
pins 2 & 3 closed
»
Monitor type select color
SW1/2
On

Monitor type select monochrome
SW1/2
Off

DRAM CONFIGURAPTION
Size
Bank 0
Bank 1
1MB
(4) 256K x 9
NONE
2MB
(4) 256K x 9
(4) 256K x 9
4MB
(4) 1M x 9
NONE
5MB
(4) 1M x 9
(4) 256K x 9
8MB
(4) 1M x 9
(4) 1M x 9
16MB
(4) 4M x 9
NONE
17MB
(4) 4M x 9
(4) 256K x 9
20MB
(4) 4M x 9
(4) 1M x 9
32MB
(4) 4M x 9
(4) 4M x 9

ONBOARD VIDEO CONFIGURATION
VRAM size
Bank 0
Bank 1
SW1/1
SW1/3
»
512KB
512KB
None
On
On

1024KB
512KB
(4) 256K x 4
On
Off

Disabled
N/A
N/A
Off
N/A

800 X 600 VIDEO MODE CONFIGURATION
Refresh Rate
Mode
SW1/6
SW1/7
»
56Hz
Interlaced
Off
Off

60Hz
Interlaced
On
Off

70Hz
Interlaced
Off
On

72Hz
Interlaced
On
On

1024 X 768 VIDEO MODE CONFIGURATION
Refresh Rate
Mode
SW1/4
SW1/5
»
56Hz
Interlaced
Off
Off

60Hz
Non-interlaced
On
Off

70Hz
Non-interlaced
Off
On

72Hz
Non-interlaced
On
On

RAMDAC CONFIGURATION
RAMDAC type
JP1
JP2
BT478, BT476, KDA0478, KDA0476
Closed
pins 2 & 3 closed
SC11483, SC11487 (Hi-Color)
Closed
pins 1 & 2 closed
IMS178
Open
pins 1 & 2 closed

CPU CONFIGURATION
CPU
JP3
JP4
JP8
JP9
80486SX
Open
pins 1 & 2 closed
pins 2 & 3 closed
Open
80487SX/ODP486SX
pins 2 & 3 closed
pins 2 & 3 closed
pins 1 & 2 closed
Closed
80486DX/DX2
pins 1 & 2 closed
pins 1 & 2 closed
pins 1 & 2 closed
Closed
