TRUMP-386 MAINBOARD Motherboard Settings and Configuration

PC BRAND

TRUMP-386 MAINBOARD

Processor
80386DX
Processor Speed
25MHz
Chip Set
C & T
Max. Onboard DRAM
None
Cache
None
BIOS
Unidentified
Dimensions
330mm x 218mm
I/O Options
32-bit external memory card slots (2)
NPU Options
80287/80387

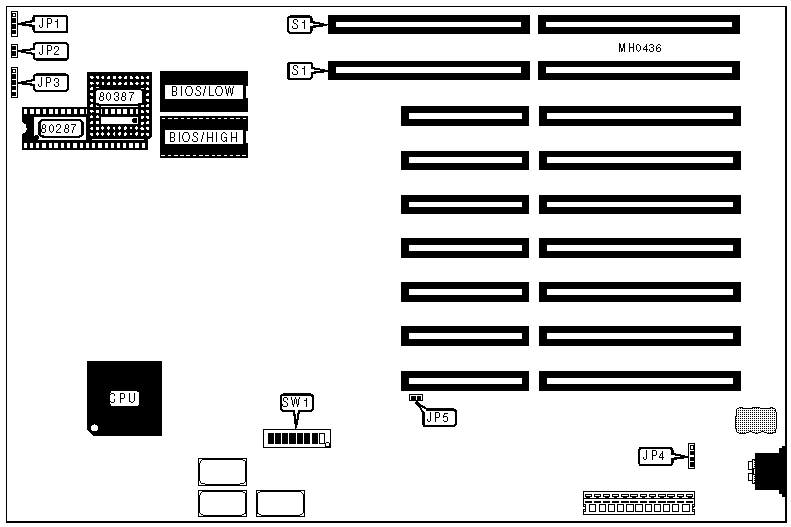

CONNECTIONS
Purpose
Location
Purpose
Location
Speaker
JP1
External battery
JP4
Reset switch
JP2
Turbo LED
JP5
Power LED & keylock
JP3
32-bit external memory cards
S1

USER CONFIGURABLE SETTINGS
Function
Switch
Position
»
Battery type select internal
SW1/3
On

Battery type select external
SW1/3
Off
»
Monitor type select color
SW1/6
On

Monitor type select monochrome
SW1/6
Off

POWER SIGNAL CONFIGURATION
Setting
SW1/1
SW1/2
Power good signal detect from power supply
On
Off
Power good signal detect from board
Off
On

CPU SPEED CONFIGURATION
Speed
SW1/7
SW1/8
20MHz
On
Off
25MHz
Off
On

NPU CONFIGURATION
Type
SW1/4
SW1/5
None
On
Off
80287
On
Off
80387
Off
On

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
2MB
(18) 44256
NONE
NONE
NONE
4MB
(18) 44256
(18) 44256
NONE
NONE
6MB
(18) 44256
(18) 44256
(18) 411000
NONE
8MB
(18) 44256
(18) 44256
(18) 411000
(18) 411000
8MB
(18) 441000
NONE
NONE
NONE
10MB
(18) 441000
(18) 411000
NONE
NONE
12MB
(18) 441000
(18) 411000
(18) 411000
NONE
14MB
(18) 441000
(18) 411000
(18) 411000
(18) 411000
16MB
(18) 441000
(18) 441000
NONE
NONE
Note:Two memory cards may be installed.
On the first card, SW2/switches 1-4 should be closed, and SW2/switches 5-8 should be open.
On the second card, SW2/switches 1-4 should be open, and SW2/switches 5-8 should be closed.
