PB500/TMAN PB8810 Motherboard Settings and Configuration






PACKARD BELL

PB500/TMAN PB8810

Processor

8088

Processor Speed

10MHz

Chip Set

None

Max. Onboard DRAM

768KB

Cache

None

BIOS

Phoenix

Dimensions

286mm x 218mm

I/O Options

Parallel port, serial port, floppy drive interface

NPU Options

8087

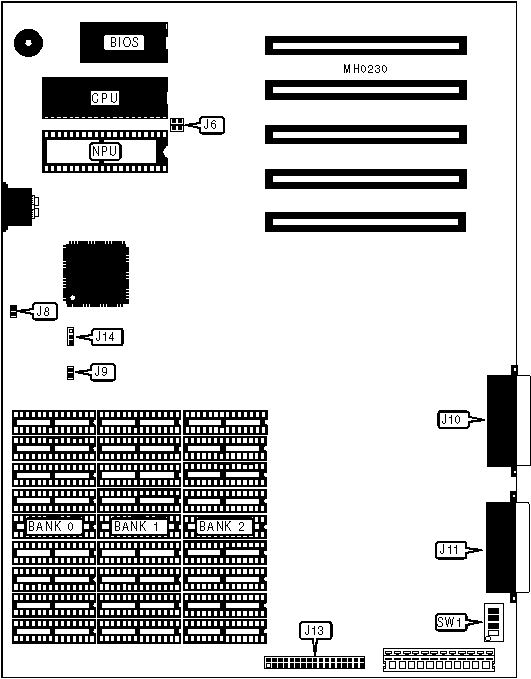

CONNECTIONS

Purpose

Location

Purpose

Location

Reset switch

J8

Floppy interface

J13

Parallel port

J10

Turbo LED

J14

Serial port

J11



USER CONFIGURABLE SETTINGS

Function

Jumper/Switch

Position

BIOS type select 27512

J6

pins 1 & 2, 3 & 4 closed



BIOS type select 27256

J6

pins 1 & 2 closed



BIOS type select 2764/27128

J6

Open

Factory configured - do not alter

J9

N/A

Serial port (COM1) enabled

SW1/1

Off



Serial port (COM2) enabled

SW1/1

On

Parallel port (LPT1) enabled

SW1/2

Off



Parallel port (LPT2) enabled

SW1/2

On

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

256KB

(9) 41256

NONE

NONE

512KB

(9) 41256

(9) 41256

NONE

768KB

(9) 41256

(9) 41256

(9) 41256

VIDEO CONFIGURATION

Setting

SW1/3

SW1/4

Auto detect

On

On

40 x 25 (color)

On

Off

80 x 25 (color)

Off

On

80 x 25 (monochrome)

Off

Off
