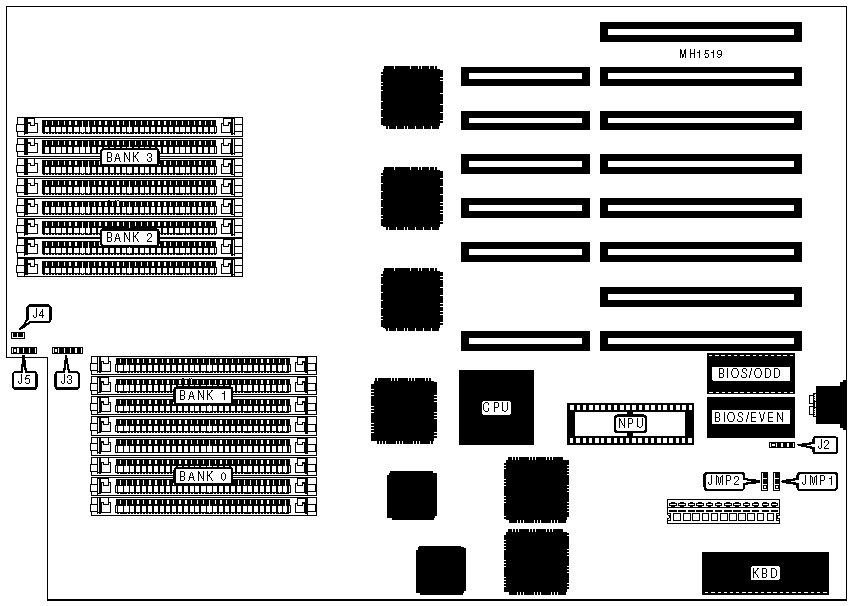

PB386-16 SUPREME (VERSION 1) Motherboard Settings and Configuration

Processor	80386DX
Processor Speed	16MHz
Chip Set	C & T
Max. Onboard DRAM	16MB
Cache	None
BIOS	Award
Dimensions	355mm x 305mm
I/O Options	None
NPU Options	80287

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J2	Reset	J4
Power LED & keylock	J3	Speaker	J5

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select color	JMP1	pins 1 & 2 closed
	Monitor type select monochrome	JMP1	pins 2 & 3 closed
»	NPU disabled	JMP2	pins 1 & 2 closed
	NPU enabled	JMP2	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(4) 256K x 9	NONE	NONE	NONE
2MB	(4) 256K x 9	(4) 256K x 9	NONE	NONE
4MB	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE	NONE	NONE
8MB	(4) 1M x 9	(4) 1M x 9	NONE	NONE
10MB	(4) 256K x 9	(4) 256K x 9	(4) 1M x 9	(4) 1M x 9
16MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9
