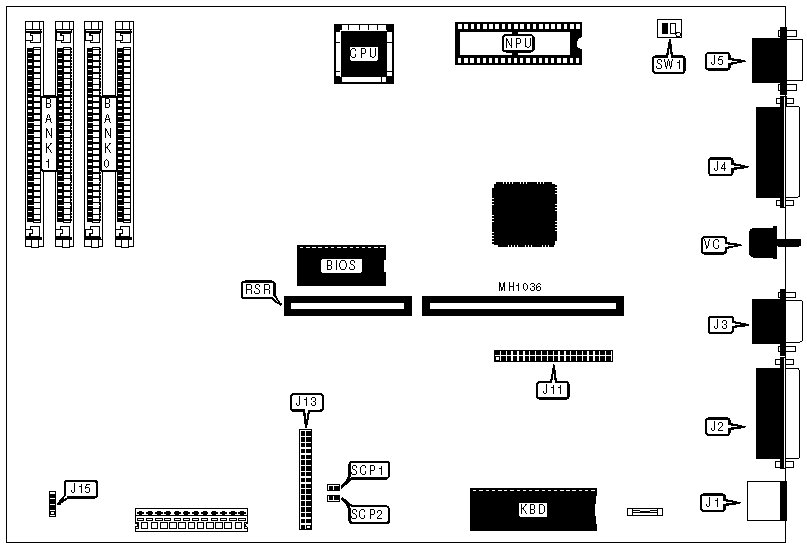

Class 3205 Motherboard Settings and Configuration

Processor	80286
Processor Speed	12/16MHz
Chip Set	SMD
Max. Onboard DRAM	16MB
Cache	None
BIOS	NCR
Dimensions	330mm x 218mm
I/O Options	Floppy drive interface, IDE interface, parallel port, serial ports (2), VGA port
NPU Options	80287

CONNECTIONS
Purpose	Location	Purpose	Location
Keyboard	J1	IDE interface	J11
Serial port 2	J2	Floppy drive interface	J13
Serial port 1	J3	Power LED & IDE interface LED	J15
Parallel port	J4	Riser card	RSR
VGA interface	J5	Speaker volume control	VC

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	Password check enabled	SCP1 & SCP2	Open
	Password clear	SCP1 & SCP2	Closed
»	VGA interface enabled	SW1/1	Off
	VGA interface disabled	SW1/1	On
»	Monitor type select color	SW1/2	On
	Monitor type select monochrome	SW1/2	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9
8MB	(2) 4M x 9	NONE
10MB	(2) 4M x 9	(2) 1M x 9
16MB	(2) 4M x 9	(2) 4M x 9
