KP 486EDX/SX Motherboard Settings and Configuration

Processor	80486SX/80487SX/80486DX
Processor Speed	16/20/25/33MHz
Chip Set	Intel
Max. Onboard DRAM	256MB
Cache	64/128KB (on DX CPU/NPU module only)
BIOS	Award
Dimensions	330mm x 218mm
I/O Options	Proprietary CPU/NPU card slot
NPU Options	4167 (on external CPU/NPU module)

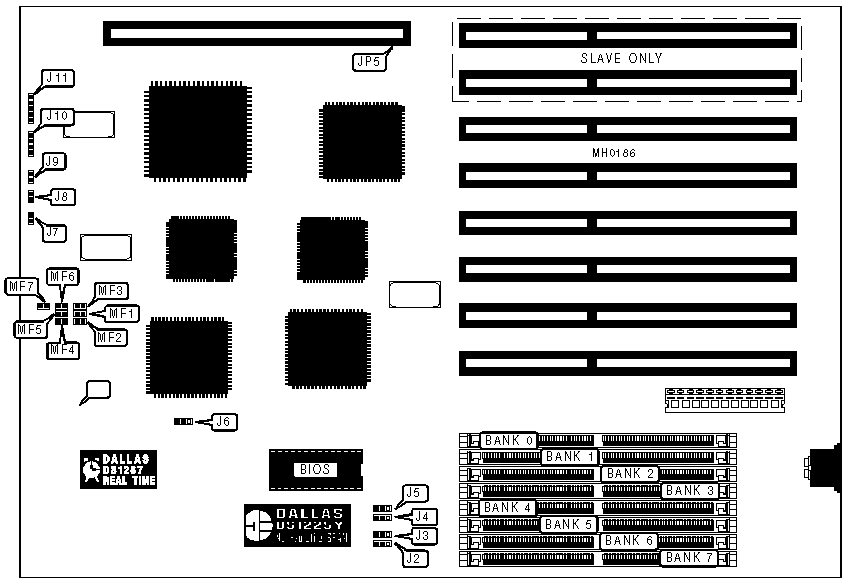

CONNECTIONS
Purpose	Location	Purpose	Location
Reset switch	J7	Speaker	J10
Turbo switch	J8	Turbo LED	J11
Power LED & keylock	J9	Proprietary CPU card	JP5

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select color	J6	pins 1 & 2 closed
	Monitor type select monochrome	J6	pins 2 & 3 closed
»	Factory configured - do not alter	MF1	Open
»	EISA bus posted write disabled	MF2	Open
	EISA bus posted write enabled	MF2	Closed
»	Bus speed select 3-11 wait states between I/O cycles	MF3	Closed
»	Bus speed select 0 wait states between I/O cycles	MF3	Open
»	Factory configured - do not alter	MF4	Open
»	Factory configured - do not alter	MF5	Closed
»	Factory configured - do not alter	MF6	Open
»	Diagnostics mode disabled	MF7	Open
	Diagnostics mode enabled	MF7	Closed

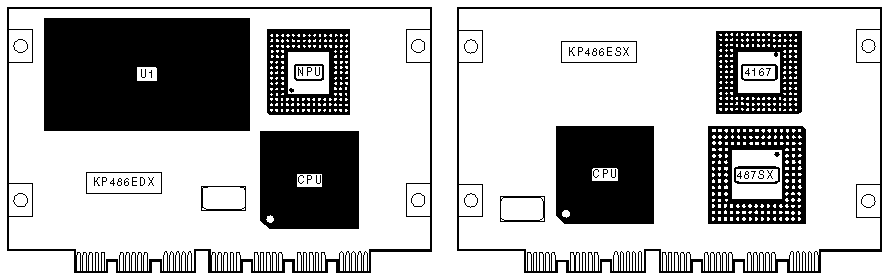

CACHE CONFIGURATIONS
Size	Cache module installed at U1
64KB	82485MA
128KB	82485MB
Note:Only the KP 486EDX has a socket for the 82485M cache module. The KP 486EDX system comes standard with the 128KB 82485MB, unless specially ordered.

DRAM CONFIGURATION
Size	Bank0	Bank1	Bank2	Bank3	Bank4	Bank5	Bank6	Bank7	J2&J3	J4&J5
1MB	256K	NONE	NONE	NONE	NONE	NONE	NONE	NONE	1 & 2	1 & 2
2MB	256K	256K	NONE	NONE	NONE	NONE	NONE	NONE	1 & 2	1 & 2
2MB	512K	NONE	NONE	NONE	NONE	NONE	NONE	NONE	2 & 3	1 & 2
3MB	256K	256K	256K	NONE	NONE	NONE	NONE	NONE	1 & 2	1 & 2
4MB	256K	256K	256K	256K	NONE	NONE	NONE	NONE	1 & 2	1 & 2
5MB	256K	256K	256K	256K	256K	NONE	NONE	NONE	1 & 2	1 & 2
6MB	256K	256K	256K	256K	256K	256K	NONE	NONE	1 & 2	1 & 2
6MB	256K	256K	256K	256K	512K	NONE	NONE	NONE	1 & 2	1 & 2
7MB	256K	256K	256K	256K	256K	256K	256K	NONE	1 & 2	1 & 2
8MB	256K	256K	256K	256K	256K	256K	256K	256K	1 & 2	1 & 2
8MB	256K	256K	256K	256K	512K	512K	NONE	NONE	1 & 2	2 & 3
8MB	256K	256K	256K	256K	1M	NONE	NONE	NONE	1 & 2	1 & 2
DRAM CONFIGURATION 4MB 512K 512K NONE NONE NONE NONE NONE NONE 2 & 3 1 & 2 4MB 1M NONE NONE NONE NONE NONE NONE NONE 1 & 2 1 & 2 6MB 512K 512K 512K NONE NONE NONE NONE NONE 2 & 3 1 & 2 8MB 512K 512K 512K 512K NONE NONE NONE NONE 2 & 3 1 & 2 9MB 512K 512K 512K 512K 256K NONE NONE NONE 2 & 3 1 & 2 10MB 512K 512K 512K 512K 256K 256K NONE NONE 2 & 3 1 & 2 10MB 512K 512K 512K 512K 512K NONE NONE NONE 2 & 3 2 & 3 11MB 512K 512K 512K 512K 256K 256K 256K NONE 2 & 3 1 & 2 12MB 512K 512K 512K 512K 256K 256K 256K 256K 2 & 3 1 & 2 12MB 512K 512K 512K 512K 512K 512K NONE NONE 2 & 3 2 & 3 12MB 512K 512K 512K 512K 1M NONE NONE NONE 2 & 3 1 & 2 16MB 512K 512K 512K 512K 1M 1M NONE NONE 2 & 3 1 & 2 16MB 512K 512K 512K 512K 2M NONE NONE NONE 2 & 3 2 & 3 8MB 1M 1M NONE NONE NONE NONE NONE NONE 1 & 2 1 & 2 8MB 2M NONE NONE NONE NONE NONE NONE NONE 2 & 3 1 & 2 12MB 1M 1M 1M NONE NONE NONE NONE NONE 1 & 2 1 & 2 16MB 1M 1M 1M 1M NONE NONE NONE NONE 1 & 2 1 & 2 17MB 1M 1M 1M 1M 256K NONE NONE NONE 1 & 2 1 & 2 18MB 1M 1M 1M 1M 256K 256K NONE NONE 1 & 2 1 & 2 18MB 1M 1M 1M 1M 512K NONE NONE NONE 1 & 2 2 & 3 19MB 1M 1M 1M 1M 256K 256K 256K NONE 1 & 2 1 & 2 20MB 1M 1M 1M 1M 256K 256K 256K 256K 1 & 2 1 & 2 20MB 1M 1M 1M 1M 512K 512K NONE NONE 1 & 2 2 & 3 20MB 1M 1M 1M 1M 1M NONE NONE NONE 1 & 2 1 & 2 24MB 1M 1M 1M 1M 1M 1M NONE NONE 1 & 2 1 & 2 24MB 1M 1M 1M 1M 2M NONE NONE NONE 1 & 2 2 & 3 32MB 1M 1M 1M 1M 2M 2M NONE NONE 1 & 2 2 & 3 32MB 1M 1M 1M 1M 4M NONE NONE NONE 1 & 2 1 & 2 16MB 2M 2M NONE NONE NONE NONE NONE NONE 2 & 3 1 & 2 16MB 4M NONE NONE NONE NONE NONE NONE NONE 1 & 2 1 & 2 24MB 2M 2M 2M NONE NONE NONE NONE NONE 2 & 3 1 & 2 32MB 2M 2M 2M 2M NONE NONE NONE NONE 2 & 3 1 & 2 33MB 2M 2M 2M 2M 256K NONE NONE NONE 2 & 3 1 & 2 34MB 2M 2M 2M 2M 256K 256K NONE NONE 2 & 3 1 & 2 34MB 2M 2M 2M 2M 512K NONE NONE NONE 2 & 3 2 & 3 35MB 2M 2M 2M 2M 256K 256K 256K NONE 2 & 3 1 & 2 36MB 2M 2M 2M 2M 256K 256K 256K 256K 2 & 3 1 & 2 36MB 2M 2M 2M 2M 512K 512K NONE NONE 2 & 3 2 & 3 36MB 2M 2M 2M 2M 1M NONE NONE NONE 2 & 3 1 & 2 40MB 2M 2M 2M 2M 1M 1M NONE NONE 2 & 3 1 & 2 40MB 2M 2M 2M 2M 2M NONE NONE NONE 2 & 3 2 & 3 48MB 2M 2M 2M 2M 2M 2M NONE NONE 2 & 3 2 & 3 48MB 2M 2M 2M 2M 4M NONE NONE NONE 2 & 3 1 & 2 DRAM CONFIGURATION (CONTINUED) 64MB 2M 2M 2M 2M 4M 4M NONE NONE 2 & 3 1 & 2 64MB 2M 2M 2M 2M 8M NONE NONE NONE 2 & 3 2 & 3 32MB 4M 4M NONE NONE NONE NONE NONE NONE 1 & 2 1 & 2 32MB 8M NONE NONE NONE NONE NONE NONE NONE 2 & 3 1 & 2 48MB 4M 4M 4M NONE NONE NONE NONE NONE 1 & 2 1 & 2 64MB 4M 4M 4M 4M NONE NONE NONE NONE 1 & 2 1 & 2 65MB 4M 4M 4M 4M 256K NONE NONE NONE 1 & 2 1 & 2 66MB 4M 4M 4M 4M 256K 256K NONE NONE 1 & 2 1 & 2 66MB 4M 4M 4M 4M 512K NONE NONE NONE 1 & 2 2 & 3 67MB 4M 4M 4M 4M 256K 256K 256K NONE 1 & 2 1 & 2 68MB 4M 4M 4M 4M 256K 256K 256K 256K 1 & 2 1 & 2 68MB 4M 4M 4M 4M 512K 512K NONE NONE 1 & 2 2 & 3 68MB 4M 4M 4M 4M 1M NONE NONE NONE 1 & 2 1 & 2 72MB 4M 4M 4M 4M 1M 1M NONE NONE 1 & 2 1 & 2 72MB 4M 4M 4M 4M 2M NONE NONE NONE 1 & 2 2 & 3 80MB 4M 4M 4M 4M 2M 2M NONE NONE 1 & 2 2 & 3 80MB 4M 4M 4M 4M 4M NONE NONE NONE 1 & 2 1 & 2 96MB 4M 4M 4M 4M 4M 4M NONE NONE 1 & 2 1 & 2 96MB 4M 4M 4M 4M 8M NONE NONE NONE 1 & 2 2 & 3 128MB 4M 4M 4M 4M 8M 8M NONE NONE 1 & 2 2 & 3 64MB 8M 8M NONE NONE NONE NONE NONE NONE 2 & 3 1 & 2 96MB 8M 8M 8M NONE NONE NONE NONE NONE 2 & 3 1 & 2 128MB 8M 8M 8M 8M NONE NONE NONE NONE 2 & 3 1 & 2 129MB 8M 8M 8M 8M 256K NONE NONE NONE 2 & 3 1 & 2 130MB 8M 8M 8M 8M 256K 256K NONE NONE 2 & 3 1 & 2 130MB 8M 8M 8M 8M 512K NONE NONE NONE 2 & 3 2 & 3 131MB 8M 8M 8M 8M 256K 256K 256K NONE 2 & 3 1 & 2 132MB 8M 8M 8M 8M 256K 256K 256K 256K 2 & 3 1 & 2 132MB 8M 8M 8M 8M 512K 512K NONE NONE 2 & 3 2 & 3 132MB 8M 8M 8M 8M 1M NONE NONE NONE 2 & 3 1 & 2 136MB 8M 8M 8M 8M 1M 1M NONE NONE 2 & 3 1 & 2 136MB 8M 8M 8M 8M 2M NONE NONE NONE 2 & 3 2 & 3 144MB 8M 8M 8M 8M 2M 2M NONE NONE 2 & 3 2 & 3 144MB 8M 8M 8M 8M 4M NONE NONE NONE 2 & 3 1 & 2 160MB 8M 8M 8M 8M 4M 4M NONE NONE 2 & 3 1 & 2 160MB 8M 8M 8M 8M 8M NONE NONE NONE 2 & 3 2 & 3 192MB 8M 8M 8M 8M 8M 8M NONE NONE 2 & 3 2 & 3 224MB 8M 8M 8M 8M 8M 8M 8M NONE 2 & 3 2 & 3 256MB 8M 8M 8M 8M 8M 8M 8M 8M 2 & 3 2 & 3 Note:Congratulations! You have reached the end of this table. The 512K x 36, 2M x 36, and 8M x 36 SIMMs are double-sided SIMMs. CACHE CONFIGURATIONS Size Cache module installed at U1 64KB 82485MA 128KB 82485MB Note:Only the KP 486EDX has a socket for the 82485M cache module. The KP 486EDX system comes standard with the 128KB 82485MB, unless specially ordered.       Search My Books Discover Free Online Books [ Privacy Policy | Terms of Use | About Us | Search ] © 1999-2021 StasoSphere.com
