MS-5144 Motherboard Settings and Configuration

MICRO-STAR INTERNATIONAL CO., LTD.

MS-5144

Processor
CX M1/AM K5/Pentium
Processor Speed
90/100/120/133/150/166/200MHz
Chip Set
SIS
Video Chip Set
None
Maximum Onboard Memory
384MB (EDO supported)
Maximum Video Memory
None
Cache
256/512KB
BIOS
AMI/Award
Dimensions
250mm x 220mm
I/O Options
32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connector
NPU Options
None

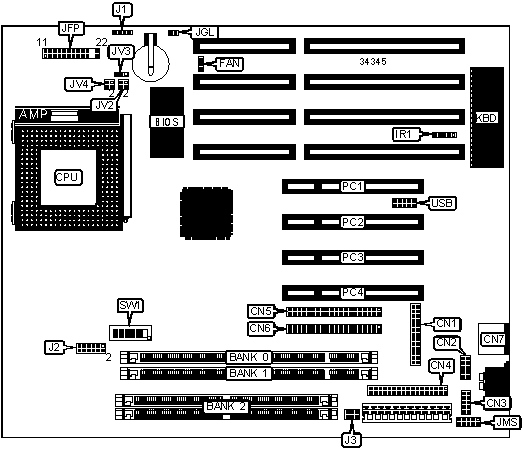

CONNECTIONS
Purpose
Location
Purpose
Location
Parallel port
CN1
Power LED & keylock
JFP/pins 1 - 5
Serial port 2
CN2
Speaker
JFP/pins 7 - 10
Serial port 1
CN3
Turbo LED
JFP/pins 12 & 13
Floppy drive interface
CN4
Reset switch
JFP/pins 19 & 20
IDE interface 2
CN5
IDE interface LED
JFP/pins 21 & 22
IDE interface 1
CN6
Green PC LED
JGL
PS/2 mouse port
CN7
PS/2 mouse interface
JMS
Chassis fan power
FAN
32-bit PCI slots
PC1 – PC4
IR connector
IR1
USB connector
USB

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Factory configured - do not alter
J1
Unidentified
»
Factory configured - do not alter
J3
Unidentified

DIMM/DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
8MB
(1) 1M x 64
None
None
12MB
(1) 1M x 64
None
(2) 512K x 36
16MB
(1) 2M x 64
None
None
16MB
(1) 1M x 64
(1) 1M x 64
None
16MB
(1) 1M x 64
None
(2) 1M x 36
20MB
(1) 2M x 64
None
(2) 512K x 36
24MB
(1) 2M x 64
(1) 1M x 64
None
24MB
(1) 1M x 64
None
(2) 2M x 36
32MB
(1) 4M x 64
None
None
32MB
(1) 2M x 64
(1) 2M x 64
None
32MB
(1) 2M x 64
None
(2) 2M x 36
36MB
(1) 4M x 64
None
(2) 512K x 36
40MB
(1) 4M x 64
(1) 1M x 64
None
40MB
(1) 1M x 64
None
(2) 4M x 36
40MB
(1) 4M x 64
None
(2) 1M x 36
48MB
(1) 4M x 64
(1) 2M x 64
None
48MB
(1) 2M x 64
None
(2) 4M x 36
48MB
(1) 4M x 64
None
(2) 2M x 36
64MB
(1) 8M x 64
None
None
64MB
(1) 4M x 64
(1) 4M x 64
None
64MB
(1) 4M x 64
None
(2) 4M x 36
68MB
(1) 8M x 64
None
(2) 512K x 36
72MB
(1) 8M x 64
(1) 1M x 64
None
72MB
(1) 1M x 64
None
(2) 8M x 36
72MB
(1) 8M x 64
None
(2) 1M x 36

DIMM/DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
80MB
(1) 8M x 64
(1) 2M x 64
None
80MB
(1) 2M x 64
None
(2) 8M x 36
80MB
(1) 8M x 64
None
(2) 2M x 36
96MB
(1) 8M x 64
(1) 4M x 64
None
96MB
(1) 8M x 64
None
(2) 4M x 36
96MB
(1) 4M x 64
None
(2) 8M x 36
128MB
(1) 16M x 64
None
None
128MB
(1) 8M x 64
(1) 8M x 64
None
128MB
(1) 8M x 64
None
(2) 8M x 36
132MB
(1) 16M x 64
None
(2) 512K x 36
136MB
(1) 1M x 64
None
(2) 16M x 36
136MB
(1) 16M x 64
None
(2) 1M x 36
144MB
(1) 2M x 64
None
(2) 16M x 36
144MB
(1) 16M x 64
None
(2) 2M x 36
160MB
(1) 4M x 64
None
(2) 16M x 36
160MB
(1) 16M x 64
None
(2) 4M x 36
192MB
(1) 8M x 64
None
(2) 16M x 36
192MB
(1) 16M x 64
None
(2) 8M x 36
256MB
(1) 32M x 64
None
None
256MB
(1) 16M x 64
(1) 16M x 64
None
256MB
(1) 16M x 64
None
(2) 16M x 36
384MB
(1) 32M x 64
None
(2) 16M x 36
Note: Board accepts EDO memory. Banks 0 & 1 are interchangeable.

DIMM VOLTAGE CONFIGURATION
Voltage
J2
3.3v
Pins 1 & 2, 3 & 4 closed
5v
Pins 9 & 10, 11 & 12 closed

CACHE CONFIGURATION
Note: The location and chip sizes are unidentified.

CPU SPEED SELECTION (CYRIX)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
150MHz
60MHz
2x
On
Off
On
Off
Off
On
166MHz
66MHz
2x
On
Off
Off
Off
Off
On
200MHz
66MHz
2x
On
Off
Off
On
Off
On

CPU SPEED SELECTION (AMD)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
90MHz
60MHz
1.5x
Off
Off
On
Off
Off
Off
100MHz
66MHz
1.5x
Off
Off
Off
Off
Off
Off
120MHz
60MHz
1.5x
Off
Off
On
Off
Off
Off
133MHz
66MHz
1.5x
Off
Off
Off
Off
Off
Off
166MHz
66MHz
2.5x
On
On
Off
Off
Off
Off

CPU SPEED SELECTION (INTEL)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
90MHz
60MHz
1.5x
Off
Off
On
Off
Off
Off
100MHz
66MHz
1.5x
Off
Off
Off
Off
Off
Off
120MHz
60MHz
2x
On
Off
On
Off
Off
Off
133MHz
66MHz
2x
On
Off
Off
Off
Off
Off
150MHz
60MHz
2.5x
On
On
On
Off
Off
Off
166MHz
66MHz
2.5x
On
On
Off
Off
Off
Off
200MHz
66MHz
3x
Off
On
Off
Off
Off
Off

CPU VOLTAGE SELECTION (SINGLE)
Voltage
JV2
JV3
JV4
3.38v
Open
Pins 2 & 3 closed
Open
3.52v
Pins 1 & 2 closed
Pins 2 & 3 closed
Open

CPU VOLTAGE SELECTION (DUAL)
Voltage
V core
JV2
JV3
JV4
3.3v
2.8v
Pins 1 & 2, 3 & 4 closed
Pins 1 & 2 closed
Open
