MS-6119 Motherboard Settings and Configuration

MICRO-STAR INTERNATIONAL CO., LTD.

MS-6119

Device Type
Mainboard
Processor
Pentium II
Processor Speed
200/233/266/300/333/350/400/450MHz
Chip Set
Intel 440BX
Maximum Onboard Memory
768MB (SDRAM supported)
Cache
256/512KB (located on Pentium II CPU)
BIOS
Award
Dimensions
300mm x 186mm
I/O Options
32-bit PCI slots (4), green PC connector, floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, SB-link connector

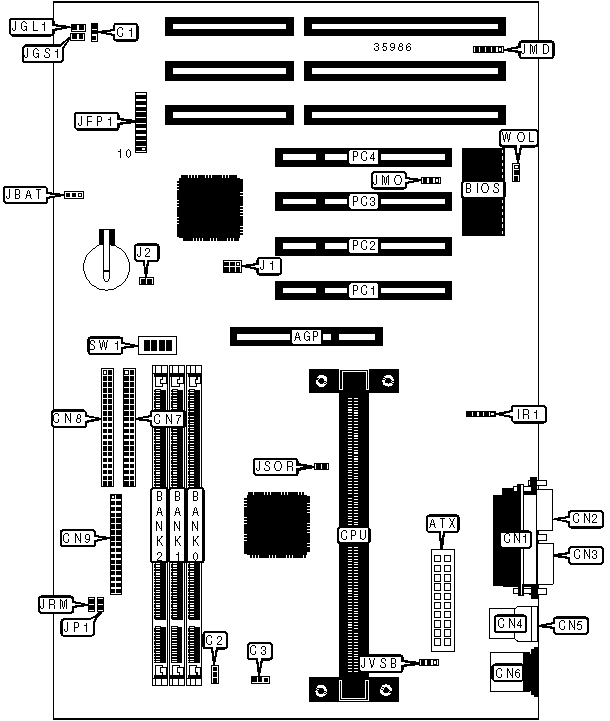

CONNECTIONS
Purpose
Location
Purpose
Location
AGP slot
AGP
SB-link connector
J1
ATX power connector
ATX
Chassis intrusion connector
J2
Chassis fan power
C1
Keylock
JFP1/pins 1 & 10
CPU fan power
C2
IDE interface LED
JFP1/pins 3 & 12
Power supply fan
C3
Power LED
JFP1/pins 4 - 6
Parallel port
CN1
Power switch
JFP1/pins 7 & 8
Serial port 2
CN2
Speaker
JFP1/pins 13 - 16
Serial port 1
CN3
Reset switch
JFP1/pins 17 & 18
USB connector 1
CN4
Green PC LED
JGL1
USB connector 2
CN5
Green PC connector
JGS1
PS/2 mouse port
CN6
Wake on modem connector
JMD
IDE interface 2
CN7
Soft off power supply
JRM
IDE interface 1
CN8
Temperature sensor
JSOR
Floppy drive interface
CN9
32-bit PCI slots
PC1 - PC4
IR connector
IR1
Wake on LAN connector
WOL

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
CMOS memory normal operation
JBAT
Pins 1 & 2 closed

CMOS memory clear
JBAT
Pins 2 & 3 closed
»
Flash BIOS voltage select 12v
JMO
Pins 1 & 2 closed

Flash BIOS voltage select 5v
JMO
Pins 2 & 3 closed

Power on mode select boot up by switch
JP1
Closed

Power on mode select immediate boot up
JP1
Open
»
Keyboard voltage select 5v
JVSB
Pins 2 & 3 closed

Keyboard voltage select 5v standby
JVSB
Pins 1 & 2 closed

DIMM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
8MB
(1) 1M x 64
None
None
16MB
(1) 1M x 64
(1) 1M x 64
None
16MB
(1) 2M x 64
None
None
24MB
(1) 1M x 64
(1) 1M x 64
(1) 1M x 64
32MB
(1) 2M x 64
(1) 2M x 64
None
32MB
(1) 4M x 64
None
None
48MB
(1) 2M x 64
(1) 2M x 64
(1) 2M x 64
64MB
(1) 4M x 64
(1) 4M x 64
None
64MB
(1) 8M x 64
None
None
96MB
(1) 4M x 64
(1) 4M x 64
(1) 4M x 64
128MB
(1) 8M x 64
(1) 8M x 64
None

DIMM CONFIGURATION (CON'T)
Size
Bank 0
Bank 1
Bank 2
128MB
(1) 16M x 64
None
None
164MB
(1) 16M x 64
(1) 1M x 64
None
144MB
(1) 16M x 64
(1) 1M x 64
(1) 1M x 64
144MB
(1) 16M x 64
(1) 2M x 64
None
160MB
(1) 16M x 64
(1) 2M x 64
(1) 2M x 64
160MB
(1) 16M x 64
(1) 4M x 64
None
192MB
(1) 16M x 64
(1) 4M x 64
(1) 4M x 64
192MB
(1) 16M x 64
(1) 8M x 64
None
192MB
(1) 8M x 64
(1) 8M x 64
(1) 8M x 64
256MB
(1) 16M x 64
(1) 8M x 64
(1) 8M x 64
256MB
(1) 16M x 64
(1) 16M x 64
None
256MB
(1) 32M x 64
None
None
264MB
(1) 32M x 64
(1) 1M x 64
None
272MB
(1) 32M x 64
(1) 1M x 64
(1) 1M x 64
272MB
(1) 32M x 64
(1) 2M x 64
None
288MB
(1) 32M x 64
(1) 2M x 64
(1) 2M x 64
288MB
(1) 32M x 64
(1) 4M x 64
None
320MB
(1) 32M x 64
(1) 4M x 64
(1) 4M x 64
320MB
(1) 32M x 64
(1) 8M x 64
None
384MB
(1) 32M x 64
(1) 8M x 64
(1) 8M x 64
384MB
(1) 32M x 64
(1) 16M x 64
None
384MB
(1) 16M x 64
(1) 16M x 64
(1) 16M x 64
512MB
(1) 32M x 64
(1) 16M x 64
(1) 16M x 64
512MB
(1) 32M x 64
(1) 32M x 64
None
768MB
(1) 32M x 64
(1) 32M x 64
(1) 32M x 64
Note: Board accepts SDRAM memory.

CACHE CONFIGURATION
Note: 256KB/512KB cache is located on the Pentium II CPU.

CPU SPEED SELECTION
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
200MHz
66MHz
3x
On
On
Off
On
233MHz
66MHz
3.5x
On
Off
Off
On
266MHz
66MHz
4x
On
On
On
Off
300MHz
66MHz
4.5x
On
Off
On
Off
333MHz
66MHz
5x
On
On
Off
Off
350MHz
100MHz
3.5x
On
Off
Off
On
400MHz
100MHz
4x
On
On
On
Off
450MHz
100MHz
4.5x
On
Off
On
Off
