MS-6108 Motherboard Settings and Configuration

MICRO-STAR INTERNATIONAL CO., LTD.

MS-6108

Processor
Pentium II
Processor Speed
233/266MHz
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
768MB (EDO supported)
Maximum Video Memory
None
Cache
256/512KB (located on Pentium II CPU)
BIOS
Unidentified
Dimensions
330mm x 220mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2), IR connector, USB connector
NPU Options
None

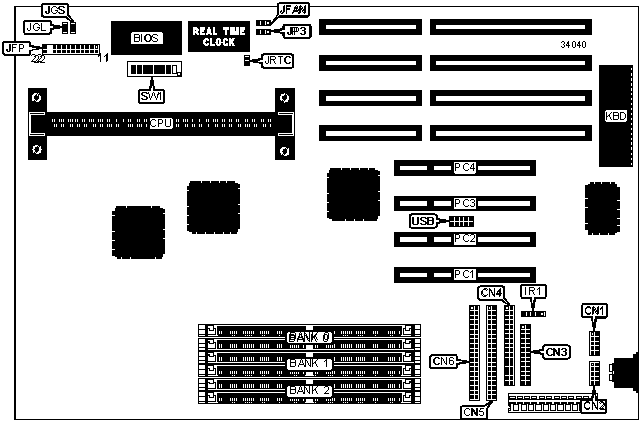

CONNECTIONS
Purpose
Location
Purpose
Location
Serial port 2
CN1
Speaker
JFP/pins 7 - 10
Serial port 1
CN2
Turbo LED
JFP/pins 12 & 13
Parallel port
CN3
Reset switch
JFP/pins 19 & 20
Floppy drive interface
CN4
IDE interface LED
JFP/pins 21 & 22
IDE interface 2
CN5
Green PC LED
JGL
IDE interface 1
CN6
Green PC connector
JGS
IR connector
IR1
32-bit PCI slots
PC1 – PC4
CPU fan power
JFAN
USB connector
USB
Power LED & keylock
JFP/pins 1 - 5

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Flash BIOS voltage select 5v
JP3
Pins 2 & 3 closed

Flash BIOS voltage select 12v
JP3
Pins 1 & 2 closed
»
CMOS memory normal operation
JRTC
Open

CMOS memory clear
JRTC
Closed

SIMM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
8MB
(2) 1M x 36
None
None
16MB
(2) 1M x 36
(2) 1M x 36
None
16MB
(2) 2M x 36
None
None
24MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
32MB
(2) 2M x 36
(2) 2M x 36
None
32MB
(2) 4M x 36
None
None
48MB
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
64MB
(2) 4M x 36
(2) 4M x 36
None
64MB
(2) 8M x 36
None
None
96MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36
None
128MB
(2) 16M x 36
None
None
192MB
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
256MB
(2) 16M x 36
(2) 16M x 36
None
256MB
(2) 32M x 36
None
None
384MB
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
512MB
(2) 32M x 36
(2) 32M x 36
None
768MB
(2) 32M x 36
(2) 32M x 36
(2) 32M x 36
Note: Board accepts EDO memory.

CACHE CONFIGURATION
Note: 256KB/512KB cache is located on the Pentium II CPU.

CPU SPEED SELECTION
Speed
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8
233MHz
On
On
Off
Off
On
Off
Off
On
266MHz
On
On
Off
Off
On
On
On
Off

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

MS-6108 Motherboard Settings and Configuration

Search

My Books

Discover

Processor	Pentium II
Processor Speed	233/266MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	768MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB (located on Pentium II CPU)
BIOS	Unidentified
Dimensions	330mm x 220mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2), IR connector, USB connector
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 2	CN1	Speaker	JFP/pins 7 - 10
Serial port 1	CN2	Turbo LED	JFP/pins 12 & 13
Parallel port	CN3	Reset switch	JFP/pins 19 & 20
Floppy drive interface	CN4	IDE interface LED	JFP/pins 21 & 22
IDE interface 2	CN5	Green PC LED	JGL
IDE interface 1	CN6	Green PC connector	JGS
IR connector	IR1	32-bit PCI slots	PC1 – PC4
CPU fan power	JFAN	USB connector	USB
Power LED & keylock	JFP/pins 1 - 5

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Flash BIOS voltage select 5v	JP3	Pins 2 & 3 closed
	Flash BIOS voltage select 12v	JP3	Pins 1 & 2 closed
»	CMOS memory normal operation	JRTC	Open
	CMOS memory clear	JRTC	Closed

SIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
8MB	(2) 1M x 36	None	None
16MB	(2) 1M x 36	(2) 1M x 36	None
16MB	(2) 2M x 36	None	None
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
32MB	(2) 2M x 36	(2) 2M x 36	None
32MB	(2) 4M x 36	None	None
48MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
64MB	(2) 4M x 36	(2) 4M x 36	None
64MB	(2) 8M x 36	None	None
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36	None
128MB	(2) 16M x 36	None	None
192MB	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36	None
256MB	(2) 32M x 36	None	None
384MB	(2) 16M x 36	(2) 16M x 36	(2) 16M x 36
512MB	(2) 32M x 36	(2) 32M x 36	None
768MB	(2) 32M x 36	(2) 32M x 36	(2) 32M x 36
Note: Board accepts EDO memory.

CPU SPEED SELECTION
Speed	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7	SW1/8
233MHz	On	On	Off	Off	On	Off	Off	On
266MHz	On	On	Off	Off	On	On	On	Off
