A-B323 Motherboard Settings and Configuration
MAGITRONICS
A-B323
Processor | 80386 (exact location unidentified) |
Processor Speed | 25MHz |
Chip Set | OPTI |
Video Chip Set | None |
Maximum Onboard Memory | 16MB (8MB on external memory card) |
Maximum Video Memory | None |
Cache | None |
BIOS | Unidentified |
Dimensions | 330mm x 218mm |
I/O Options | External memory card |
NPU Options | 80387/3167 |

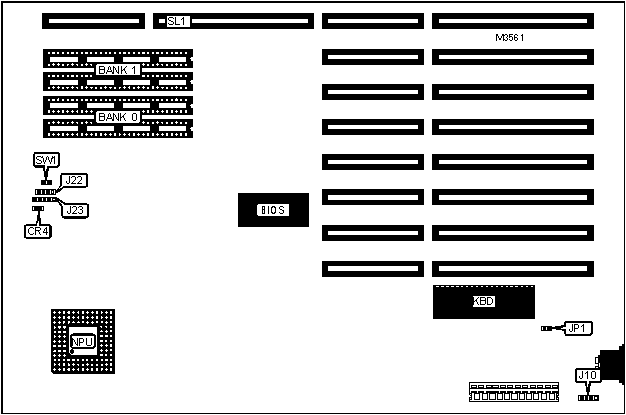

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Turbo LED | CR4 | Power LED & keylock | J23 |
External battery | J10 | Reset switch | SW1 |
Speaker | J22 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | Monitor type select color | JP1 | Closed |
Monitor type select monochrome | JP1 | Open | |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1MB | (4) 256K x 9 | None |
2MB | (4) 256K x 9 | (4) 256K x 9 |
4MB | (4) 1M x 9 | None |
5MB | (4) 256K x 9 | (4) 1M x 9 |
8MB | (4) 1M x 9 | (4) 1M x 9 |
