JUKO ELECTRONICS INDUSTRIAL CO., LTD.
SUPER TURBO (VER. C1-B)
Processor | 8088 (exact location unidentified) |
Processor Speed | 4.77/12/15MHz |
Chip Set | Unidentified |
Video Chip Set | None |
Maximum Onboard Memory | 1MB |
Maximum Video Memory | None |
Cache | None |
BIOS | Unidentified |
Dimensions | 254mm x 218mm |
I/O Options | None |
NPU Options | 8087 (exact location unidentified) |

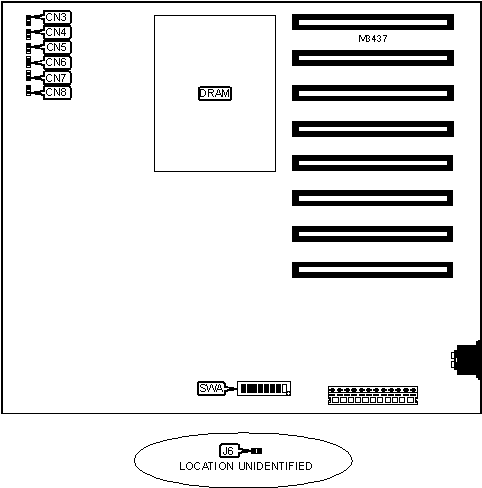

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Power LED | CN3 | Keylock | CN6 |
Reset switch | CN4 | Turbo LED | CN7 |
Speaker | CN5 | Turbo switch | CN8 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | On board memory wait state 0 wait states | J6 | Open |
On board memory wait state select 1 wait state | J6 | Closed | |
Parity check enabled | SWA/1 | Off | |
Parity check disabled | SWA/1 | On | |
» | Factory configured - do not alter | SWA/2 | On |
DRAM CONFIGURATION |
Note: The memory chip sizes are unidentified. |
DRAM SWITCH CONFIGURATION | ||
Size | SWA/3 | SWA/4 |
None | On | On |
512KB | Off | On |
640KB | On | Off |
1MB | Off | Off |
CPU SPEED SELECTION | |
Speed | CN8 |
4.77MHz | Open |
12MHz | Closed |
15MHz | Closed |
MONITOR SELECTION | ||
Type | SWA/5 | SWA/6 |
None | On | On |
Color (40 x 35) | Off | On |
Color (80 x 25) | On | Off |
Monochrome | Off | Off |
FLOPPY DRIVE SELECTION | ||
Drives installed | SWA/7 | SWA/8 |
1 | On | On |
2 | Off | On |
3 | On | Off |
4 | Off | Off |
