JOINDATA SYSTEMS, INC.
G486HVL
Processor | 80486SX/80486DX/80486DX2 |
Processor Speed | 25/33/50(internal)/50/66(internal)MHz |
Chip Set | HINT |
Max. Onboard DRAM | 128MB |
Cache | 64/128/256KB |
BIOS | AMI |
Dimensions | 330mm x 218mm |
I/O Options | 32-bit VESA local bus card slots (2) |
NPU Options | 4167 |

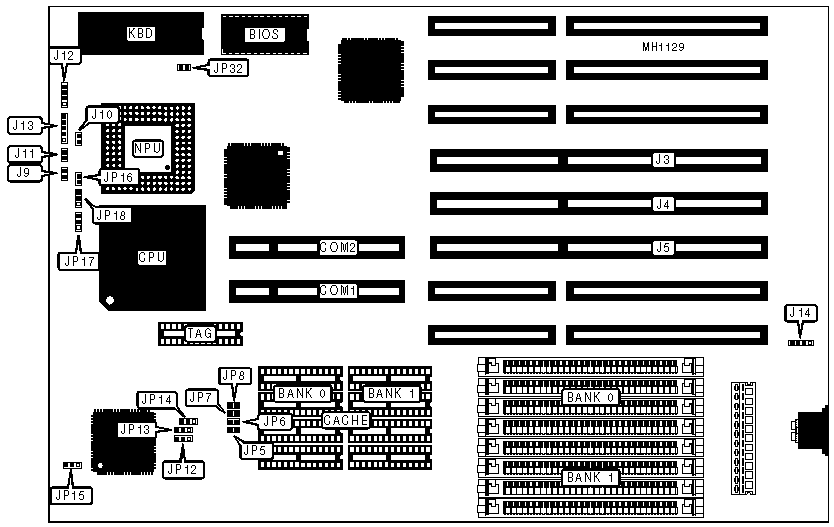

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
32-bit VESA local bus slot | COM1 | Turbo switch | J11 |
32-bit VESA local bus slot | COM2 | Speaker | J12 |
32-bit EISA cards | J3, J4, J5 | Power LED & keylock | J13 |
Reset switch | J9 | External battery | J14 |
Turbo LED | J10 |
USER CONFIGURABLE SETTINGS | |||
Function | Jumper | Position | |
» | Monitor type select color | JP32 | Closed |
Monitor type select monochrome | JP32 | Open |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
4MB | (4) 1M x 9 | NONE |
8MB | (4) 1M x 9 | (4) 1M x 9 |
16MB | (4) 4M x 9 | NONE |
20MB | (4) 1M x 9 | (4) 4M x 9 |
20MB | (4) 4M x 9 | (4) 1M x 9 |
32MB | (4) 4M x 9 | (4) 4M x 9 |
64MB | (4) 16M x 9 | NONE |
128MB | (4) 16M x 9 | (4) 16M x 9 |
CACHE CONFIGURATION | |||
Size | Bank 0 | Bank 1 | TAG |
64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 |
128KB | (4) 32K x 8 | NONE | (1) 32K x 8 |
256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
CACHE JUMPER CONFIGURATION | |||||||
Size | JP5 | JP6 | JP7 | JP8 | JP12 | JP13 | JP14 |
64KB | Open | Open | Open | Open | 1 & 2 | 1 & 2 | 1 & 2 |
128KB | Closed | Open | Open | Closed | 2 & 3 | 2 & 3 | 1 & 2 |
256KB | Closed | Closed | Closed | Closed | 2 & 3 | 2 & 3 | 2 & 3 |
Note:Pins designated should be in the closed position. |
CPU TYPE CONFIGURATION | ||||
Type | JP15 | JP16 | JP17 | JP18 |
80486SX-25/33 | pins 2 & 3 closed | Open | Open | pins 2 & 3 closed |
80487SX-33 | pins 2 & 3 closed | Closed | pins 2 & 3 closed | pins 1 & 2 closed |
80486DX-25/33 | pins 2 & 3 closed | Closed | pins 1 & 2 closed | pins 1 & 2 closed |
80486DX-50 | pins 1 & 2 closed | Closed | pins 1 & 2 closed | pins 1 & 2 closed |
80486DX2-25/33 | pins 2 & 3 closed | Closed | pins 1 & 2 closed | pins 1 & 2 closed |
