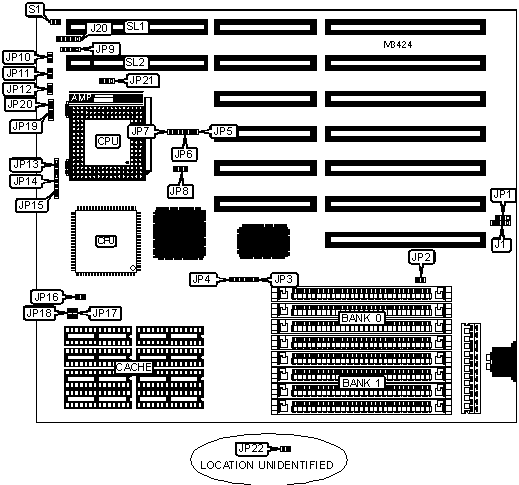

HIGH PERFORMANCE 486 SX/DX (MODEL 2270) Motherboard Settings and Configuration

JC INFORMATION SYSTEMS CORPORATION

HIGH PERFORMANCE 486 SX/DX (MODEL 2270)

Processor
80486SX/80486DX/80486DX2
Processor Speed
25/33/40/50/50(internal)/66(internal)MHz
Chip Set
Unidentified
Video Chip Set
None
Maximum Onboard Memory
64MB
Maximum Video Memory
None
Cache
64/256KB
BIOS
AMI
Dimensions
254mm x 218mm
I/O Options
32-bit VESA local bus slots (2)
NPU Options
None

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
J1
Turbo LED
JP20
Power LED & keylock
J20
Reset switch
S1
Speaker
JP9
32-bit VESA local bus slots
SL1 & SL2
Turbo switch
JP19

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
CMOS memory normal operation
JP1
Pins 2 & 3 closed

CMOS memory clear
JP1
Pins 1 & 2 closed

External battery installed at J1
JP1
Open

Monitor type select monochrome/EGA
JP2
Open

Monitor type select CGA
JP2
Closed
»
Factory configured - do not alter
JP10
Closed

Jumper information unavailable
JP11
Unidentified

Jumper information unavailable
JP12
Unidentified
»
Factory configured - do not alter
JP21
Open
»
Factory configured - do not alter
JP22
Open

DRAM CONFIGURATION
Size
Bank 0
Bank 1
1MB
(4) 256K x 9
None
2MB
(4) 256K x 9
(4) 256K x 9
4MB
(4) 1M x 9
None
5MB
(4) 1M x 9
(4) 256K x 9
8MB
(4) 1M x 9
(4) 1M x 9
16MB
(4) 4M x 9
None
20MB
(4) 4M x 9
(4) 1M x 9
32MB
(4) 4M x 9
(4) 4M x 9
64MB
(4) 16M x 9
None

CACHE CONFIGURATION
Size
Bank 0
Bank 1
64KB
(4) 8K x 8
(4) 8K x 8
256KB
(4) 32K x 8
(4) 32K x 8
Note: The location of banks 0 & 1 are unidentified.

CACHE JUMPER CONFIGURATION
Size
JP3
JP4
JP17
JP18
64KB
Pins 2 & 3 closed
Pins 2 & 3 closed
Open
Open
128KB
Pins 1 & 2 closed
Pins 1 & 2 closed
Closed
Open
256KB
Pins 2 & 3 closed
Pins 2 & 3 closed
Closed
Closed

CPU SPEED SELECTION
Speed
JP5
JP6
JP7
25MHz
Open
Open
Closed
33MHz
Closed
Open
Open
40MHz
Closed
Closed
Open
50iMHz
Open
Open
Closed
50MHz
Open
Closed
Open
66iMHz
Closed
Open
Open

CPU TYPE SELECTION
Type
JP8
JP13
JP14
JP15
JP16
80486SX
2 & 3
Open
2 & 3
Open
Open
80486DX
2 & 3
1 & 2
1 & 2
Closed
Open
Note: Pins designated should be in the closed position. If PQFP is installed, JP8 must be set to 1 & 2 and JP16 must be closed if an 80486DX or 80486DX2 is installed
