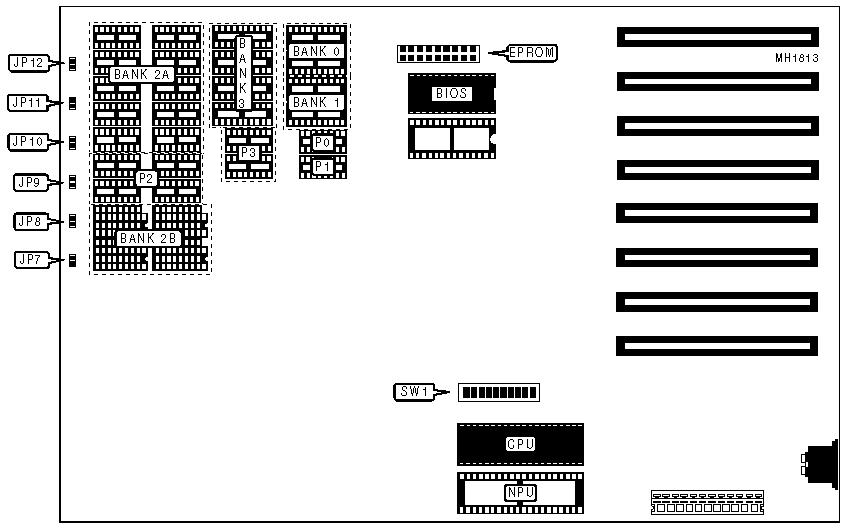

JE1002A
Processor | 8088 |
Processor Speed | 10MHz |
Chip Set | None |
Max. Onboard DRAM | 1MB |
Cache | None |
BIOS | Phoenix |
Dimensions | 330mm x 218mm |
I/O Options | None |
NPU Options | 8087 |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Speaker | JP7 | Turbo switch | JP10 |
Reset switch | JP8 | Keylock | JP11 |
Turbo LED | JP9 | Power LED | JP12 |
USER CONFIGURABLE SETTINGS | |||
Function | Jumper/Switch | Position | |
» | Factory configured - do not alter | EPROM | N/A |
» | Factory configured - do not alter | SW1/switch 1 | N/A |
» | NPU disabled | SW1/switch 2 | On |
NPU enabled | SW1/switch 2 | Off | |
» | Factory configured - do not alter | SW1/switch 3 | N/A |
» | Factory configured - do not alter | SW1/switch 4 | N/A |
MONITOR TYPE CONFIGURATION | ||
Monitor Type | SW1/switch 5 | SW1/switch 6 |
Monochrome | Off | Off |
CGA (40 x 25) | Off | On |
CGA (80 x 25) | On | Off |
EGA/VGA | On | On |
FLOPPY DRIVE CONFIGURATION | ||
Number of Drives | SW1/switch 7 | SW1/switch 8 |
1 | On | On |
2 | Off | On |
3 | On | Off |
4 | Off | Off |
DRAM CONFIGURATION | |||||||||
Size | Bank 0 | P0 | Bank 1 | P1 | Bank 2A | Bank 2B | P2 | Bank 3 | P3 |
256KB | (2)44256 | (1)41256 | NONE | NONE | NONE | NONE | NONE | NONE | NONE |
512KB | (2)44256 | (1)41256 | (2)44256 | (1)41256 | NONE | NONE | NONE | NONE | NONE |
640KB | (2)44256 | (1)41256 | (2)44256 | (1)41256 | (4)41256 | (12)41256 | (2)41256 | NONE | NONE |
640KB | (2)44256 | (1)41256 | (2)44256 | (1)41256 | (4)44256 | NONE | (2)41256 | NONE | NONE |
640KB | (2)44256 | (1)41256 | (2)44256 | (1)41256 | NONE | NONE | NONE | (4)44256 | (2)41256 |
DRAM JUMPER CONFIGURATION | ||
Memory | SW1/switch 9 | SW1/switch 10 |
256KB | On | On |
512KB | Off | On |
640KB | On | Off |
1MB | Off | Off |
