IT486SMV MINI Motherboard Settings and Configuration
INFORMTECH INTERNATIONAL, INC.
IT486SMV MINI
KT TECHNOLOGY PTE LTD.
KT433 FX3C-WB/VESA
Processor | 80486SX/80487SX/80486DX/ODP486SX/80486DX2 |
Processor Speed | 20/25/33/50(internal)/66(internal)MHz |
Chip Set | Forex |
Max. Onboard DRAM | 32MB |
Cache | 64/128/256KB |
BIOS | AMI |
Dimensions | 330mm x 218mm |
I/O Options | 32-bit VESA local bus slots (2) |
NPU Options | None |

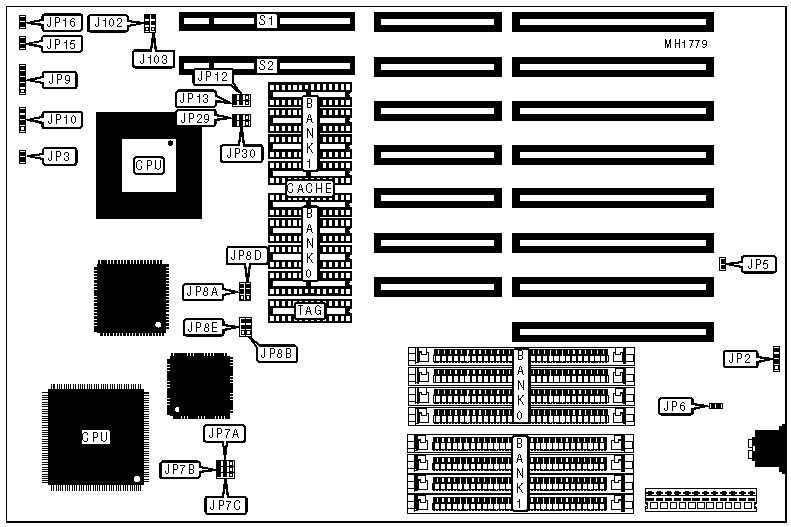

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
External battery | JP2 | Turbo switch | JP15 |
Reset switch | JP3 | Turbo LED | JP16 |
Power LED & keylock | JP9 | 32-bit VESA Local bus slot | S1 |
Speaker | JP10 | 32-bit VESA Local bus slot | S2 |
USER CONFIGURABLE SETTINGS | |||
Function | Jumper | Position | |
» | Factory configured - do not alter | JP5 | Open |
» | CMOS memory normal operation | JP6 | Open |
| CMOS memory clear | JP6 | Closed |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1MB | (4) 256K x 9 | NONE |
2MB | (4) 256K x 9 | (4) 256K x 9 |
4MB | (4) 1M x 9 | NONE |
5MB | (4) 256K x 9 | (4) 1M x 9 |
8MB | (4) 1M x 9 | (4) 1M x 9 |
16MB | (4) 4M x 9 | NONE |
20MB | (4) 1M x 9 | (4) 4M x 9 |
32MB | (4) 4M x 9 | (4) 4M x 9 |
CACHE CONFIGURATION | ||||
Size | Max Cachable | Bank 0 | Bank 1 | TAG |
64KB | 16MB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 |
128KB | 32MB | (4) 32K x 8 | NONE | (1) 8K x 8 |
256KB | 32MB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
CACHE JUMPER CONFIGURATION | ||||
Size | JP8A | JP8B | JP8D | JP8E |
64KB | pins 2 & 3 closed | pins 2 & 3 closed | pins 2 & 3 closed | pins 2 & 3 closed |
128KB | pins 1 & 2 closed | pins 1 & 2 closed | pins 1 & 2 closed | pins 1 & 2 closed |
256KB | pins 2 & 3 closed | pins 1 & 2 closed | pins 2 & 3 closed | pins 1 & 2 closed |
CPU TYPE CONFIGURATION | ||||
Type | JP12 | JP13 | JP29 | JP30 |
80486SX | pins 2 & 3 closed | pins 2 & 3 closed | pins 2 & 3 closed | pins 2 & 3 closed |
80487SX | pins 1 & 2 closed | pins 1 & 2 closed | pins 2 & 3 closed | pins 2 & 3 closed |
80486DX | pins 1 & 2 closed | pins 1 & 2 closed | pins 1 & 2 closed | pins 1 & 2 closed |
ODP486SX | pins 1 & 2 closed | pins 1 & 2 closed | pins 2 & 3 closed | pins 2 & 3 closed |
80486DX2 | pins 1 & 2 closed | pins 1 & 2 closed | pins 1 & 2 closed | pins 1 & 2 closed |
CPU SPEED CONFIGURATION | |||
Speed | JP7A | JP7B | JP7C |
20MHz | pins 2 & 3 closed | pins 1 & 2 closed | pins 1 & 2 closed |
25MHz | pins 1 & 2 closed | pins 2 & 3 closed | pins 1 & 2 closed |
33MHz | pins 1 & 2 closed | pins 1 & 2 closed | pins 2 & 3 closed |
50i MHz | pins 1 & 2 closed | pins 2 & 3 closed | pins 1 & 2 closed |
66i MHz | pins 1 & 2 closed | pins 1 & 2 closed | pins 2 & 3 closed |
VESA WAIT STATE/BUS SPEED CONFIGURATION | |||
CPU speed | Wait states | JP102 | JP103 |
£ 33MHz | 0 wait states | pins 1 & 2 closed | pins 1 & 2 closed |
> 33MHz | 1 wait state | pins 2 & 3 closed | pins 2 & 3 closed |
