IT486SL-50MHz Ver. 2.0 Motherboard Settings and Configuration

INFORMTECH INTERNATIONAL, INC.

IT486SL-50MHz Ver. 2.0

Processor
80486SX/80487SX/80486DX
Processor Speed
20/25/33/50MHz
Chip Set
OPTI
Max. Onboard DRAM
40MB
SRAM Cache
64/256KB
BIOS
OPTI
Dimensions
218mm x 330mm
I/O Options
Auxiliary keyboard connector
NPU Options
4167

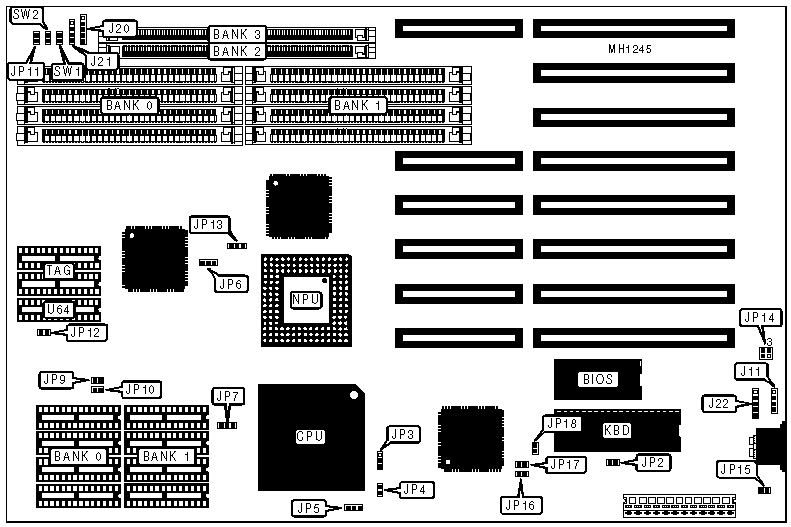

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
J11
Turbo LED
JP11
Power LED & keylock
J20
Reset switch
SW1
Speaker
J21
Turbo switch
SW2
Auxiliary keyboard
J22

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Monitor type select monochrome
JP2
open

Monitor type select color
JP2
closed
»
Factory configured - do not alter
JP6
open
»
External battery type select lithium 3.6VDC
JP14
pins 1 & 3 closed

External battery type select alkaline 4.5VDC
JP14
pins 1 & 2 closed

External battery type select four pack AA 6VDC
JP14
pins 3 & 4 closed
»
Factory configured - do not alter
JP15
open

I/O bus select zero wait states
JP16
JP17
closed
closed

I/O bus select one wait state
JP16
JP17
closed
open

I/O bus select two wait states
JP16
JP17
open
closed

I/O bus select three wait states
JP16
JP17
open
open
»
Factory configured - do not alter
JP18
open

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
1MB
(4) 256K x 9
NONE
NONE
NONE
2MB
(4) 256K x 9
(4) 256K x 9
NONE
NONE
4MB
(4) 1M x 9
NONE
NONE
NONE
5MB
(4) 256K x 9
(4) 1M x 9
NONE
NONE
8MB
(4) 1M x 9
(4) 1M x 9
NONE
NONE
12MB
(4) 1M x 9
(4) 1M x 9
(1) 4M x 36
NONE
16MB
(4) 4M x 9
NONE
NONE
NONE
16MB
(4) 1M x 9
(4) 1M x 9
(1) 4M x 36
(1) 4M x 36
20MB
(4) 1M x 9
(4) 4M x 9
NONE
NONE
24MB
(4) 1M x 9
(4) 4M x 9
(1) 4M x 36
NONE
28MB
(4) 1M x 9
(4) 4M x 9
(1) 4M x 36
(1) 4M x 36
32MB
(4) 4M x 9
(4) 4M x 9
NONE
NONE
36MB
(4) 4M x 9
(4) 4M x 9
(1) 4M x 36
NONE
40MB
(4) 4M x 9
(4) 4M x 9
(1) 4M x 36
(1) 4M x 36

CPU TYPE CONFIGURATION
CPU Type
JP3
JP4
JP5
80486DX
pins 2 & 3 closed
closed
pins 1 & 2 closed
80487SX
pins 1 & 2 closed
closed
pins 1 & 2 closed
80486SX
open
open
pins 2 & 3 closed

SRAM JUMPER CONFIGURATION
Size
JP9
JP10
JP12
64KB
open
open
open
256KB
closed
closed
closed

SRAM CONFIGURATION
Size
Bank 0
TAG
Dirty Bit (U64)
64KB
(8) 8K x 8
(2) 16K x 4
(1) 64K x 1
256KB
(8) 32K x 8
(2) 16K x 4
(1) 64K x 1

CPU SPEED CONFIGURATION
CPU Speed
JP7
JP13
50MHz
pins 1 & 2 closed
pins 2 & 3 closed
33MHz
pins 2 & 3 closed
pins 1 & 2 closed
25MHz
pins 2 & 3 closed
pins 2 & 3 closed
