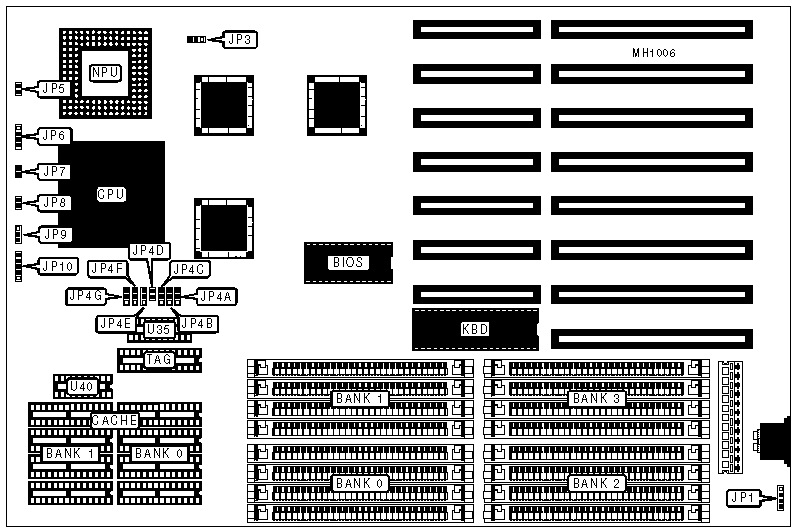

M-407 Motherboard Settings and Configuration

ILON USA, INC.

M-407

Processor
80486DX
Processor Speed
25/33/40/50MHz
Chip Set
PC CHIPS
Max. Onboard DRAM
64MB
Cache
32/64/128/256KB
BIOS
AMI/Quadtel
Dimensions
332mm x 220mm
I/O Options
None
NPU Options
4167

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
JP1
Reset switch
JP7
Turbo LED
JP5
Turbo switch
JP8
Speaker
JP6
Power LED & keylock
JP10

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Battery type select internal
JP1
pins 2 & 3 closed

Battery type select external
JP1
Closed
»
AT command recovery time stretch enabled
JP3
pins 2 & 3 closed

AT command recovery time stretch disabled
JP3
pins 1 & 2 closed
»
Monitor type select color
JP9
pins 2 & 3 closed

Monitor type select monochrome
JP9
pins 1 & 2 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
1MB
(4) 256K x 9
NONE
NONE
NONE
2MB
(4) 256K x 9
(4) 256K x 9
NONE
NONE
3MB
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
NONE
4MB
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
4MB
(4) 1M x 9
NONE
NONE
NONE
5MB
(4) 256K x 9
(4) 1M x 9
NONE
NONE
6MB
(4) 256K x 9
(4) 256K x 9
(4) 1M x 9
NONE
8MB
(4) 1M x 9
(4) 1M x 9
NONE
NONE
9MB
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
(4) 1M x 9
10MB
(4) 256K x 9
(4) 256K x 9
(4) 1M x 9
(4) 1M x 9
12MB
(4) 1M x 9
(4) 1M x 9
(4) 1M x 9
NONE
16MB
(4) 1M x 9
(4) 1M x 9
(4) 1M x 9
(4) 1M x 9
20MB
(4) 1M x 9
(4) 4M x 9
NONE
NONE
24MB
(4) 1M x 9
(4) 1M x 9
(4) 4M x 9
NONE
32MB
(4) 4M x 9
(4) 4M x 9
NONE
NONE
40MB
(4) 1M x 9
(4) 1M x 9
(4) 4M x 9
(4) 4M x 9
48MB
(4) 4M x 9
(4) 4M x 9
(4) 4M x 9
NONE
64MB
(4) 4M x 9
(4) 4M x 9
(4) 4M x 9
(4) 4M x 9

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG
JP4D
32KB
(4) 8K x 8
NONE
NONE
Closed
32KB
(4) 8K x 8
NONE
(1) 8K x 8
Open
64KB
(4) 8K x 8
(4) 8K x 8
NONE
Closed
64KB
(4) 8K x 8
(4) 8K x 8
(1) 8K x 8
Open
128KB
(4) 32K x 8
NONE
NONE
Closed
128KB
(4) 32K x 8
NONE
(1) 8K x 8
Open
256KB
(4) 32K x 8
(4) 32K x 8
NONE
Closed
256KB
(8) 32K x 8
(8) 32K x 8
(1) 32K x 8
Open

CACHE JUMPER CONFIGURATION
Size
JP4A
JP4B
JP4C
JP4E
JP4F
JP4G
32KB
1 & 2
1 & 2
1 & 2
2 & 3
N/A
2 & 3
64KB
2 & 3
1 & 2
1 & 2
1 & 2
N/A
1 & 2
128KB
2 & 3
2 & 3
1 & 2
2 & 3
1 & 2
1 & 2
256KB
2 & 3
2 & 3
2 & 3
1 & 2
2 & 3
1 & 2
