VALUEPLUS MD/P60 SERIES Motherboard Settings and Configuration

Processor	Pentium
Processor Speed	60MHz
Chip Set	Intel
Max. Onboard DRAM	96MB
Cache	256/512KB
BIOS	Acer
Dimensions	330mm x 218mm
I/O Options	PS/2 mouse port, parallel port, serial ports (2), 32-bit PCI slots (3), floppy drive interface, IDE interface
NPU Options	None

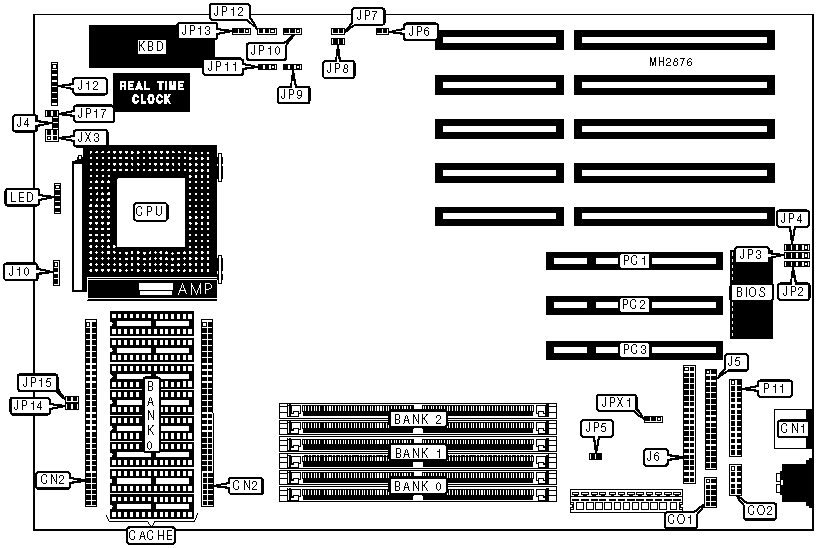

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse port	CN1	Auxiliary keyboard connector	J12
Serial port 1	CO1	+5v ground	JP9
Serial port 2	CO2	IDE interface LED	JX3
IDE interface LED	J4	Power LED & keylock	LED
Floppy drive interface	J5	Parallel port	P11
IDE interface	J6	32-bit PCI slots	PC1 - PC3
Chassis fan power	J10

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	On board I/O enabled	JP5	Closed
	On board I/O disabled	JP5	Open
»	Parallel port bidirectional	JP6	Closed
	Parallel port unidirectional	JP6	Open
»	Password disabled	JP11	pins 2 & 3 closed
	Password enabled	JP11	pins 1 & 2 closed
»	Cache type select standard cache	JP13	pins 1 & 2 closed
	Cache type select burst cache	JP13	pins 2 & 3 closed
»	Keylock disabled	JP17	Closed
	Keylock enabled	JP17	Open
»	Ground pin 28 hard disk drive	JPX1	pins 2 & 3 closed
	HALE pin 28	JPX1	pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
8MB	(2) 1M x 36	NONE	NONE
16MB	(2) 1M x 36	(2) 1M x 36	NONE
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
32MB	(2) 4M x 36	NONE	NONE
40MB	(2) 1M x 36	(2) 4M x 36	NONE
40MB	(2) 4M x 36	(2) 1M x 36	NONE
48MB	(2) 1M x 36	(2) 1M x 36	(2) 4M x 36
48MB	(2) 1M x 36	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36
64MB	(2) 4M x 36	(2) 4M x 36	NONE
72MB	(2) 1M x 36	(2) 4M x 36	(2) 4M x 36
72MB	(2) 4M x 36	(2) 1M x 36	(2) 4M x 36
72MB	(2) 4M x 36	(2) 4M x 36	(2) 1M x 36
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36

CACHE CONFIGURATION
Size	Bank 0	CN2
256KB	(8) 32K x 8	NONE
512KB	(8) 32K x 8	Card installed
Note: To use 512KB cache, a cache card must be installed at CN2.

CACHE JUMPER CONFIGURATION
Size	JP10	JP12
None	pins 1 & 2 closed	pins 1 & 2 closed
256KB	pins 2 & 3 closed	pins 1 & 2 closed
512KB	pins 2 & 3 closed	pins 2 & 3 closed

CACHE OE# SIGNAL CONFIGURATION
Size	JP14	JP15
256KB cache enabled	Closed	Closed
256KB cache disabled	Open	Open

L2 PARITY CHECK CONFIGURATION
Setting	JP7	JP8
Disabled	Closed	Closed
Enabled	Open	Open

PCI IRQ CONFIGURATION (INT B)
IRQ	JP2
Disabled	pins 2 & 3 closed
IRQ14	pins 3 & 4 closed
IRQ15	pins 1 & 2 closed

PCI IRQ CONFIGURATION (INT C)
IRQ	JP3
Disabled	pins 2 & 3 closed
IRQ11	pins 1 & 2 closed
IRQ15	pins 3 & 4 closed

PCI IRQ CONFIGURATION (INT D)
IRQ	JP4
Disabled	pins 2 & 3 closed
IRQ10	pins 1 & 2 closed
IRQ15	pins 3 & 4 closed
