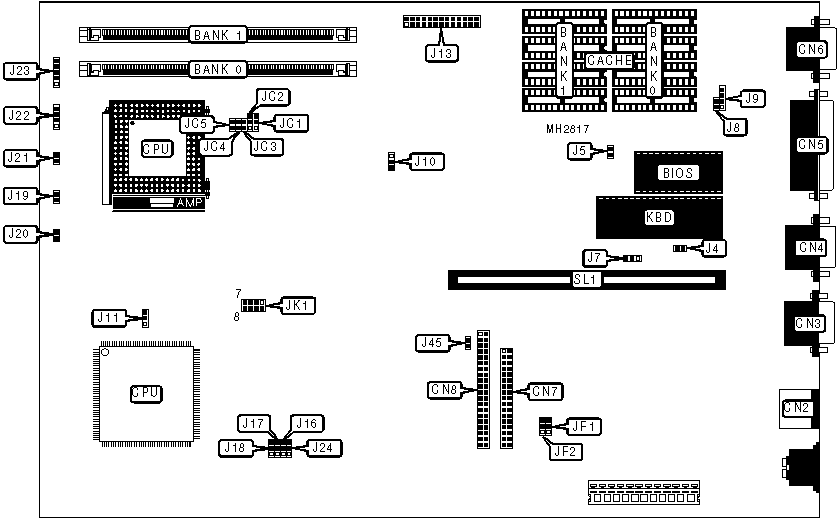

VALUEPLUS SLI-SERIES Motherboard Settings and Configuration

ICL

VALUEPLUS SLI-SERIES

Processor
80486SX/80486SX2/80486DX/80486DX2
Processor Speed
25/33/50(internal)/66(internal)MHz
Chip Set
Unidentified
Max. Onboard DRAM
32MB
Cache
Unidentified
BIOS
AMI
Dimensions
330mm x 218mm
I/O Options
Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, riser slot
NPU Options
None

CONNECTIONS
Purpose
Location
Purpose
Location
PS/2 mouse port
CN2
VGA feature connector
J13
Serial port 1
CN3
Turbo switch
J19
Serial port 2
CN4
Turbo LED
J20
Parallel port
CN5
Reset switch
J21
VGA port
CN6
Speaker
J22
Floppy drive interface
CN7
Power LED & keylock
J23
IDE interface
CN8
IDE interface LED
J45
External battery
J9
Riser Card
SL1

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Monitor type select monochrome/EGA/VGA
J4
Open

Monitor type select color
J4
Closed
»
CMOS memory normal operation
J5
Open

CMOS memory clear
J5
Closed
»
Password normal operation
J7
Open

Password clear
J7
Closed
»
Factory configured - do not alter
J8
N/A
»
On board VGA enabled
J10
pins 1 & 2 closed

On board VGA disabled
J10
pins 2 & 3 closed
»
Factory configured - do not alter
J11
N/A
»
Factory configured - do not alter
J16
N/A
»
Factory configured - do not alter
J17
N/A
»
Factory configured - do not alter
J18
N/A
»
Factory configured - do not alter
J24
N/A
»
Factory configured - do not alter
JC5
N/A

DRAM CONFIGURATION
Size
Bank 0
Bank 1
4MB
(1) 1M x 36
NONE
8MB
(1) 1M x 36
(1) 1M x 36
16MB
(1) 4M x 36
NONE
20MB
(1) 4M x 36
(1) 1M x 36
32MB
(1) 4M x 36
(1) 4M x 36

CACHE CONFIGURATION
Note: The size of the cache is unidentified.

CPU TYPE CONFIGURATION
Type
JC1
JC2
JC3
JC4
80486SX
pins 2 & 3 closed
pins 2 & 3 closed
Open
Open
80486SX2
pins 2 & 3 closed
pins 2 & 3 closed
Open
Open
80486DX
pins 1 & 2 closed
pins 1 & 2 closed
Closed
Closed
80486DX2
pins 1 & 2 closed
pins 1 & 2 closed
Closed
Closed

CPU SPEED CONFIGURATION
Speed
JK1
25MHz
pins 5 & 6 closed
33MHz
pins 1 & 2 closed
50iMHz
pins 5 & 6 closed
66iMHz
pins 1 & 2 closed

FLOPPY DRIVE CONFIGURATION
Setting
JF1
JF2
Enabled
pins 2 & 3 closed
pins 2 & 3 closed
Disabled
pins 1 & 2 closed
pins 1 & 2 closed
