TEAMSERVER HI SERIES Motherboard Settings and Configuration

ICL

TEAMSERVER HI SERIES

Processor
80486SX/80486DX/80486DX2/Pentium (depends on CPU board installed)
Processor Speed
25/33/50(internal)/60/66(internal)/66MHz (depends on CPU board installed)
Chip Set
Unidentified
Max. Onboard DRAM
384MB (256MB on external memory card)
Cache
128KB
BIOS
Unidentified
Dimensions
355mm x 305mm
I/O Options
PS/2 mouse port, parallel port, serial ports (2), VGA feature connector, floppy drive interface, IDE interface, external memory card, CPU slot
NPU Options
None

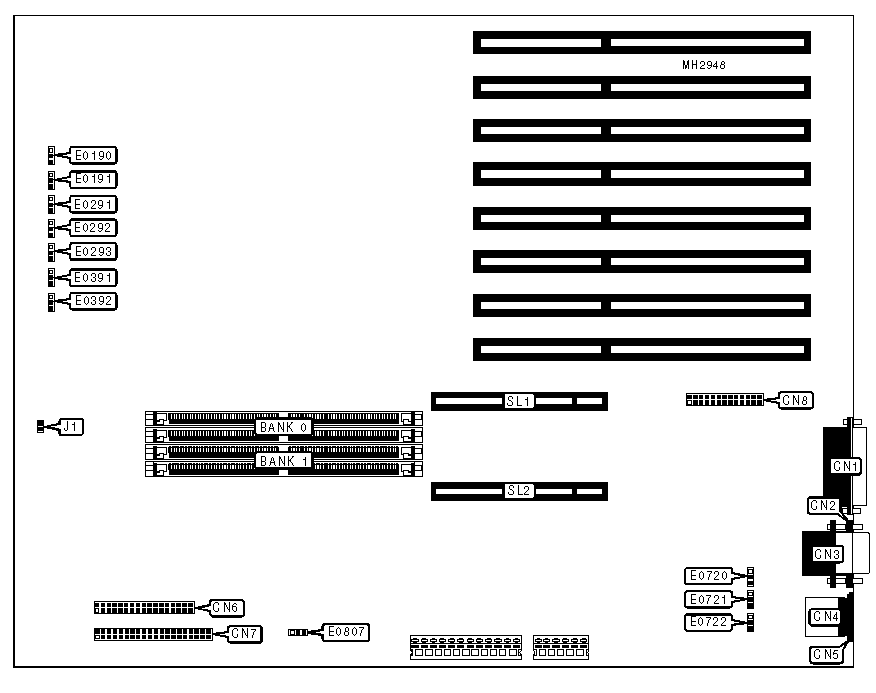

CONNECTIONS
Purpose
Location
Purpose
Location
Parallel port
CN1
IDE interface
CN7
Serial port 1
CN2
VGA feature connector (not used)
CN8
Serial port 2
CN3
Reset switch
J1
PS/2 mouse port
CN4
External memory card
SL1
Keyboard connector
CN5
CPU slot
SL2
Floppy drive interface
CN6

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Flash BIOS normal operation
E0190
pins 2 & 3 closed

Flash BIOS reset
E0190
pins 1 & 2 closed
»
VGA card select HRA10I only
E0191
pins 2 & 3 closed

VGA card select other cards
E0191
pins 1 & 2 closed
»
Diskette read/write enabled
E0291
pins 1 & 2 closed

Diskette read/write disabled
E0291
pins 2 & 3 closed
»
CMOS memory normal operation
E0292
pins 1 & 2 closed

CMOS memory clear
E0292
pins 2 & 3 closed
»
Password disabled
e0293
pins 1 & 2 closed

Password enabled
e0293
pins 2 & 3 closed
»
Factory configured - do not alter
E0720
pins 1 & 2 closed
»
Flash BIOS normal operation
E0721
pins 1 & 2 closed

flash BIOS forced flash load (insert BIOS disk in drive A)
E0721
pins 2 & 3 closed
»
On board video controller address select 046E8H
E0722
pins 2 & 3 closed

On board video controller address select03C3H
E0722
pins 1 & 2 closed
»
Boot block write disabled
E0807
pins 1 & 2 closed

Boot block write enabled
E0807
pins 2 & 3 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
NONE
16MB
(2) 1M x 36
(2) 1M x 36
16MB
(2) 2M x 36
NONE
24MB
(2) 1M x 36
(2) 2M x 36
32MB
(2) 2M x 36
(2) 2M x 36
32MB
(2) 4M x 36
NONE
40MB
(2) 1M x 36
(2) 4M x 36
48MB
(2) 2M x 36
(2) 4M x 36
64MB
(2) 4M x 36
(2) 4M x 36
64MB
(2) 8M x 36
NONE
72MB
(2) 1M x 36
(2) 8M x 36
80MB
(2) 2M x 36
(2) 8M x 36
96MB
(2) 4M x 36
(2) 8M x 36
128MB
(2) 8M x 36
(2) 8M x 36

DRAM JUMPER CONFIGURATION
Size
E0391
E0392
1M x 36 or 2M x 36
pins 1 & 2 closed
pins 1 & 2 closed
4M x 36 or 8M x 36
pins 2 & 3 closed
pins 2 & 3 closed

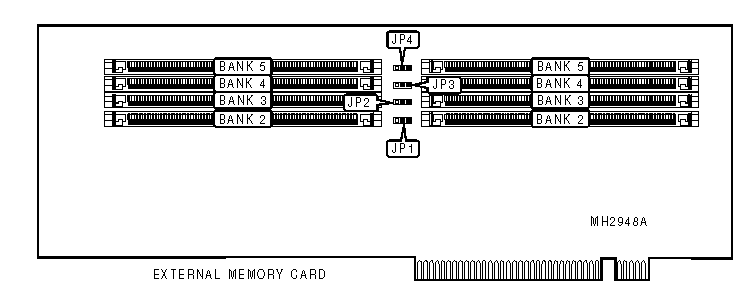

DRAM CONFIGURATION (EXTERNAL MEMORY CARD)
Size
Bank 2
Bank 3
Bank 4
Bank 5
8MB
(2) 1M x 36
NONE
NONE
NONE
16MB
(2) 1M x 36
(2) 1M x 36
NONE
NONE
16MB
(2) 2M x 36
NONE
NONE
NONE
24MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
NONE
24MB
(2) 1M x 36
(2) 2M x 36
NONE
NONE
32MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
32MB
(2) 1M x 36
(2) 1M x 36
(2) 2M x 36
NONE
32MB
(2) 2M x 36
(2) 2M x 36
NONE
NONE
32MB
(2) 4M x 36
NONE
NONE
NONE
40MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
(2) 2M x 36
40MB
(2) 1M x 36
(2) 4M x 36
NONE
NONE
48MB
(2) 1M x 36
(2) 1M x 36
(2) 2M x 36
(2) 2M x 36
48MB
(2) 2M x 36
(2) 4M x 36
NONE
NONE
56MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
(2) 4M x 36
64MB
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
64MB
(2) 2M x 36
(2) 2M x 36
(2) 4M x 36
NONE
64MB
(2) 4M x 36
(2) 4M x 36
NONE
NONE
64MB
(2) 8M x 36
NONE
NONE
NONE
72MB
(2) 1M x 36
(2) 8M x 36
NONE
NONE
80MB
(2) 1M x 36
(2) 1M x 36
(2) 8M x 36
NONE
88MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
(2) 8M x 36
96MB
(2) 2M x 36
(2) 2M x 36
(2) 8M x 36
NONE
96MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
NONE

DRAM CONFIGURATION (EXTERNAL MEMORY CARD, CON’T)
Size
Bank 2
Bank 3
Bank 4
Bank 5
96MB
(2) 4M x 36
(2) 8M x 36
NONE
NONE
112MB
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
(2) 8M x 36
128MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
128MB
(2) 4M x 36
(2) 4M x 36
(2) 8M x 36
NONE
128MB
(2) 8M x 36
(2) 8M x 36
NONE
NONE
160MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
(2) 8M x 36
192MB
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
NONE
256MB
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36

DRAM JUMPER CONFIGURATION
Size
JP1
JP2
JP3
JP4
1M or 2M installed
pins 1 & 2 closed
pins 1 & 2 closed
pins 1 & 2 closed
pins 1 & 2 closed
4M or 8M installed
pins 2 & 3 closed
pins 2 & 3 closed
pins 2 & 3 closed
pins 2 & 3 closed

CACHE CONFIGURATION
Note: 128KB cache is factory installed and is not configurable. The location is unidentified.

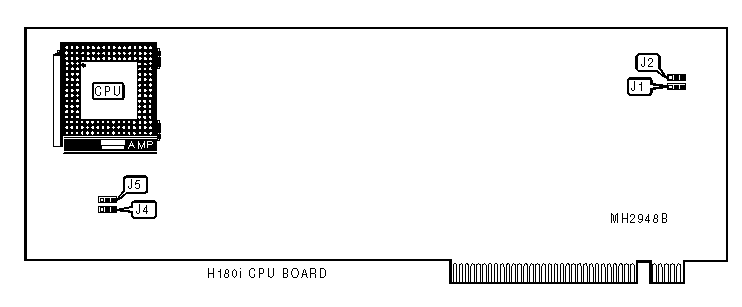

CPU TYPE CONFIGURATION
Type
J4
J5
80486SX
pins 2 & 3 closed
pins 2 & 3 closed
80486DX
pins 1 & 2 closed
pins 1 & 2 closed
80486DX2
pins 1 & 2 closed
pins 1 & 2 closed

CPU SPEED CONFIGURATION
Speed
J1
J2
25MHz
pins 2 & 3 closed
pins 2 & 3 closed
33MHz
pins 1 & 2 closed
pins 1 & 2 closed
50iMHz
pins 2 & 3 closed
pins 2 & 3 closed
66iMHz
pins 1 & 2 closed
pins 1 & 2 closed
