PC SERVER 315 (TYPE 8638) Motherboard Settings and Configuration

Processor	Pentium Pro
Processor Speed	180/200MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	512MB (EDO supported)
Maximum Video Memory	None
Cache	256KB (located on Pentium Pro CPU)
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	Floppy drive interface, serial port
NPU Options	None

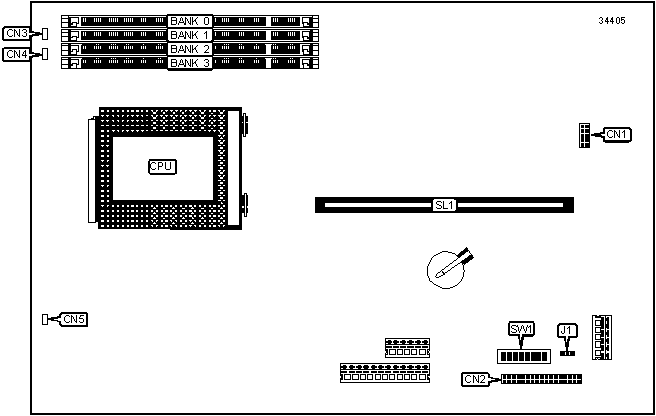

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 2	CN1	Power LED	CN4
Floppy drive interface	CN2	Chassis fan power	CN5
Chassis fan power	CN3	Riser slot	SL1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	J1	Pins 1 & 2 closed
	CMOS memory clear	J1	Pins 2 & 3 closed
	Serial port 2 enabled	SW1/7	On
	Serial port 2 disabled	SW1/7	Off
	Floppy drive normal operation	SW1/8	Off
	Floppy drive write protect	SW1/8	On

DIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
16MB	(1) 2M x 64	None	None	None
32MB	(1) 2M x 64	(1) 2M x 64	None	None
32MB	(1) 4M x 64	None	None	None
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	None
64MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
64MB	(1) 4M x 64	(1) 4M x 64	None	None
64MB	(1) 8M x 64	None	None	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	None
128MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
128MB	(1) 8M x 64	(1) 8M x 64	None	None
128MB	(1) 16M x 64	None	None	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	None
256MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64	None	None
384MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	None
512MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64
Note: Board accepts EDO memory.

CACHE CONFIGURATION

Note: 256KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3
180MHz	60MHz	3x	On	Off	On
200MHz	66MHz	3x	On	Off	On

CPU SPEED SELECTION (CON’T)
CPU speed	Clock speed	Multiplier	SW1/4	SW1/5	SW1/6
180MHz	60MHz	3x	On	On	Off
200MHz	66MHz	3x	On	Off	On
