PS/VALUEPOINT 6381 SX Motherboard Settings and Configuration

Processor	80486SX/80486DX/80486DX2
Processor Speed	25/50(internal)MHz
Chip Set	Intel
Max. Onboard DRAM	64MB
Cache	None
BIOS	IBM
Dimensions	330mm x 218mm
I/O Options	32-bit riser card slot, floppy drive interface, hard drive interface, parallel port, PS/2 mouse port, serial ports (2), video port
NPU Options	None

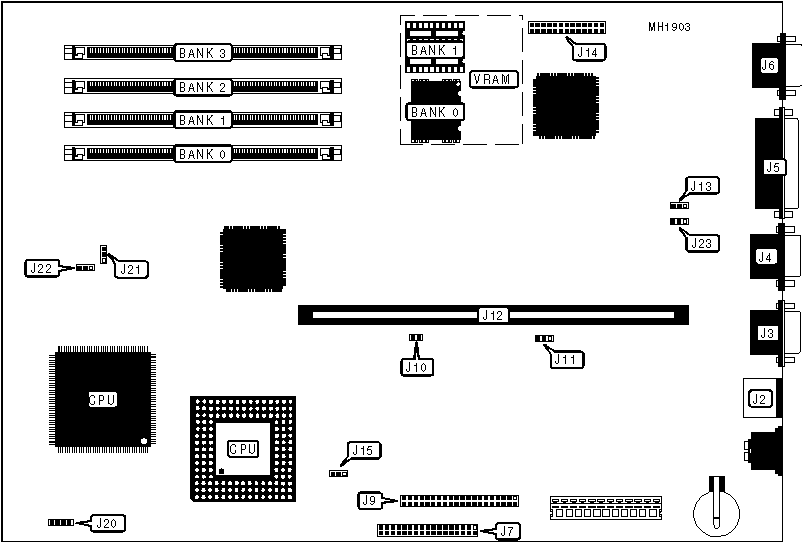

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse port	J2	Hard drive interface	J9
Serial port 1	J3	Riser Card	J12
Serial port 2	J4	VESA feature connector	J14
Parallel port	J5	Power LED & hard drive LED	J18
Video port	J6	Speaker	J25
Floppy drive interface	J7

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Mouse port disabled	J10	pins 1 & 2 closed
	Mouse port enabled	J10	pins 2 & 3 closed
»	Flash memory enabled	J11	pins 1 & 2 closed
	Flash memory disabled	J11	pins 2 & 3 closed
»	Video port enabled	J13	pins 1 & 2 closed
	Video port disabled	J13	pins 2 & 3 closed
»	Write protect enabled	J15	pins 1 & 2 closed
	Write protect disabled	J15	pins 2 & 3 closed
»	Speaker enabled	J22	pins 1 & 2 closed
	Speaker disabled	J22	pins 2 & 3 closed
»	Video interrupt disabled	J23	pins 1 & 2 closed
	Video interrupt enabled	J23	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
16MB	(1) 2M x 36	(1) 2M x 36	NONE	NONE
32MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
32MB	(1) 4M x 36	(1) 4M x 36	NONE	NONE
64MB	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36
64MB	(1) 8M x 36	(1) 8M x 36	NONE	NONE

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
512KB	(2) 512K x 4	None
1MB	(2) 512K x 4	(2) 512K x 4
