SUPER-286T Motherboard Settings and Configuration
HYUNDAI ELECTRONICS, INC.
SUPER-286T
Processor | 80286 |
Processor Speed | 12MHz |
Chip Set | VLSI |
Max. Onboard DRAM | 1MB |
Cache | None |
BIOS | Award |
Dimensions | 355mm x 304mm |
I/O Options | Parallel port, serial port, floppy drive interface, IDE interface |
NPU Options | 80287 |

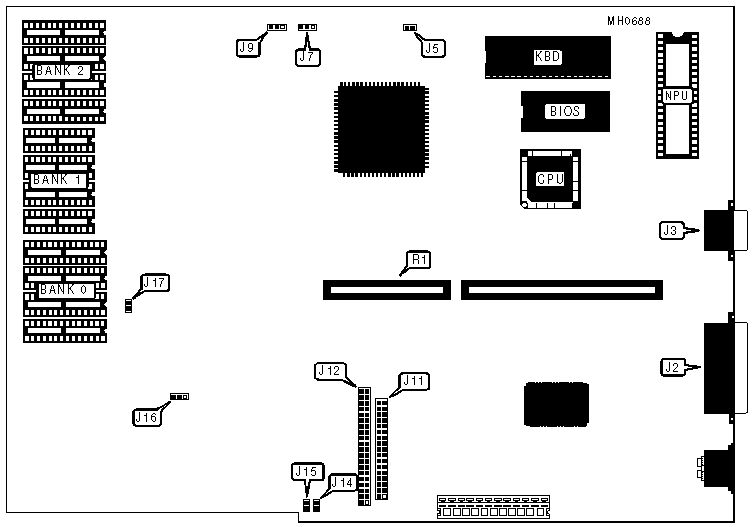

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Parallel port | J2 | Power LED | J15 |
Serial port | J3 | External battery | J16 |
Floppy drive interface | J11 | Speaker | J17 |
IDE interface | J12 | Riser card | R1 |
IDE interface LED | J14 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Jumper | Position | |
| » | Monitor type select color | J5 | Closed |
Monitor type select monochrome | J5 | Open | |
| » | Parallel port select LPT1/IRQ7 | J7 | pins 1 & 2 closed |
Parallel port select LPT2/IRQ5 | J7 | pins 2 & 3 closed | |
Parallel port disabled | J7 | Open | |
| » | Serial port select COM1/IRQ4 | J9 | pins 1 & 2 closed |
Serial port select COM2/IRQ3 | J9 | pins 2 & 3 closed | |
Serial port select disabled | J9 | Open | |
DRAM CONFIGURATION | |||
Size | Bank 0 | Bank 1 | Bank 2 |
640KB | (4) 44256 | (4) 4464 | NONE |
1MB | (4) 44256 | NONE | (4) 44256 |
Note:Bank 0 is factory installed and is not configurable. The location of parity chips are unidentified. | |||
