GA-686FX Motherboard Settings and Configuration

GIGA-BYTE TECHNOLOGY CO., LTD.

GA-686FX

Processor
Pentium Pro
Processor Speed
150/166/180/200MHz
Chip Set
Unidentified
Video Chip Set
None
Maximum Onboard Memory
512MB
Maximum Video Memory
None
Cache
256/512KB (located on Pentium Pro CPU)
BIOS
Award
Dimensions
330mm x 218mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector
NPU Options
None

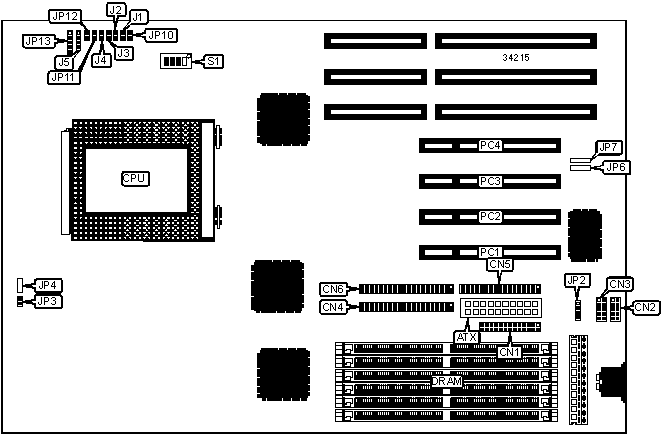

CONNECTIONS
Purpose
Location
Purpose
Location
ATX power connector
ATX
Speaker
J5
Parallel port
CN1
PS/2 mouse interface
JP2
Serial port 2
CN2
Chassis fan power
JP3
Serial port 1
CN3
USB connector
JP6
IDE interface 1
CN4
USB connector
JP7
Floppy drive interface
CN5
Soft off power supply
JP10
IDE interface 2
CN6
Turbo switch
JP11
IDE interface LED
J1
Turbo LED
JP12
Green PC connector
J2
Power LED & keylock
JP13
Green PC LED
J3
32-bit PCI slots
PC1 – PC4
Reset switch
J4

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Factory configured - do not alter
JP4
Unidentified

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
8MB
(2) 1M x 36
None
None
16MB
(2) 1M x 36
(2) 1M x 36
None
16MB
(2) 2M x 36
None
None
24MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
None
32MB
(2) 1M x 36
(2) 1M x 36
(2) 2M x 36
32MB
(2) 2M x 36
(2) 2M x 36
None
32MB
(2) 4M x 36
None
None
40MB
(2) 2M x 36
(2) 2M x 36
(2) 1M x 36
40MB
(2) 4M x 36
(2) 1M x 36
None
48MB
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
48MB
(2) 4M x 36
(2) 2M x 36
None
56MB
(2) 4M x 36
(2) 2M x 36
(2) 1M x 36
64MB
(2) 4M x 36
(2) 2M x 36
(2) 2M x 36
64MB
(2) 4M x 36
(2) 4M x 36
None
64MB
(2) 8M x 36
None
None
72MB
(2) 8M x 36
(2) 1M x 36
None
72MB
(2) 4M x 36
(2) 4M x 36
(2) 1M x 36
80MB
(2) 8M x 36
(2) 2M x 36
None
80MB
(2) 4M x 36
(2) 4M x 36
(2) 2M x 36
80MB
(2) 8M x 36
(2) 1M x 36
(2) 1M x 36
88MB
(2) 8M x 36
(2) 2M x 36
(2) 1M x 36
96MB
(2) 8M x 36
(2) 2M x 36
(2) 2M x 36

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
96MB
(2) 8M x 36
(2) 4M x 36
None
96MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
104MB
(2) 8M x 36
(2) 4M x 36
(2) 1M x 36
112MB
(2) 8M x 36
(2) 4M x 36
(2) 2M x 36
128MB
(2) 16M x 36
None
None
128MB
(2) 8M x 36
(2) 8M x 36
None
128MB
(2) 8M x 36
(2) 4M x 36
(2) 4M x 36
136MB
(2) 16M x 36
(2) 1M x 36
None
136MB
(2) 8M x 36
(2) 8M x 36
(2) 1M x 36
144MB
(2) 16M x 36
(2) 1M x 36
(2) 1M x 36
144MB
(2) 16M x 36
(2) 2M x 36
None
144MB
(2) 8M x 36
(2) 8M x 36
(2) 2M x 36
152MB
(2) 16M x 36
(2) 2M x 36
(2) 1M x 36
160MB
(2) 16M x 36
(2) 2M x 36
(2) 2M x 36
160MB
(2) 16M x 36
(2) 4M x 36
None
168MB
(2) 16M x 36
(2) 4M x 36
(2) 1M x 36
176MB
(2) 16M x 36
(2) 4M x 36
(2) 2M x 36
192MB
(2) 16M x 36
(2) 4M x 36
(2) 4M x 36
192MB
(2) 16M x 36
(2) 8M x 36
None
200MB
(2) 16M x 36
(2) 8M x 36
(2) 1M x 36
208MB
(2) 16M x 36
(2) 8M x 36
(2) 2M x 36
224MB
(2) 16M x 36
(2) 8M x 36
(2) 4M x 36
256MB
(2) 16M x 36
(2) 8M x 36
(2) 8M x 36
256MB
(2) 16M x 36
(2) 16M x 36
None
256MB
(2) 32M x 36
None
None
264MB
(2) 16M x 36
(2) 16M x 36
(2) 1M x 36
264MB
(2) 32M x 36
(2) 1M x 36
None
272MB
(2) 16M x 36
(2) 16M x 36
(2) 2M x 36
272MB
(2) 32M x 36
(2) 2M x 36
None
280MB
(2) 32M x 36
(2) 2M x 36
(2) 1M x 36
288MB
(2) 32M x 36
(2) 2M x 36
(2) 2M x 36
288MB
(2) 32M x 36
(2) 4M x 36
None
296MB
(2) 32M x 36
(2) 4M x 36
(2) 1M x 36
304MB
(2) 32M x 36
(2) 4M x 36
(2) 2M x 36
320MB
(2) 32M x 36
(2) 4M x 36
(2) 4M x 36
320MB
(2) 32M x 36
(2) 8M x 36
None
328MB
(2) 32M x 36
(2) 8M x 36
(2) 1M x 36
336MB
(2) 32M x 36
(2) 8M x 36
(2) 2M x 36
352MB
(2) 32M x 36
(2) 8M x 36
(2) 4M x 36
384MB
(2) 32M x 36
(2) 8M x 36
(2) 8M x 36

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
384MB
(2) 32M x 36
(2) 16M x 36
None
392MB
(2) 32M x 36
(2) 16M x 36
(2) 1M x 36
400MB
(2) 32M x 36
(2) 16M x 36
(2) 2M x 36
416MB
(2) 32M x 36
(2) 16M x 36
(2) 4M x 36
448MB
(2) 32M x 36
(2) 16M x 36
(2) 8M x 36
512MB
(2) 32M x 36
(2) 16M x 36
(2) 16M x 36
512MB
(2) 32M x 36
(2) 32M x 36
None

CACHE CONFIGURATION
Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION
CPU speed
S1/1
S1/2
S1/3
S1/4
150MHz
On
On
Off
Off
166MHz
Off
On
Off
Off
180MHz
On
Off
On
Off
200MHz
Off
Off
On
Off
