P6F90I Motherboard Settings and Configuration

Device Type	Mainboard
Processor	Pentium II/Celeron
Processor Speed	233/266/300/333
Chip Set	Intel 440LX
Maximum Onboard Memory	384MB (EDO & SDRAM supported)
Cache	0/128/256/512KB (located on the CPU)
BIOS	Award
Dimensions	200mm x 304mm
I/O Options	32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot

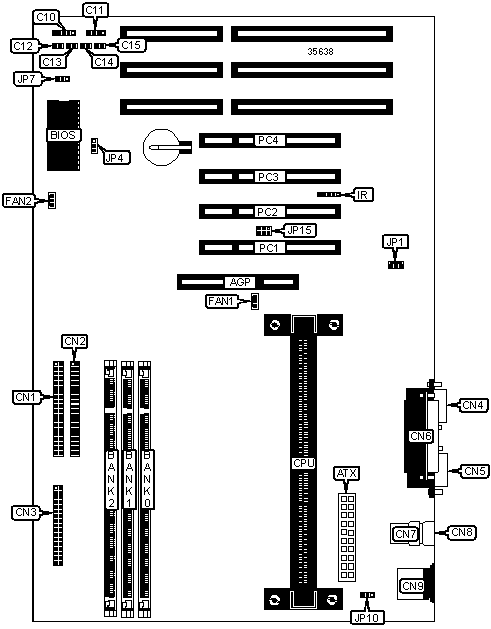

CONNECTIONS
Purpose	Location	Purpose	Location
AGP slot	AGP	Parallel port	CN6
ATX power connector	ATX	USB connector 1	CN7
Speaker	C11	USB connector 2	CN8
Power switch	C12	PS/2 mouse port	CN9
Reset switch	C13	Power LED & keylock	C10
Green PC LED	C14	CPU fan power	FAN1
IDE interface LED	C15	Chassis fan power	FAN2
IDE interface 2	CN1	IR connector	IR
IDE interface 1	CN2	WAKE on LAN connector	JP1
Floppy drive interface	CN3	SB link connector	JP15
Serial port 2	CN4	32-bit PCI slots	PC1 - PC4
Serial port 1	CN5

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JP4	Pins 1 & 2 closed
	CMOS memory clear	JP4	Pins 2 & 3 closed
»	Auto power on disabled	JP7	Pins 2 & 3 closed
	Auto power on enabled	JP7	Pins 1 & 2 closed
»	Keyboard and mouse use 5v standby power	JP10	Pins 2 & 3 closed
	Keyboard and mouse use 5v power enabled	JP10	Pins 1 & 2 closed

DIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
8MB	(1) 1M x 64	None	None
16MB	(1) 1M x 64	(1) 1M x 64	None
16MB	(1) 2M x 64	None	None
24MB	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64
24MB	(1) 2M x 64	(1) 1M x 64	None
32MB	(1) 2M x 64	(1) 2M x 64	None
32MB	(1) 4M x 64	None	None
40MB	(1) 2M x 64	(1) 2M x 64	(1) 1M x 64
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
48MB	(1) 4M x 64	(1) 2M x 64	None
64MB	(1) 4M x 64	(1) 4M x 64	None
64MB	(1) 8M x 64	None	None
80MB	(1) 4M x 64	(1) 4M x 64	(1) 2M x 64
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
96MB	(1) 8M x 64	(1) 4M x 64	None
128MB	(1) 8M x 64	(1) 8M x 64	None
128MB	16M x 64	None	None
160MB	(1) 8M x 64	(1) 8M x 64	(1) 4M x 64
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
192MB	(1) 16M x 64	(1) 8M x 64	None
256MB	(1) 16M x 64	(1) 16M x 64	None
320MB	(1) 16M x 64	(1) 16M x 64	(1) 8M x 64
384MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64

CACHE CONFIGURATION

The 128KB cache is location on the Cleleron 300A & 333. The 256/512KB cache is located on the Pentium II CPU.
