OP496PI 486DX/SX Motherboard Settings and Configuration






EVERSOURCE COMPUTERS, INC.

OP496PI 486DX/SX

Processor

80486SX/80486DX

Processor Speed

25/33/40MHz

Chip Set

OPTI

Max. Onboard DRAM

32MB

Cache

None

BIOS

AMI

Dimensions

230mm x 220mm

I/O Options

None

NPU Options

None

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J4

Turbo switch

JP4

Speaker

J14

Turbo LED

JP7

Power LED & keylock

J17

Reset switch

JP8

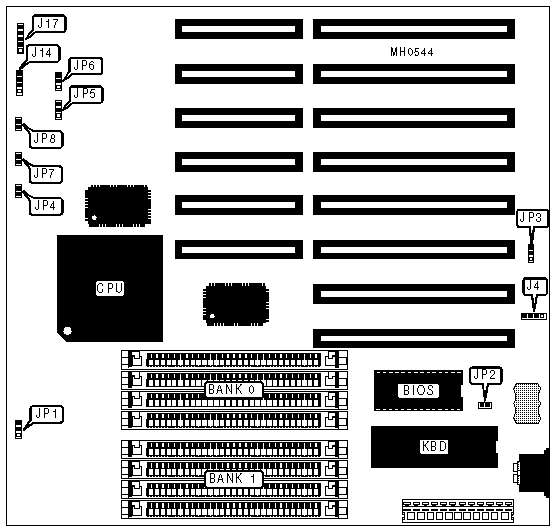

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

Monitor type select color

JP2

Closed



Monitor type select monochrome

JP2

Open

CMOS memory normal operation

JP3

pins 2 & 3 closed



CMOS memory clear

JP3

pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

5MB

(4) 256K x 9

(4) 1 M x 9

8MB

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

32MB

(4) 4M x 9

(4) 4M x 9

CPU TYPE CONFIGURATION

Type

JP1

JP5

JP6

80486SX

Open

Open

pins 2 & 3 closed

80487SX

pins 2 & 3 closed

pins 1 & 2 closed

pins 1 & 2 closed

80486DX

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed
