P6KFX-A Motherboard Settings and Configuration

ELITEGROUP COMPUTER SYSTEMS, INC.

P6KFX-A

Processor
Pentium II
Processor Speed
233/266MHz
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
384MB (EDO supported)
Maximum Video Memory
None
Cache
256/512KB (located on Pentium II CPU)
BIOS
Award
Dimensions
305mm x 244mm
I/O Options
32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connectors (2), USB connectors (2), ATX power connector
NPU Options
None

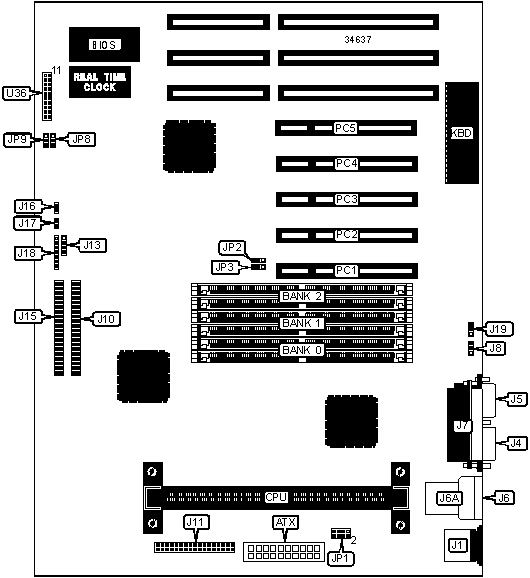

CONNECTIONS
Purpose
Location
Purpose
Location
ATX power connector
ATX
IDE interface 1
J15
PS/2 mouse port
J1
Soft off power supply
J16
Serial port 1
J4
IDE interface LED
J17
Serial port 2
J5
Fast IR connector
J18
USB connector
J6
CPU fan power
J19
USB connector
J6A
32-bit PCI slots
PC1 – PC5
Parallel port
J7
Green PC LED
U36/pins 2 & 3
Chassis fan power
J8
Green PC connector
U36/pins 4 & 5
IDE interface 2
J10
Reset switch
U36/pins 9 & 10
Floppy drive interface
J11
Power LED
U36/pins 11 - 13
IR connector
J13
Speaker
U36/pins 17 - 20

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Password normal operation
JP8
Pins 1 & 2 closed

Password clear
JP8
Pins 2 & 3 closed
»
CMOS memory normal operation
JP9
Pins 1 & 2 closed

CMOS memory clear
JP9
Pins 2 & 3 closed

SIMM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
8MB
(2) 1M x 36
None
None
16MB
(2) 1M x 36
(2) 1M x 36
None
16MB
(2) 2M x 36
None
None
24MB
(2) 2M x 36
(2) 1M x 36
None
24MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
32MB
(2) 4M x 36
None
None
32MB
(2) 2M x 36
(2) 2M x 36
None
40MB
(2) 4M x 36
(2) 1M x 36
None
48MB
(2) 4M x 36
(2) 2M x 36
None
48MB
(2) 4M x 36
(2) 1M x 36
(2) 1M x 36
56MB
(2) 4M x 36
(2) 2M x 36
(2) 1M x 36
64MB
(2) 8M x 36
None
None
64MB
(2) 4M x 36
(2) 4M x 36
None
80MB
(2) 8M x 36
(2) 2M x 36
None
80MB
(2) 8M x 36
(2) 1M x 36
(2) 1M x 36
88MB
(2) 8M x 36
(2) 2M x 36
(2) 1M x 36
96MB
(2) 8M x 36
(2) 4M x 36
None
96MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
96MB
(2) 8M x 36
(2) 2M x 36
(2) 2M x 36
104MB
(2) 8M x 36
(2) 4M x 36
(2) 1M x 36

SIMM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
112MB
(2) 8M x 36
(2) 4M x 36
(2) 2M x 36
128MB
(2) 8M x 36
(2) 4M x 36
(2) 4M x 36
128MB
(2) 16M x 36
None
None
128MB
(2) 8M x 36
(2) 8M x 36
None
136MB
(2) 8M x 36
(2) 8M x 36
(2) 1M x 36
136MB
(2) 16M x 36
(2) 1M x 36
None
144MB
(2) 16M x 36
(2) 2M x 36
None
144MB
(2) 16M x 36
(2) 1M x 36
(2) 1M x 36
152MB
(2) 16M x 36
(2) 2M x 36
(2) 1M x 36
160MB
(2) 16M x 36
(2) 4M x 36
None
160MB
(2) 16M x 36
(2) 2M x 36
(2) 2M x 36
168MB
(2) 16M x 36
(2) 4M x 36
(2) 1M x 36
176MB
(2) 16M x 36
(2) 4M x 36
(2) 2M x 36
192MB
(2) 16M x 36
(2) 8M x 36
None
192MB
(2) 16M x 36
(2) 4M x 36
(2) 4M x 36
200MB
(2) 16M x 36
(2) 8M x 36
(2) 1M x 36
208MB
(2) 16M x 36
(2) 8M x 36
(2) 2M x 36
224MB
(2) 16M x 36
(2) 8M x 36
(2) 4M x 36
256MB
(2) 16M x 36
(2) 16M x 36
None
256MB
(2) 16M x 36
(2) 8M x 36
(2) 8M x 36
264MB
(2) 16M x 36
(2) 16M x 36
(2) 1M x 36
272MB
(2) 16M x 36
(2) 16M x 36
(2) 2M x 36
288MB
(2) 16M x 36
(2) 16M x 36
(2) 4M x 36
320MB
(2) 16M x 36
(2) 16M x 36
(2) 8M x 36
384MB
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
Note: Board accepts EDO memory.

CACHE CONFIGURATION
Note: 256KB/512KB cache is located on the Pentium II CPU.

CPU SPEED SELECTION
CPU speed
Clock speed
Multiplier
JP1
JP2
JP3
233MHz
66MHz
3.5x
5 & 6, 7 & 8
1 & 2
2 & 3
266MHz
66MHz
4x
1 & 2, 3 & 4, 7 & 8
1 & 2
2 & 3
Note: Pins designated should be in the closed position.
