ECA 510 Motherboard Settings and Configuration

EFA CORPORATION

ECA 510

Processor
80386DX/80486SX/80486DX
Processor Speed
16/20/25/33/40/50MHz
Chip Set
UMC
Max. Onboard DRAM
32MB
Cache
64/128/256KB
BIOS
AMI
Dimensions
280mm x 218mm
I/O Options
None
NPU Options
4167

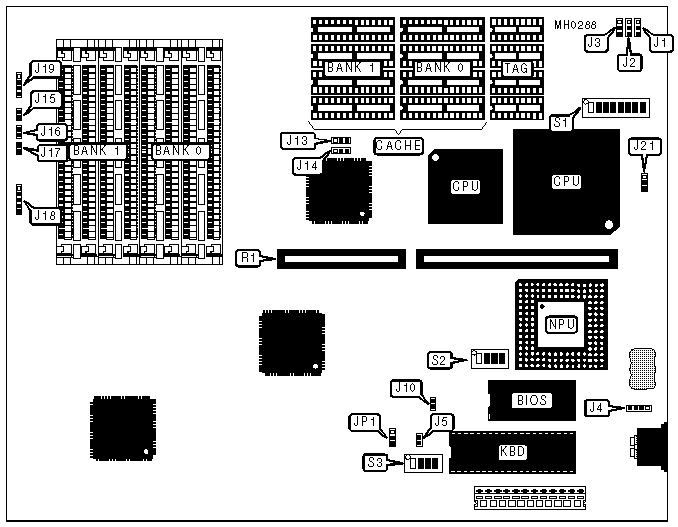

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
J4
Power LED & keylock
J18
Reset switch
J15
Speaker
J19
Turbo LED
J16
Riser card
R1
Turbo switch
J17

USER CONFIGURABLE SETTINGS
Function
Jumper/Switch
Position
»
Monitor type select color
J5
Open

Monitor type select monochrome
J5
Closed
»
Factory configured - do not alter
J10
N/A
»
Factory configured - do not alter
J21
N/A
»
BIOS type select 27512
JP1
pins 2 & 3 closed

BIOS type select 271024
JP1
pins 1 & 2 closed
»
Factory configured - do not alter
S1/5
N/A
»
Factory configured - do not alter
S1/8
N/A

DRAM CONFIGURATION
Size
Bank 0
Bank 1
1MB
(4) 256K x 9
NONE
2MB
(4) 256K x 9
(4) 256K x 9
4MB
(4) 1M x 9
NONE
5MB
(4) 256K x 9
(4) 1M x 9
8MB
(4) 1M x 9
(4) 1M x 9
16MB
(4) 4M x 9
NONE
20MB
(4) 1M x 9
(4) 4M x 9
32MB
(4) 4M x 9
(4) 4M x 9

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG
64KB
(4) 8K x 8
(4) 8K x 8
(4) 16K x 4
128KB
(4) 32K x 8
NONE
(4) 16K x 4
256KB
(4) 32K x 8
(4) 32K x 8
(4) 16K x 4

CACHE JUMPER CONFIGURATION
Size
J1
J2
J3
J13
J14
64KB
2 & 3
1 & 2
1 & 2
1 & 2
N/A
128KB
2 & 3
2 & 3
1 & 2
2 & 3
1 & 2
256KB
2 & 3
2 & 3
2 & 3
1 & 2
2 & 3
Note:Pins designated should be in the closed position.

CPU SWITCH CONFIGURATION (A)
Type
S1/1
S1/2
S1/3
S1/4
S1/6
S1/7
S3/1
S3/2
S3/3
S3/4
80386DX
On
On
On
On
Off
Off
On
On
Off
Off
80486SX
Off
Off
Off
Off
On
On
Off
Off
On
On
80486DX
Off
Off
Off
Off
On
On
On
On
Off
Off
Note: All CPU configurations (Tables A & B) must be set for proper operation.

CPU TYPE CONFIGURATION (B)
Type
S2/1
S2/2
S2/3
S2/4
80386DX-16
Off
Off
On
On
80386DX-20
Off
Off
On
Off
80386DX-33
On
On
Off
On
80386DX-40
On
On
On
On
80486SX-20
On
Off
On
Off
80486DX-25
On
Off
Off
Off
80486DX-33
On
Off
Off
On
80486DX-50
Off
Off
Off
Off
