586PCI (MP033) Motherboard Settings and Configuration

EDOM INTERNATIONAL CORPORATION

586PCI (MP033)

Processor
Pentium
Processor Speed
60/66MHz
Chip Set
OPTI
Max. Onboard DRAM
128MB
Cache
128/256/512/1024KB
BIOS
Award
Dimensions
330mm x 218mm
I/O Options
32-bit VESA local bus slots (3), 32-bit PCI slots (4)
NPU Options
None

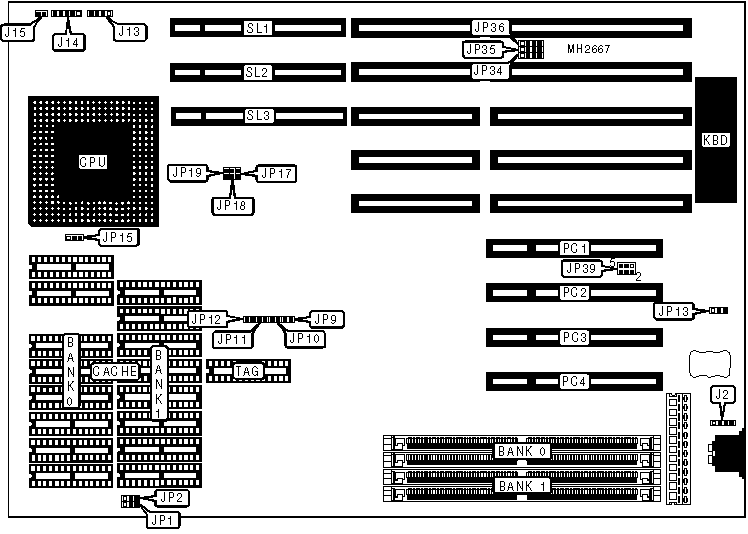

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
J2
Reset switch
J15
Speaker
J13
32-bit PCI slots
PC1 - PC4
Power LED & keylock
J14
32-bit VESA local bus slots
SL1 - SL3

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
CMOS memory normal operation
JP13
pins 2 & 3 closed

CMOS memory clear
JP13
pins 1 & 2 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
2MB
(2) 256K x 36
NONE
4MB
(2) 512K x 36
NONE
4MB
(2) 256K x 36
(2) 256K x 36
8MB
(2) 1M x 36
NONE
8MB
(2) 512K x 36
(2) 512K x 36
16MB
(2) 2M x 36
NONE
16MB
(2) 1M x 36
(2) 1M x 36
32MB
(2) 4M x 36
NONE
32MB
(2) 2M x 36
(2) 2M x 36
64MB
(2) 8M x 36
NONE
64MB
(2) 4M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG
128KB
(8) 8K x 8
(8) 8K x 8
(1) 8K x 8
256KB
(8) 32K x 8
NONE
(1) 8K x 8
512KB
(8) 32K x 8
(8) 32K x 8
(1) 32K x 8
512KB
(8) 64K x 8
NONE
(1) 32K x 8
1MB
(8) 64K x 8
(8) 64K x 8
(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size
JP1
JP2
JP9
JP10
JP11
JP12
JP15
128KB
2 & 3
2 & 3
Closed
Open
Open
Open
2 & 3
256KB
1 & 2
1 & 2
Closed
Closed
Open
Open
1 & 2
512KB
2 & 3
2 & 3
Closed
Closed
Closed
Open
2 & 3
512KB
1 & 2
1 & 2
Closed
Closed
Closed
Open
1 & 2
1MB
1 & 2
1 & 2
Closed
Closed
Closed
Closed
1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED CONFIGURATION (MX8315)
Speed
JP17
JP18
JP19
60MHz
Closed
Open
Closed
66MHz
Open
Closed
Open

CPU SPEED CONFIGURATION (IMI468)
Speed
JP17
JP18
JP19
60MHz
Closed
Closed
Closed
66MHz
Closed
Open
Closed

PCI IRQ CONFIGURATION
Setting
JP36
IRQ11
pins 2 & 3 closed
IRQ11 (old version of PCI card)
pins 1 & 2, 3 & 4 closed

PCI IRQ CONFIGURATION
Setting
JP35
IRQ12
pins 2 & 3 closed
IRQ12 (old version of PCI card)
pins 1 & 2, 3 & 4 closed

PCI IRQ CONFIGURATION
Setting
JP34
IRQ15
pins 2 & 3 closed
IRQ15 (old version of PCI card)
pins 1 & 2, 3 & 4 closed

PCI IRQ CONFIGURATION (PCI SLOT 2 ONLY)
Setting
JP39
INTA#2
pins 1 & 2 closed
IRQ14 (edge trigger)
pins 3 & 4 closed
IRQ15 (edge trigger)
pins 5 & 6 closed
