PKM-2500 (VER. 1.20) Motherboard Settings and Configuration

DTK COMPUTER, INC.

PKM-2500 (VER. 1.20)

Processor
80486SX
Processor Speed
25MHz
Chip Set
VLSI
Max. Onboard DRAM
16MB (8MB on external memory card)
Cache
64/256KB
BIOS
DTK/Phoenix
Dimensions
355mm x 305mm
I/O Options
32-bit external memory card (PEI-306)
NPU Options
4167

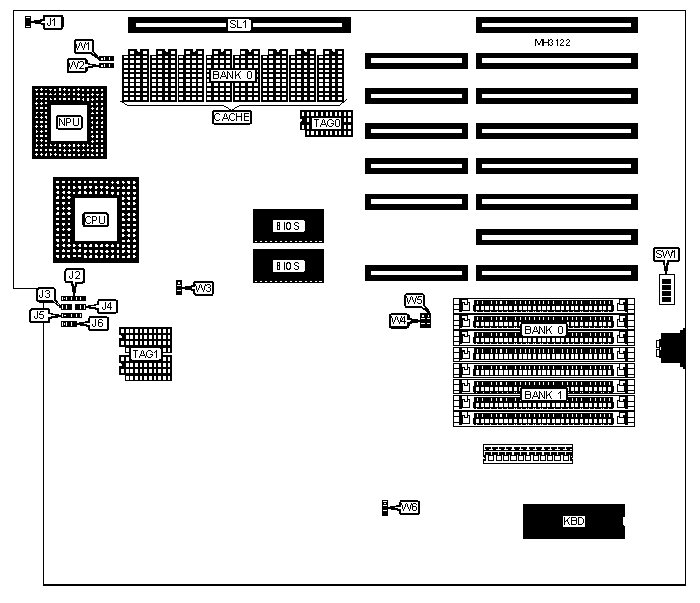

CONNECTIONS
Purpose
Location
Purpose
Location
Chassis fan power
J1
Speaker
J5
Power LED & keylock
J2
Turbo switch
J6
Turbo LED
J3
32-bit external memory card
SL1
Reset switch
J4

USER CONFIGURABLE SETTINGS
Function
Jumper/Switch
Position

BIOS type select 27256
W3
pins 1 & 2 closed

BIOS type select 27512
W3
pins 2 & 3 closed
»
Factory configured - do not alter
W6
N/A

Monitor type select color
SW1/4
On

Monitor type select monochrome
SW1/4
Off

CACHE CONFIGURATION
Size
Bank 0
TAG 0
TAG 1
64KB
(8) 16K x 4
(1) 16K x 1
(2) 16K x 4
256KB
(8) 64K x 4
(1) 64K x 1
(2) 64K x 4

CACHE JUMPER CONFIGURATION
Size
W1
W2
64KB
pins 1 & 2 closed
pins 1 & 2 closed
256KB
pins 2 & 3 closed
pins 2 & 3 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 0A
Bank 1A
Bank 2A
1MB
(4) 256K x 9
NONE
NONE
NONE
NONE
2MB
(4) 256K x 9
(4) 256K x 9
NONE
NONE
NONE
3MB
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
NONE
NONE
4MB (A)
(4) 1M x 9
NONE
NONE
NONE
NONE
4MB (B)
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
NONE
5MB
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
6MB
(4) 256K x 9
(4) 256K x 9
(4) 1M x 9
NONE
NONE
8MB
(4) 1M x 9
(4) 1M x 9
NONE
NONE
NONE
9MB
(4) 1M x 9
(4) 1M x 9
(4) 256K x 9
NONE
NONE
10MB (A)
(4) 1M x 9
(4) 1M x 9
(4) 256K x 9
(4) 256K x 9
NONE
10MB (B)
(4) 256K x 9
(4) 256K x 9
(4) 1M x 9
(4) 1M x 9
NONE
11MB
(4) 1M x 9
(4) 1M x 9
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
12MB
(4) 1M x 9
(4) 1M x 9
(4) 1M x 9
NONE
NONE
14MB
(4) 256K x 9
(4) 256K x 9
(4) 1M x 9
(4) 1M x 9
(4) 1M x 9
16MB
(4) 1M x 9
(4) 1M x 9
(4) 1M x 9
(4) 1M x 9
NONE

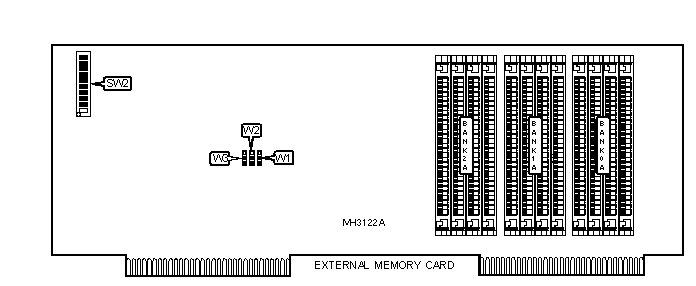

Note: Banks 0A, 1A, and 2A are located on the external memory card

DRAM JUMPER CONFIGURATION
Size
W1
W2
W3
W4
W5
1MB
N/A
N/A
N/A
2 & 3
2 & 3
2MB
N/A
N/A
N/A
2 & 3
2 & 3
3MB
2 & 3
2 & 3
2 & 3
2 & 3
2 & 3
4MB (A)
N/A
N/A
N/A
1 & 2
1 & 2
4MB (B)
2 & 3
2 & 3
2 & 3
2 & 3
2 & 3
5MB
2 & 3
2 & 3
2 & 3
2 & 3
2 & 3
6MB
1 & 2
1 & 2
1 & 2
2 & 3
2 & 3
8MB
N/A
N/A
N/A
1 & 2
1 & 2
9MB
2 & 3
2 & 3
2 & 3
1 & 2
1 & 2
10MB (A)
2 & 3
2 & 3
2 & 3
1 & 2
1 & 2
10MB (B)
1 & 2
1 & 2
1 & 2
2 & 3
2 & 3
11MB
2 & 3
2 & 3
2 & 3
1 & 2
1 & 2
12MB
1 & 2
1 & 2
1 & 2
1 & 2
1 & 2
14MB
1 & 2
1 & 2
1 & 2
2 & 3
2 & 3
16MB
1 & 2
1 & 2
1 & 2
1 & 2
1 & 2
Note: W4, W5 are located on the mainboard.

DRAM SWITCH CONFIGURATION (CON’T)
Size
SW1/1
SW1/2
SW1/3
1MB
On
On
On
2MB
On
On
On
3MB
On
On
On
4MB (A)
On
On
Off
4MB (B)
On
On
On
5MB
On
Off
On
6MB
On
Off
On
8MB
On
Off
Off
9MB
Off
On
Off
10MB (A)
Off
On
Off
10MB (B)
Off
On
On
11MB
Off
On
Off
12MB
Off
On
Off
14MB
Off
Off
On
16MB
Off
Off
Off
Note: SW1 is located on the mainboard.

DRAM SWITCH CONFIGURATION (CON’T)
Size
SW2/1
SW2/2
SW2/3
SW2/4
SW2/5
1MB
N/A
N/A
N/A
N/A
N/A
2MB
N/A
N/A
N/A
N/A
N/A
3MB
On
On
Off
Off
On
4MB (A)
N/A
N/A
N/A
N/A
N/A
4MB (B)
On
On
Off
Off
On
5MB
On
On
Off
Off
On
6MB
On
Off
Off
Off
On
8MB
N/A
N/A
N/A
N/A
N/A
9MB
On
On
On
Off
Off
10MB (A)
On
On
On
Off
Off
10MB (B)
On
Off
Off
Off
On
11MB
On
On
On
Off
Off
12MB
On
Off
On
Off
Off
14MB
On
Off
Off
Off
On
16MB
On
Off
On
Off
Off
Note: SW2 is located on the memory card

DRAM SWITCH CONFIGURATION (CON’T)
Size
SW2/6
SW2/7
SW2/8
SW2/9
SW2/10
1MB
N/A
N/A
N/A
N/A
N/A
2MB
N/A
N/A
N/A
N/A
N/A
3MB
Off
Off
On
On
N/A
4MB (A)
N/A
N/A
N/A
N/A
N/A
4MB (B)
Off
Off
On
On
N/A
5MB
Off
Off
On
On
N/A
6MB
Off
Off
On
On
N/A
8MB
N/A
N/A
N/A
N/A
N/A
9MB
Off
Off
On
On
N/A
10MB (A)
Off
Off
On
On
N/A
10MB (B)
Off
Off
On
On
N/A
11MB
Off
Off
On
On
N/A
12MB
Off
Off
On
On
N/A
14MB
Off
Off
On
On
N/A
16MB
Off
Off
On
On
N/A
Note: SW2 is located on the memory card.
