G486-EVB (REV. A) Motherboard Settings and Configuration

DIAMOND FLOWER, INC.

G486-EVB (REV. A)

Processor
CX486S/80486SX/SL80486SX/CX486S2/CX486DX/AM486DXL/80486DX/SL80486DX/CX486DX2/AM486DXT(NV8T)/80486DX2/SL80486DX2/SL80486DX4
Processor Speed
25/33/40/50(internal)/66(internal)/75(internal)/80(internal)/ 100(internal)MHz
Chip Set
Unidentified
Video Chip Set
None
Maximum Onboard Memory
64MB
Maximum Video Memory
None
Cache
128/256/512KB
BIOS
Unidentified
Dimensions
330mm x 218mm
I/O Options
32-bit VESA local bus slots (3), green PC connector
NPU Options
None

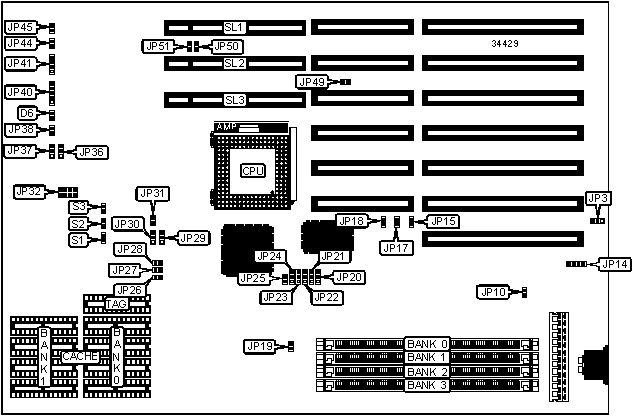

CONNECTIONS
Purpose
Location
Purpose
Location
Green PC LED
D6
Green PC connector
JP44
External battery
JP14
Reset switch
JP45
Power LED & keylock
JP40
32-bit VESA local bus slots
SL1 – SL3
Speaker
JP41

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Battery type select external
JP3
Pins 1 & 2 closed

Battery type select internal
JP3
Pins 2 & 3 closed
»
BIOS type select 27512
JP10
Open

BIOS type select 28F010
JP10
Closed
»
Factory configured - do not alter
JP15
Closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
1MB
(1) 256K x 36
None
None
None
4MB
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
4MB
(1) 1M x 36
None
None
None
8MB
(1) 1M x 36
(1) 1M x 36
None
None
16MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
16MB
(1) 4M x 36
None
None
None
32MB
(1) 4M x 36
(1) 4M x 36
None
None
64MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG
128KB
(4) 32K x 8
None
(1) 8K x 8
256KB
(4) 32K x 8
(4) 32K x 8
(1) 32K x 8
512KB
(4) 128K x 8
None
(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size
JP19
JP20
JP21
JP26
JP27
JP28
128KB
Open
2 & 3
2 & 3
Closed
Closed
Open
256KB
Open
1 & 2
1 & 2
Closed
Closed
Closed
512KB
Closed
2 & 3
1 & 2
Closed
Closed
Closed
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION
Speed
JP36
JP37
S1
S2
S3
25MHz
1 & 2
1 & 2
Closed
Open
Open
33MHz
1 & 2
1 & 2
Closed
Closed
Closed
40MHz
1 & 2
1 & 2
Closed
Closed
Open
50iMHz
1 & 2
1 & 2
Closed
Open
Open
66iMHz
1 & 2
1 & 2
Closed
Closed
Closed
75iMHz
1 & 2
1 & 2
Closed
Open
Open
80iMHz
1 & 2
1 & 2
Closed
Closed
Open
100iMHz
1 & 2
1 & 2
Closed
Closed
Closed
120iMHz
1 & 2
1 & 2
Closed
Closed
Open
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type
JP17
JP18
JP22
JP23
JP24
CX486S
Closed
Open
2 & 3
2 & 3
2 & 3
80486SX
Open
Open
N/A
N/A
N/A
SL80486SX
Open
Open
1 & 2
1 & 2
1 & 2
CX486S2
Closed
Open
2 & 3
2 & 3
2 & 3
CX486DX
Closed
Closed
2 & 3
2 & 3
2 & 3
AM486DXL
Open
Open
Open
Open
Open
80486DX
Open
Open
N/A
N/A
N/A
SL80486DX
Open
Open
1 & 2
1 & 2
1 & 2
CX486DX2
Closed
Closed
2 & 3
2 & 3
2 & 3
AM486DX2 (NV8T)
Open
Open
Open
Open
Open
80486DX2
Open
Open
N/A
N/A
N/A
SL80486DX2
Open
Open
1 & 2
1 & 2
1 & 2
SL80486DX4
Open
Open
1 & 2
1 & 2
1 & 2
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION (CON’T)
Type
JP25
JP29
JP30
JP31
JP49
CX486S
Open
2 & 3
Open
Open
Open
80486SX
N/A
2 & 3
Open
Open
N/A
SL80486SX
Open
2 & 3
Open
Open
Open
CX486S2
Open
2 & 3
Open
Open
Open
CX486DX
Open
1 & 2
2 & 3
Closed
Open
AM486DXL
Closed
1 & 2
2 & 3
Closed
Closed
80486DX
N/A
1 & 2
2 & 3
Closed
N/A
SL80486DX
Open
1 & 2
2 & 3
Closed
Open
CX486DX2
Open
1 & 2
2 & 3
Closed
Open
AM486DX2 (NV8T)
Open
1 & 2
2 & 3
Closed
Open
80486DX2
N/A
1 & 2
2 & 3
Closed
N/A
SL80486DX2
Open
1 & 2
2 & 3
Closed
Open
SL80486DX4
Open
1 & 2
2 & 3
Closed
Open
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type
JP38
SL-enhanced
Open
Non SL-enhanced
Closed

CPU VOLTAGE SELECTION
Voltage
JP32

3.3v
Pins 5 & 6, 7 & 8 closed
»
5v
Pins 1 & 2, 3 & 4 closed

VL BUS WAIT STATE SELECTION
Setting
JP50

0
Open
»
1
Closed

VL BUS SPEED SELECTION
Speed
JP51

<= 33MHz
Open
»
>33 MHz
Closed
