RACER-286 Motherboard Settings and Configuration

DIAMOND FLOWER, INC.

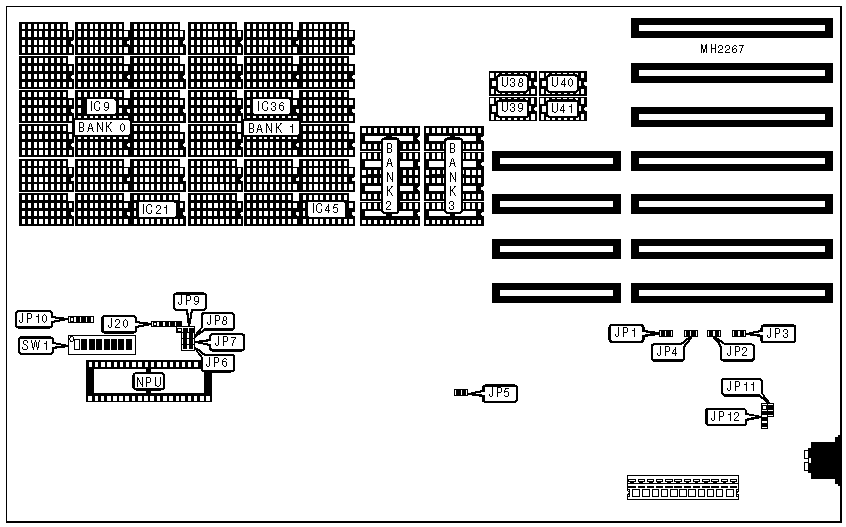

RACER-286

Processor
80286 (exact location unknown)
Processor Speed
6/12.5MHz
Chip Set
Suntac
Max. Onboard DRAM
4MB
Cache
None
BIOS
Unidentified
Dimensions
330mm x 218mm
I/O Options
None
NPU Options
80287

CONNECTIONS
Purpose
Location
Purpose
Location
Power LED & keylock
J20
External battery
JP12
Turbo LED
JP8
Reset switch
JP6
Speaker
JP10

USER CONFIGURABLE SETTINGS
Function
Jumper/Switch
Position
»
Wait state select 0 wait states
JP5
Closed

Wait state select 1 wait state
JP5
Open
»
Clock speed control keyboard
JP9
pins 1 & 2 closed

Clock speed control DIP switch
JP9
pins 2 & 3 closed
»
On board battery enabled
JP11
Closed

On board battery disabled
JP11
Open
»
Monitor type select color
SW1/2
On

Monitor type select monochrome
SW1/2
Off
»
Parity check enabled
SW1/3
On

Parity check disabled
SW1/3
Off
»
Port address select 0E8H
SW1/4
On

Port address select 098H
SW1/4
Off
»
BIOS type select 27128
SW1/5
On

BIOS type select 27256
SW1/5
Off

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
512KB
(16) 41256
NONE
NONE
NONE
512KB
NONE
NONE
(4) 44256
NONE
640KB
(16) 41256
(16) 4164
NONE
NONE
1MB
(16) 41256
(16) 41256
NONE
NONE
1MB
NONE
NONE
(4) 44256
(4) 44256
2MB
(16) 411000
NONE
NONE

4MB
(16) 411000
(16) 411000
NONE
NONE
Note: When installing the above chips, do not use sockets IC9, IC21, IC36 & IC45.

DRAM CONFIGURATION (PARITY CHIP)
Size
IC9, IC21
IC36, IC45
U38 - U39
U40 - U41
512KB
(2) 41256
NONE
NONE
NONE
512KB
NONE
NONE
(2) 41256
NONE
640KB
(2) 41256
(2) 4164
NONE
NONE
1MB
(2) 41256
(2) 41256
NONE
NONE
1MB
NONE
NONE
(2) 41256
(2) 41256
2MB
(2) 411000
NONE
NONE
NONE
4MB
(2) 411000
(2) 411000
NONE
NONE
Note:This section is used only if parity chips are installed.

DRAM SWITCH CONFIGURATION
Size
SW1/6
SW1/7
SW1/8
Conventional
Extended
Expanded
512KB
On
On
On
512KB
0KB
0KB
640KB
On
On
Off
640KB
0KB
0KB
1MB
On
Off
On
640KB
384KB
0KB
1MB
On
Off
Off
640KB
0KB
384KB
2MB
Off
On
On
640KB
1408KB
0KB
2MB
Off
On
Off
640KB
0KB
1408KB
4MB
Off
Off
On
640KB
3456KB
0KB
4MB
Off
Off
Off
640KB
0KB
3456KB

CPU SPEED CONFIGURATION
Speed
JP7
SW1/1
6MHz
Open
On
12.5MHz
Closed
Off

KEYBOARD BIOS CONFIGURATION
Connector
JP1
JP2
JP3
JP4
8742
pin 32
pin 27
pin 23
pin30
