DIMENSION XPS XX MDT, XPS XX FS Motherboard Settings and Configuration

DELL COMPUTER CORPORATION

DIMENSION XPS XX MDT, XPS XX FS

Device Type
Mainboard
Processor
80486DX2/80486DX4
Processor Speed
50(internal)/66(internal)/75(internal)/100(internal)MHz
Chip Set
Unidentified
Maximum Onboard Memory
64MB
Cache
128/256KB
BIOS
Unidentified
Dimensions
330mm x 218mm
I/O Options
32-bit VESA local bus slots (2), floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2)

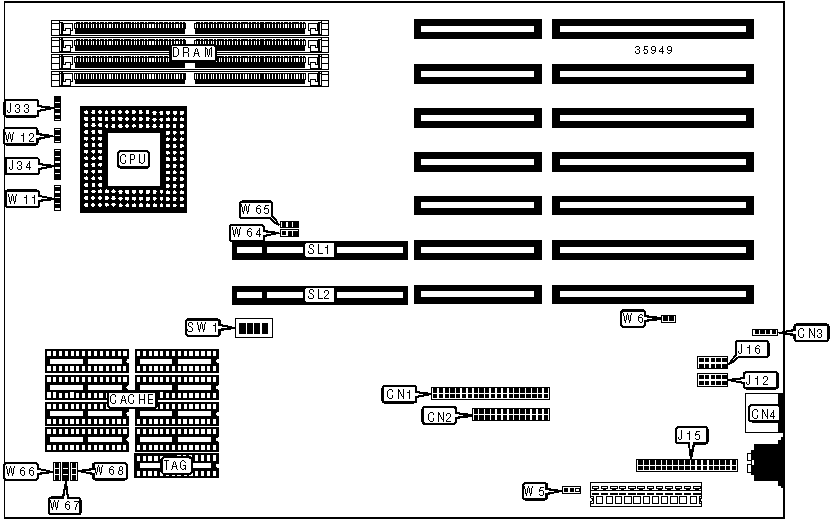

CONNECTIONS
Purpose
Location
Purpose
Location
IDE interface
CN1
Serial port 2
J16
Floppy drive interface
CN2
Speaker
J33
External battery
CN3
Power LED & keylock
J34
PS/2 mouse port
CN4
32-bit VESA local bus slots
SL1 & SL2
Serial port 1
J12
IDE interface LED
W11
Parallel port
J15
Reset switch
W12

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Factory configured - do not alter
W1
Open
»
Parallel port bidirectional
W5
Pins 1 & 2 closed

Parallel port unidirectional
W5
Pins 2 & 3 closed
»
Monitor type select color
W6
Closed

Monitor type select monochrome
W6
Open
»
Factory configured - do not alter
W7
Closed
»
Factory configured - do not alter
W8
Pins 1 & 2 closed
»
Factory configured - do not alter
W20
Pins 1 & 2 closed
»
Factory configured - do not alter
W31
Open
»
Factory configured - do not alter
W40
Pins 1 & 2 closed
»
Factory configured - do not alter
W70
Pins 1 & 2 closed
»
Factory configured - do not alter
W71
Open
»
Factory configured - do not alter
SW1/2
On
»
Factory configured - do not alter
SW1/3
Off
»
Factory configured - do not alter
SW1/4
Off
Note: The location of the factory configured jumpers are unidentified.

SIMM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
4MB
(1) 1M x 36
None
None
None
8MB
(1) 1M x 36
(1) 1M x 36
None
None
12MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
None
16MB
(1) 4M x 36
None
None
None
16MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
20MB
(1) 4M x 36
(1) 1M x 36
None
None
24MB
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
None
28MB
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
32MB
(1) 4M x 36
(1) 4M x 36
None
None
36MB
(1) 1M x 36
(1) 4M x 36
(1) 4M x 36
None
48MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
None
52MB
(1) 1M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
64MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG
128KB
(4) 32K x 8
None
Unidentified
256KB
(4) 32K x 8
(4) 32K x 8
Unidentified

CACHE JUMPER CONFIGURATION
Size
W64
W65
W66
W67
W68
128KB
2 & 3
1 & 2
1 & 2
1 & 2
2 & 3
256KB
2 & 3
2 & 3
2 & 3
2 & 3
2 & 3
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION
Speed
SW1/1
50iMHz
On
66iMHz
Off
75iMHz
On
100iMHz
Off
