PROFESSIONAL WORKSTATION 6000 MODEL 6266, MODEL 6300 Motherboard Settings and Configuration

Device Type	Mainboard
Processor	Pentium II
Processor Speed	266/300MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	512MB
Maximum Video Memory	None
Cache	512KB (located on Pentium II CPU)
BIOS	Unidentified
Dimensions	220mm x 220mm
I/O Options	CPU expansion slot, memory expansion slot
NPU Options	None

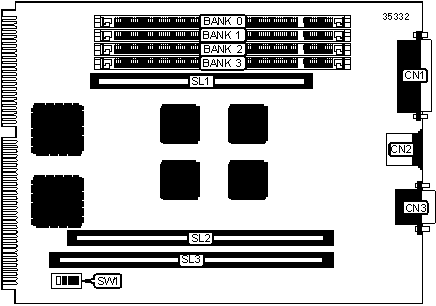

CONNECTIONS
Purpose	Location	Purpose	Location
Port	CN1	Expansion slot	SL1
Port	CN2	Expansion slot	SL1
Port	CN3	Expansion slot	SL3
Note: Ports are shown for location purposes only. The type is unidentified.

DIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
32MB	(1) 4M x 64	None	None	None
64MB	(1) 8M x 64	None	None	None
64MB	(1) 4M x 64	(1) 4M x 64	None	None
128MB	(1) 16M x 64	None	None	None
128MB	(1) 8M x 64	(1) 8M x 64	None	None
128MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
160MB	(1) 16M x 64	(1) 4M x 64	None	None
192MB	(1) 16M x 64	(1) 8M x 64	None	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	None
256MB	(1) 16M x 64	(1) 16M x 64	None	None
256MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
512MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64

CACHE CONFIGURATION

Note: 512KB cache is located on the Pentium II CPU.

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4
266MHz	66MHz	4x	Off	On	On	Off
300MHz	66MHz	4.5x	Off	On	On	Off
