5IDM2.1 Motherboard Settings and Configuration

CHAINTECH COMPUTER COMPANY, LTD.

5IDM2.1

Processor
Pentium
Processor Speed
75/90/100/120/133/150MHz
Chip Set
Intel
Max. Onboard DRAM
128MB
Cache
256/512KB
BIOS
Award
Dimensions
330mm x 218mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2), VRM module connector
NPU Options
None

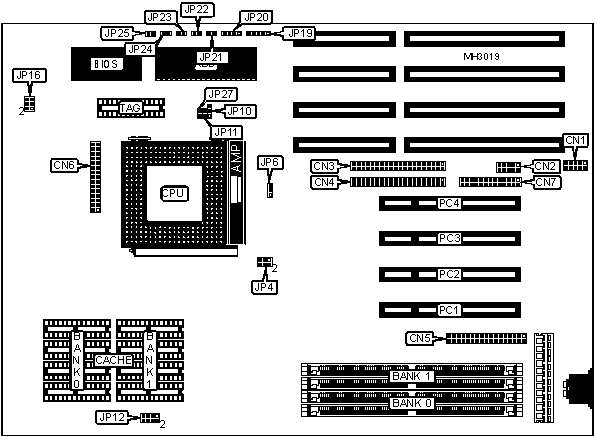

CONNECTIONS
Purpose
Location
Purpose
Location
Serial port 2
CN1
Speaker
JP20
Serial port 1
CN2
Turbo switch
JP21
IDE interface 2
CN3
IDE interface LED
JP22
IDE interface 1
CN4
Green PC connector
JP23
Floppy drive interface
CN5
Turbo LED
JP24
VRM module connector
CN6
Reset switch
JP25
Parallel port
CN7
32-bit PCI slots
PC1 - PC4
Power LED & keylock
JP19

DRAM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
NONE
8MB
NONE
(2) 1M x 36
16MB
(2) 2M x 36
NONE
16MB
NONE
(2) 2M x 36
16MB
(2) 1M x 36
(2) 1M x 36
24MB
(2) 1M x 36
(2) 2M x 36
24MB
(2) 2M x 36
(2) 1M x 36
32MB
(2) 4M x 36
NONE
32MB
NONE
(2) 4M x 36
32MB
(2) 2M x 36
(2) 2M x 36
40MB
(2) 1M x 36
(2) 4M x 36
40MB
(2) 4M x 36
(2) 1M x 36
48MB
(2) 2M x 36
(2) 4M x 36
48MB
(2) 4M x 36
(2) 2M x 36
64MB
(2) 8M x 36
NONE
64MB
NONE
(2) 8M x 36
64MB
(2) 4M x 36
(2) 4M x 36
72MB
(2) 1M x 36
(2) 8M x 36
72MB
(2) 8M x 36
(2) 1M x 36
80MB
(2) 2M x 36
(2) 8M x 36
80MB
(2) 8M x 36
(2) 2M x 36
96MB
(2) 4M x 36
(2) 8M x 36
96MB
(2) 8M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG
256KB
(4) 32K x 8
(4) 32K x 8
(1) 8K x 8
512KB
(4) 64K x 8
(4) 64K x 8
(1) 16K or (1) 32K x 8

CACHE JUMPER CONFIGURATION
Size
JP10
256KB
pins 2 & 3 closed
512KB
pins 1 & 2 closed

CACHE VOLTAGE CONFIGURATION
Voltage
JP12
3.3v
pins 1 & 2, 3 & 4 closed
5v
pins 5 & 6, 7 & 8 closed

CPU SPEED CONFIGURATION
Speed
JP4
JP6
75MHz
pins 3 & 5, 4 & 6 closed
pins 1 & 2 closed
90MHz
pins 2 & 4, 3 & 5 closed
pins 2 & 3 closed
100MHz
pins 1 & 3, 4 & 6 closed
pins 2 & 3 closed
120MHz
pins 2 & 4, 3 & 5 closed
pins 2 & 3 closed
133MHz
pins 1 & 3, 4 & 6 closed
pins 2 & 3 closed
150MHz
pins 2 & 4, 3 & 5 closed
pins 2 & 3 closed

CPU CLOCK SPEED CONFIGURATION
Speed
JP11
JP27
1.5x
Open
Open
2x
Closed
Open
2.5x
Closed
Closed
3x
Open
Closed

CPU VOLTAGE CONFIGURATION
Voltage
JP16
3.3v
pins 1 & 2 closed
3.4v
pins 3 & 4 closed
3.5v
pins 5 & 6 closed
