4SPM5.2 Motherboard Settings and Configuration

CHAINTECH COMPUTER COMPANY, LTD.

4SPM5.2

Processor
80486SX/ODP486/UMCU5S/CX486DX/AM486DX/80486DX/ CX486DX2/CX486DX2V/AM486DX2/80846DX2/CX486DX4/AM486DX4/80486DX4/P24D/P24T/CX5X86/AMK5
Processor Speed
25/33/40/50(internal)/50/63(internal)/66(internal)/75(internal)/ 80(internal)/83(internal)/100(internal)/120(internal)/133(internal)MHz
Chip Set
Unidentified
Video Chip Set
None
Maximum Onboard Memory
128MB (EDO supported)
Maximum Video Memory
None
Cache
128/256/512/1024KB
BIOS
Award
Dimensions
250mm x 220mm
I/O Options
32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2)
NPU Options
None

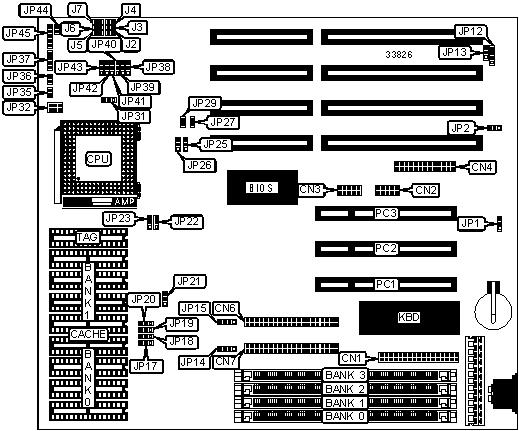

CONNECTIONS
Purpose
Location
Purpose
Location
Floppy drive interface
CN1
Green PC LED
JP27
Serial port 1
CN2
Green PC connector
JP29
Serial port 2
CN3
Turbo switch
JP35
Parallel port
CN4
Turbo LED
JP36
IDE interface 2
CN6
Speaker
JP37
IDE interface 1
CN7
Reset switch
JP44
External battery
JP12
Power LED & keylock
JP45
IDE interface LED 1
JP14
32-bit PCI slots
PC1 - PC3
IDE interface LED 2
JP15

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
CMOS memory normal operation
JP13
Pins 1 & 2 closed

CMOS memory clear
JP13
Pins 2 & 3 closed
»
PCI bus clock select CPU clock speed
JP21
Pins 1 & 2 closed

PCI bus clock select 1/2 CPU clock speed
JP21
Pins 2 & 3 closed
»
Factory configured - do not alter
JP31
Pins 1 & 2 closed
»
Factory configured - do not alter
JP39
Pins 1 & 2 closed
»
Factory configured - do not alter
JP40
Pins 1 & 2 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
1MB
(1) 256K x 36
None
None
None
2MB
(1) 256K x 36
(1) 256K x 36
None
None
2MB
(1) 512K x 36
None
None
None
3MB
(1) 512K x 36
(1) 256K x 36
None
None
3MB
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
None
4MB
(1) 512K x 36
(1) 256K x 36
(1) 256K x 36
None
4MB
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
4MB
(1) 1M x 36
None
None
None
4MB
(1) 512K x 36
(1) 512K x 36
None
None
5MB
(1) 1M x 36
(1) 256K x 36
None
None
5MB
(1) 512K x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
6MB
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
None
6MB
(1) 512K x 36
(1) 1M x 36
None
None
6MB
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
None
7MB
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
8MB
(1) 1M x 36
(1) 1M x 36
None
None
8MB
(1) 2M x 36
None
None
None
8MB
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
9MB
(1) 2M x 36
(1) 256K x 36
None
None
10MB
(1) 2M x 36
(1) 256K x 36
(1) 256K x 36
None

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
Bank 3
11MB
(1) 2M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
12MB
(1) 1M x 36
(1) 2M x 36
None
None
12MB
(1) 2M x 36
(1) 1M x 36
None
None
12MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
None
16MB
(1) 2M x 36
(1) 1M x 36
(1) 1M x 36
None
16MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
16MB
(1) 2M x 36
(1) 2M x 36
None
None
16MB
(1) 4M x 36
None
None
None
17MB
(1) 4M x 36
(1) 256K x 36
None
None
18MB
(1) 4M x 36
(1) 256K x 36
(1) 256K x 36
None
19MB
(1) 4M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
20MB
(1) 2M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
20MB
(1) 4M x 36
(1) 1M x 36
None
None
24MB
(1) 2M x 36
(1) 4M x 36
None
None
24MB
(1) 4M x 36
(1) 2M x 36
None
None
24MB
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
None
28MB
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
32MB
(1) 4M x 36
(1) 2M x 36
(1) 2M x 36
None
32MB
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
32MB
(1) 4M x 36
(1) 4M x 36
None
None
32MB
(1) 8M x 36
None
None
None
33MB
(1) 8M x 36
(1) 256K x 36
None
None
34MB
(1) 8M x 36
(1) 256K x 36
(1) 256K x 36
None
36MB
(1) 8M x 36
(1) 1M x 36
None
None
40MB
(1) 4M x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
40MB
(1) 8M x 36
(1) 1M x 36
(1) 1M x 36
None
40MB
(1) 8M x 36
(1) 2M x 36
None
None
44MB
(1) 8M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
48MB
(1) 8M x 36
(1) 2M x 36
(1) 2M x 36
None
48MB
(1) 8M x 36
(1) 4M x 36
None
None
48MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
None
52MB
(1) 1M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
56MB
(1) 8M x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
64MB
(1) 8M x 36
(1) 4M x 36
(1) 4M x 36
None
64MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
64MB
(1) 8M x 36
(1) 8M x 36
None
None
64MB
(1) 16M x 36
None
None
None
65MB
(1) 16M x 36
(1) 256K x 36
None
None
66MB
(1) 16M x 36
(1) 256K x 36
(1) 256K x 36
None
67MB
(1) 16M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
68MB
(1) 16M x 36
(1) 1M x 36
None
None
72MB
(1) 2M x 36
(1) 16M x 36
None
None

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
Bank 3
72MB
(1) 16M x 36
(1) 1M x 36
(1) 1M x 36
None
72MB
(1) 16M x 36
(1) 2M x 36
None
None
76MB
(1) 16M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
80MB
(1) 8M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
80MB
(1) 16M x 36
(1) 2M x 36
(1) 2M x 36
None
80MB
(1) 16M x 36
(1) 4M x 36
None
None
88MB
(1) 16M x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
96MB
(1) 16M x 36
(1) 4M x 36
(1) 4M x 36
None
96MB
(1) 16M x 36
(1) 8M x 36
None
None
96MB
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
None
100MB
(1) 1M x 36
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
104MB
(1) 2M x 36
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
112MB
(1) 16M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
128MB
(1) 16M x 36
(1) 8M x 36
(1) 8M x 36
None
128MB
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
128MB
(1) 16M x 36
(1) 16M x 36
None
None
Note: Board accepts x 32 SIMMs. Banks are interchangeable.

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG
128KB
(4) 32K x 8
NONE
(1) 8K x 8
256KB (A)
(4) 32K x 8
(4) 32K x 8
(1) 32K x 8
256KB (B)
(4) 64K x 8
NONE
(1) 32K x 8
512KB (A)
(4) 64K x 8
(4) 64K x 8
(1) 32K x 8
512KB (B)
(4) 128K x 8
NONE
(1) 32K x 8
1MB
(4) 128K x 8
(4) 128K x 8
(1) 64K x 8

CACHE JUMPER CONFIGURATION
Size
JP17
JP18
JP19
JP20
JP25
JP26
128KB
1 & 2
2 & 3
2 & 3
1 & 2
1 & 2
1 & 2
256KB (A)
2 & 3
2 & 3
2 & 3
2 & 3
2 & 3
1 & 2
256KB (B)
1 & 2
2 & 3
1 & 2
1 & 2
2 & 3
1 & 2
512KB (A)
2 & 3
2 & 3
2 & 3
2 & 3
2 & 3
2 & 3
512KB (B)
1 & 2
1 & 2
2 & 3
1 & 2
2 & 3
2 & 3
1MB
2 & 3
2 & 3
2 & 3
2 & 3
2 & 3
2 & 3
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION
Speed
JP22
JP23
25MHz
Pins 2 & 3 closed
Pins 2 & 3 closed
33MHz
Pins 1 & 2 closed
Pins 1 & 2 closed
40MHz
Pins 1 & 2 closed
Pins 2 & 3 closed
50iMHz
Pins 2 & 3 closed
Pins 2 & 3 closed
50MHz
Pins 2 & 3 closed
Pins 1 & 2 closed
63iMHz
Pins 1 & 2 closed
Pins 1 & 2 closed
66iMHz
Pins 1 & 2 closed
Pins 1 & 2 closed
75iMHz
Pins 2 & 3 closed
Pins 2 & 3 closed
80iMHz
Pins 1 & 2 closed
Pins 2 & 3 closed
83iMHz
Pins 1 & 2 closed
Pins 1 & 2 closed
100iMHz
Pins 1 & 2 closed
Pins 1 & 2 closed
120iMHz
Pins 1 & 2 closed
Pins 2 & 3 closed
133iMHz
Pins 1 & 2 closed
Pins 1 & 2 closed

CPU TYPE SELECTION
Type
J2
J3
J4
J5
80486SX
Closed
Open
Open
Open
ODP486
Open
Closed
Open
Open
UMCU5S
Closed
Open
Open
Open
CX486DX
Open
Closed
Open
Closed
AM486DX
Open
Closed
Open
Open
80486DX
Open
Closed
Open
Open
CX486DX2
Open
Closed
Open
Closed
CX486DX2V
Open
Closed
Open
Closed
AM486DX2
Open
Closed
Open
Open
AM486DX2-80
Open
Closed
Open
Open
80486DX2
Open
Closed
Open
Open
CX486DX4
Open
Closed
Open
Closed
CX486DX4 (P/O)
Open
Open
Open
Open
AM486DX4 (NV8T)
Open
Closed
Open
Open
AM486DX4 (SV8B)
Open
Open
Closed
Open
80486DX4
Open
Closed
Open
Open
80486DX4 (WB)
Open
Open
Closed
Open
P24D
Open
Open
Closed
Open
P24T
Open
Open
Closed
Open
CX5X86
Open
Open
Open
Open
AM X5
Open
Open
Closed
Open

CPU TYPE SELECTION
Type
J6
J7
JP42
JP43
80486SX
Closed
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
ODP486
Closed
Open
Pins 1 & 2 closed
Pins 2 & 3 closed
UMCU5S
Closed
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
CX486DX
Open
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
AM486DX
Closed
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
80486DX
Closed
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
CX486DX2
Open
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
CX486DX2V
Open
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
AM486DX2
Closed
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
AM486DX2-80
Closed
Open
Pins 2 & 3 closed
Pins 1 & 2 closed
80486DX2
Closed
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
CX486DX4
Open
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
CX486DX4 (P/O)
Open
Closed
Pins 1 & 2 closed
Pins 1 & 2 closed
AM486DX4 (NV8T)
Closed
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
AM486DX4 (SV8B)
Open
Closed
Pins 1 & 2 closed
Pins 1 & 2 closed
80486DX4
Closed
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
80486DX4 (WB)
Open
Closed
Pins 1 & 2 closed
Pins 1 & 2 closed
P24D
Open
Closed
Pins 1 & 2 closed
Pins 1 & 2 closed
P24T
Open
Closed
Pins 1 & 2 closed
Pins 2 & 3 closed
CX5X86
Open
Closed
Pins 1 & 2 closed
Pins 1 & 2 closed
AM X5
Open
Closed
Pins 1 & 2 closed
Pins 1 & 2 closed

CPU MULTIPLIER SELECTION (DX4 ONLY)
Multiplier
JP41
2x
Pins 2 & 3 closed
3x
Open
4x
Pins 2 & 3 closed

CPU VOLTAGE SELECTION
Voltage
JP32
JP38
3.3v
Open
Pins 1 & 2 closed
4v
Open
Pins 2 & 3 closed
5v
Pins 1 & 2, 3 & 4, 5 & 6 closed
N/A

DMA CHANNEL SELECTION
Channel
JP1
JP2
1
Pins 1 & 2 closed
Pins 1 & 2 closed
3
Pins 2 & 3 closed
Pins 2 & 3 closed

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

4SPM5.2 Motherboard Settings and Configuration

Search

My Books

Discover

Processor	80486SX/ODP486/UMCU5S/CX486DX/AM486DX/80486DX/ CX486DX2/CX486DX2V/AM486DX2/80846DX2/CX486DX4/AM486DX4/80486DX4/P24D/P24T/CX5X86/AMK5
Processor Speed	25/33/40/50(internal)/50/63(internal)/66(internal)/75(internal)/ 80(internal)/83(internal)/100(internal)/120(internal)/133(internal)MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	128MB (EDO supported)
Maximum Video Memory	None
Cache	128/256/512/1024KB
BIOS	Award
Dimensions	250mm x 220mm
I/O Options	32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2)
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Floppy drive interface	CN1	Green PC LED	JP27
Serial port 1	CN2	Green PC connector	JP29
Serial port 2	CN3	Turbo switch	JP35
Parallel port	CN4	Turbo LED	JP36
IDE interface 2	CN6	Speaker	JP37
IDE interface 1	CN7	Reset switch	JP44
External battery	JP12	Power LED & keylock	JP45
IDE interface LED 1	JP14	32-bit PCI slots	PC1 - PC3
IDE interface LED 2	JP15

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JP13	Pins 1 & 2 closed
	CMOS memory clear	JP13	Pins 2 & 3 closed
»	PCI bus clock select CPU clock speed	JP21	Pins 1 & 2 closed
	PCI bus clock select 1/2 CPU clock speed	JP21	Pins 2 & 3 closed
»	Factory configured - do not alter	JP31	Pins 1 & 2 closed
»	Factory configured - do not alter	JP39	Pins 1 & 2 closed
»	Factory configured - do not alter	JP40	Pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(1) 256K x 36	None	None	None
2MB	(1) 256K x 36	(1) 256K x 36	None	None
2MB	(1) 512K x 36	None	None	None
3MB	(1) 512K x 36	(1) 256K x 36	None	None
3MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	None
4MB	(1) 512K x 36	(1) 256K x 36	(1) 256K x 36	None
4MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
4MB	(1) 1M x 36	None	None	None
4MB	(1) 512K x 36	(1) 512K x 36	None	None
5MB	(1) 1M x 36	(1) 256K x 36	None	None
5MB	(1) 512K x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
6MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	None
6MB	(1) 512K x 36	(1) 1M x 36	None	None
6MB	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36	None
7MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
8MB	(1) 1M x 36	(1) 1M x 36	None	None
8MB	(1) 2M x 36	None	None	None
8MB	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
9MB	(1) 2M x 36	(1) 256K x 36	None	None
10MB	(1) 2M x 36	(1) 256K x 36	(1) 256K x 36	None

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
11MB	(1) 2M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
12MB	(1) 1M x 36	(1) 2M x 36	None	None
12MB	(1) 2M x 36	(1) 1M x 36	None	None
12MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	None
16MB	(1) 2M x 36	(1) 1M x 36	(1) 1M x 36	None
16MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
16MB	(1) 2M x 36	(1) 2M x 36	None	None
16MB	(1) 4M x 36	None	None	None
17MB	(1) 4M x 36	(1) 256K x 36	None	None
18MB	(1) 4M x 36	(1) 256K x 36	(1) 256K x 36	None
19MB	(1) 4M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
20MB	(1) 2M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
20MB	(1) 4M x 36	(1) 1M x 36	None	None
24MB	(1) 2M x 36	(1) 4M x 36	None	None
24MB	(1) 4M x 36	(1) 2M x 36	None	None
24MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	None
28MB	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
32MB	(1) 4M x 36	(1) 2M x 36	(1) 2M x 36	None
32MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
32MB	(1) 4M x 36	(1) 4M x 36	None	None
32MB	(1) 8M x 36	None	None	None
33MB	(1) 8M x 36	(1) 256K x 36	None	None
34MB	(1) 8M x 36	(1) 256K x 36	(1) 256K x 36	None
36MB	(1) 8M x 36	(1) 1M x 36	None	None
40MB	(1) 4M x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
40MB	(1) 8M x 36	(1) 1M x 36	(1) 1M x 36	None
40MB	(1) 8M x 36	(1) 2M x 36	None	None
44MB	(1) 8M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
48MB	(1) 8M x 36	(1) 2M x 36	(1) 2M x 36	None
48MB	(1) 8M x 36	(1) 4M x 36	None	None
48MB	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36	None
52MB	(1) 1M x 36	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36
56MB	(1) 8M x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
64MB	(1) 8M x 36	(1) 4M x 36	(1) 4M x 36	None
64MB	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36
64MB	(1) 8M x 36	(1) 8M x 36	None	None
64MB	(1) 16M x 36	None	None	None
65MB	(1) 16M x 36	(1) 256K x 36	None	None
66MB	(1) 16M x 36	(1) 256K x 36	(1) 256K x 36	None
67MB	(1) 16M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
68MB	(1) 16M x 36	(1) 1M x 36	None	None
72MB	(1) 2M x 36	(1) 16M x 36	None	None

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
128KB	(4) 32K x 8	NONE	(1) 8K x 8
256KB (A)	(4) 32K x 8	(4) 32K x 8	(1) 32K x 8
256KB (B)	(4) 64K x 8	NONE	(1) 32K x 8
512KB (A)	(4) 64K x 8	(4) 64K x 8	(1) 32K x 8
512KB (B)	(4) 128K x 8	NONE	(1) 32K x 8
1MB	(4) 128K x 8	(4) 128K x 8	(1) 64K x 8

CACHE JUMPER CONFIGURATION
Size	JP17	JP18	JP19	JP20	JP25	JP26
128KB	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2
256KB (A)	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	1 & 2
256KB (B)	1 & 2	2 & 3	1 & 2	1 & 2	2 & 3	1 & 2
512KB (A)	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
512KB (B)	1 & 2	1 & 2	2 & 3	1 & 2	2 & 3	2 & 3
1MB	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION
Speed	JP22	JP23
25MHz	Pins 2 & 3 closed	Pins 2 & 3 closed
33MHz	Pins 1 & 2 closed	Pins 1 & 2 closed
40MHz	Pins 1 & 2 closed	Pins 2 & 3 closed
50iMHz	Pins 2 & 3 closed	Pins 2 & 3 closed
50MHz	Pins 2 & 3 closed	Pins 1 & 2 closed
63iMHz	Pins 1 & 2 closed	Pins 1 & 2 closed
66iMHz	Pins 1 & 2 closed	Pins 1 & 2 closed
75iMHz	Pins 2 & 3 closed	Pins 2 & 3 closed
80iMHz	Pins 1 & 2 closed	Pins 2 & 3 closed
83iMHz	Pins 1 & 2 closed	Pins 1 & 2 closed
100iMHz	Pins 1 & 2 closed	Pins 1 & 2 closed
120iMHz	Pins 1 & 2 closed	Pins 2 & 3 closed
133iMHz	Pins 1 & 2 closed	Pins 1 & 2 closed

CPU TYPE SELECTION
Type	J2	J3	J4	J5
80486SX	Closed	Open	Open	Open
ODP486	Open	Closed	Open	Open
UMCU5S	Closed	Open	Open	Open
CX486DX	Open	Closed	Open	Closed
AM486DX	Open	Closed	Open	Open
80486DX	Open	Closed	Open	Open
CX486DX2	Open	Closed	Open	Closed
CX486DX2V	Open	Closed	Open	Closed
AM486DX2	Open	Closed	Open	Open
AM486DX2-80	Open	Closed	Open	Open
80486DX2	Open	Closed	Open	Open
CX486DX4	Open	Closed	Open	Closed
CX486DX4 (P/O)	Open	Open	Open	Open
AM486DX4 (NV8T)	Open	Closed	Open	Open
AM486DX4 (SV8B)	Open	Open	Closed	Open
80486DX4	Open	Closed	Open	Open
80486DX4 (WB)	Open	Open	Closed	Open
P24D	Open	Open	Closed	Open
P24T	Open	Open	Closed	Open
CX5X86	Open	Open	Open	Open
AM X5	Open	Open	Closed	Open

CPU TYPE SELECTION
Type	J6	J7	JP42	JP43
80486SX	Closed	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
ODP486	Closed	Open	Pins 1 & 2 closed	Pins 2 & 3 closed
UMCU5S	Closed	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
CX486DX	Open	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
AM486DX	Closed	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
80486DX	Closed	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
CX486DX2	Open	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
CX486DX2V	Open	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
AM486DX2	Closed	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
AM486DX2-80	Closed	Open	Pins 2 & 3 closed	Pins 1 & 2 closed
80486DX2	Closed	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
CX486DX4	Open	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
CX486DX4 (P/O)	Open	Closed	Pins 1 & 2 closed	Pins 1 & 2 closed
AM486DX4 (NV8T)	Closed	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
AM486DX4 (SV8B)	Open	Closed	Pins 1 & 2 closed	Pins 1 & 2 closed
80486DX4	Closed	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
80486DX4 (WB)	Open	Closed	Pins 1 & 2 closed	Pins 1 & 2 closed
P24D	Open	Closed	Pins 1 & 2 closed	Pins 1 & 2 closed
P24T	Open	Closed	Pins 1 & 2 closed	Pins 2 & 3 closed
CX5X86	Open	Closed	Pins 1 & 2 closed	Pins 1 & 2 closed
AM X5	Open	Closed	Pins 1 & 2 closed	Pins 1 & 2 closed

CPU MULTIPLIER SELECTION (DX4 ONLY)
Multiplier	JP41
2x	Pins 2 & 3 closed
3x	Open
4x	Pins 2 & 3 closed

CPU VOLTAGE SELECTION
Voltage	JP32	JP38
3.3v	Open	Pins 1 & 2 closed
4v	Open	Pins 2 & 3 closed
5v	Pins 1 & 2, 3 & 4, 5 & 6 closed	N/A

DMA CHANNEL SELECTION
Channel	JP1	JP2
1	Pins 1 & 2 closed	Pins 1 & 2 closed
3	Pins 2 & 3 closed	Pins 2 & 3 closed
