C747 (Ver. 002) Motherboard Settings and Configuration

CAF TECHNOLOGY, INC.

C747 (Ver. 002)

Processor
80386DX/CX486DLC/80486SX/80487SX/80486DX/80486DX2
Processor Speed
20/25/33/40/50(internal)/50/66(internal)MHz
Chip Set
EFAR
Max. Onboard DRAM
32MB
SRAM Cache
64/256KB
BIOS
AMI
Dimensions
331mm x 219mm
I/O Options
Floppy drive interface, game port, IDE interface, parallel port, serial port (2)
NPU Options
80387/CX83D87/3167

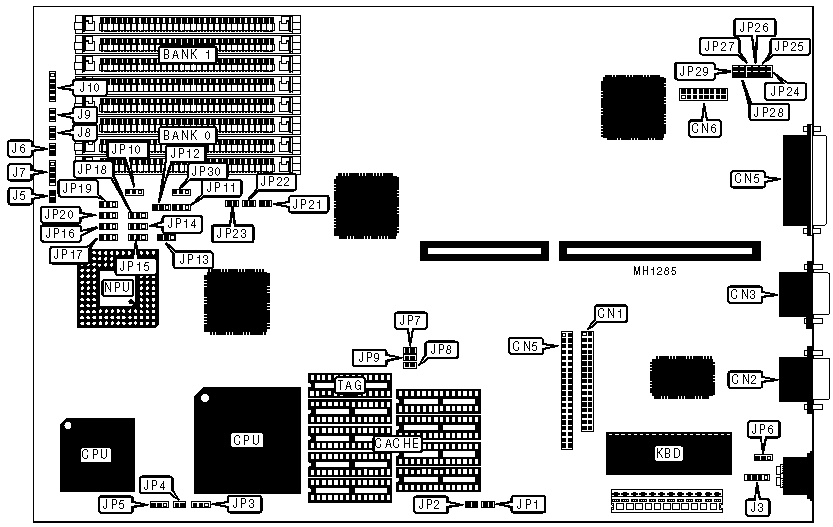

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
J3
Floppy drive interface
CN1
IDE interface LED
J5
Serial port 1
CN2
Reset switch
J6
Serial port 2
CN3
Speaker
J7
IDE interface
CN4
Turbo switch
J8
Parallel port
CN5
Turbo LED
J9
Game port
CN6
Power LED & keylock
J10

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Monitor type select color
JP1
closed

Monitor type select monochrome
JP1
open
»
CMOS memory normal operation (internal battery)
JP6
pins 2 & 3 closed

CMOS memory normal operation (external battery)
JP6
open

CMOS memory clear
JP6
pins 1 & 2 closed

SRAM JUMPER CONFIGURATION
Size
JP2
JP7
JP8
JP9
64KB
open
open
open
open
256KB
closed
closed
closed
open

SRAM CONFIGURATION
Size
Bank 0
TAG
64KB
(8) 8K x 8
(1) 8K x 8
256KB
(8) 32K x 8
(1) 32K x 8

CPU TYPE CONFIGURATION
CPU
JP3
JP4
JP5
80486DX2 1
pins 1 & 2 closed
closed
pins 2 & 3 closed
80486DX 1
pins 1 & 2 closed
closed
pins 2 & 3 closed
80487SX 1
pins 1 & 2 closed
closed
pins 1 & 2 closed
CX486DLC 2
N/A
N/A
N/A
80486SX 1
pins 2 & 3 closed
open
open
80368DX 2
N/A
N/A
N/A
Note 1 :Jumpers JP10, JP11, JP12, JP13, JP14, JP15, JP16, JP17, JP18, JP19, JP20, pins 2 & 3 closed.
Note 2 :Jumpers JP10, JP11, JP12, JP13, JP14, JP15, JP16, JP17, JP18, JP19, JP20, pins 1 & 2 closed.

DRAM CONFIGURATION
Size
Bank 0
Bank 1
1MB
(4) 256K x 9
NONE
2MB
(4) 256K x 9
(4) 256K x 9
4MB
(4) 1M x 9
NONE
5MB
(4) 1M x 9
(4) 256K x 9
8MB
(4) 1M x 9
(4) 1M x 9
16MB
(4) 4M x 9
NONE
20MB
(4) 4M x 9
(4) 1M x 9
20MB
(4) 1M x 9
(4) 4M x 9
32MB
(4) 4M x 9
(4) 4M x 9

CPU CLOCK CONFIGURATION
CPU
JP21
JP22
JP23
JP30
80486-50
open
open
open
pins 2 & 3 closed
80486-40
open
open
closed
pins 2 & 3 closed
80486-33
80486DX2-66
closed
open
open
pins 2 & 3 closed
80486-25
80486DX2-50
closed
open
closed
pins 2 & 3 closed
80386-40
CX486DLC-40
open
open
closed
pins 1 & 2 closed
80386-33
CX486DLC-33
closed
open
open
pins 1 & 2 closed
80386-25
closed
open
closed
pins 1 & 2 closed
80386-20
80486-20
open
closed
open
pins 1 & 2 closed

I/O CONTROLLER CONFIGURATION
Device
Jumper
Enabled
Disabled
Game port (CN6)
JP24
open
closed
IDE interface (CN4)
JP25
open
closed
Parallel port (CN5)
JP26
open
closed
Floppy drive interface (CN1)
JP27
open
closed
COM1 (CN2)
JP28
open
closed
COM2 (CN3)
JP29
open
closed
