TXM10-II (M8031)/TXM8-III (M8021) Motherboard Settings and Configuration
AUVA COMPUTER, INC.
TXM10-II (M8031)/TXM8-III (M8021)
Processor | 8088 |
Processor Speed | 8/10MHz |
Chip Set | None |
Max. Onboard DRAM | 1MB |
Cache | None |
BIOS | Phoenix |
Dimensions | 304mm x 215mm |
I/O Options | None |
NPU Options | 8087 |

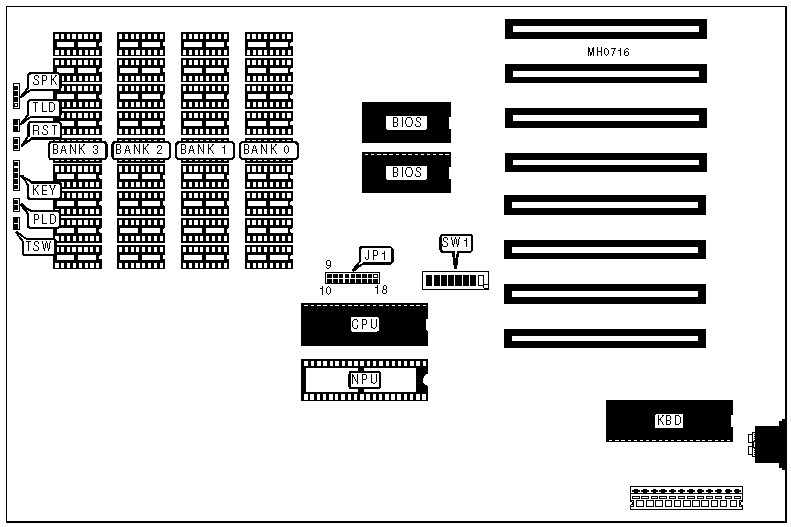

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Keylock | KEY | Speaker | SPK |
Power LED | PLD | Turbo LED | TLD |
Reset switch | RST | Turbo switch | TSW |
USER CONFIGURABLE SETTINGS | |||
Function | SW1 | Position | |
| » | Factory configured - do not alter | SW1/1 | Off |
| » | NPU disabled | SW1/2 | On |
NPU enabled | SW1/2 | Off | |
| » | Factory configured - do not alter | SW1/3 | Off |
| » | Factory configured - do not alter | SW1/4 | Off |
DRAM CONFIGURATION | ||||
Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
256KB | (9) 4164 | (9) 4164 | (9) 4164 | (9) 4164 |
448KB | (9) 41256 | (9) 4164 | (9) 4164 | (9) 4164 |
640KB | (9) 41256 | (9) 41256 | (9) 4164 | (9) 4164 |
1MB | (9) 41256 | (9) 41256 | (9) 41256 | (9) 41256 |
DRAM JUMPER CONFIGURATION | ||
Size | JP1/pins 8 & 11 | JP1/pins 9 & 10 |
256KB | Closed | Closed |
448KB | Open | Closed |
640KB | Closed | Open |
1MB | Open | Open |
FLOPPY DRIVE CONFIGURATION | ||
Drives installed | SW1/7 | SW1/8 |
1 | On | On |
2 | Off | On |
3 | On | Off |
4 | Off | Off |
MONITOR CONFIGURATION | ||
Type | SW1/5 | SW1/6 |
Monochrome | Off | Off |
40 x 20 color | Off | On |
80 x 25 color | On | Off |
EGA | On | On |
