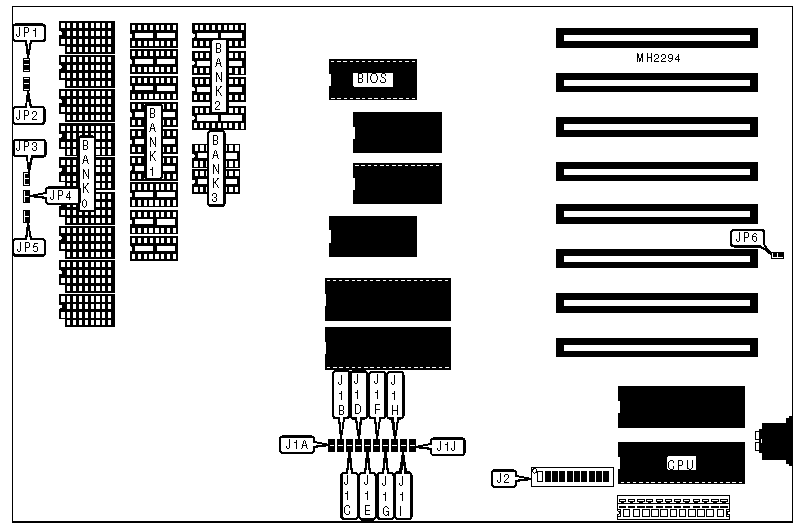

8088 TURBO TXM/10-III Motherboard Settings and Configuration
AUVA COMPUTER, INC.
8088 TURBO TXM/10-III
Processor | 8088 |
Processor Speed | 8/10MHz |
Chip Set | Unidentified |
Max. Onboard DRAM | 1MB |
Cache | None |
BIOS | Unidentified |
Dimensions | 260mm x 200mm |
I/O Options | None |
NPU Options | 8087 (exact location unknown) |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Power LED | JP1 | Turbo LED | JP4 |
Keylock | JP2 | Speaker | JP5 |
Turbo switch | JP3 | Reset switch | JP6 |
USER CONFIGURABLE SETTINGS | |||
Function | Switch | Position | |
» | Factory configured do not alter | J2/1 | Off |
» | NPU disabled | J2/2 | On |
| NPU enabled | J2/2 | Off |
» | Factory configured do not alter | J2/3 | Off |
» | Factory configured do not alter | J2/4 | Off |
DRAM CONFIGURATION | ||||
Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
256KB | (9) 4164 | (9) 4164 | (4) 4464 | (2) 4164 |
448KB | (9) 41256 | (9) 4164 | (4) 4464 | (2) 4164 |
512KB | (9) 41256 | (9) 41256 | NONE | NONE |
640KB | (9) 41256 | (9) 41256 | (4) 4464 | (2) 4164 |
1MB | (9) 411000 | NONE | NONE | NONE |
DRAM SWITCH CONFIGURATION | ||
Size | J2/9 | J2/10 |
256KB | On | On |
448KB | On | Off |
512KB | Off | On |
640KB | Off | On |
1MB | Off | Off |
DISPLAY CONFIGURATION | ||
Display | J2/5 | J2/6 |
EGA | On | On |
CGA 40 x 25 | Off | On |
CGA 80 x 25 | On | Off |
Monochrome | Off | Off |
FLOPPY DRIVE CONFIGURATION | ||
Number of drives | J2/7 | J2/8 |
1 | On | On |
2 | Off | On |
3 | On | Off |
4 | Off | Off |
BIOS TYPE SELECT | |||||||||
Type | J1A | J1B | J1C | J1D | J1E | J1F | J1G | J1H | J1J |
2764 | Closed | Open | Open | Closed | Open | Closed | Open | Open | Open |
27128 | Open | Closed | Closed | Open | Closed | Open | Closed | Open | Open |
