486DX/486SX CACHE MAINBOARD Motherboard Settings and Configuration

ATEN RESEARCH, INC.

486DX/486SX CACHE MAINBOARD

Processor
80486SX/80487SX/80486DX/80486DX2
Processor Speed
20/25/33/50(internal)/50/66(internal)MHz
Chip Set
UNI
Max. Onboard DRAM
128MB
Cache
32/64/128/256KB
BIOS
Award
Dimensions
330mm x 218mm
I/O Options
None
NPU Options
None

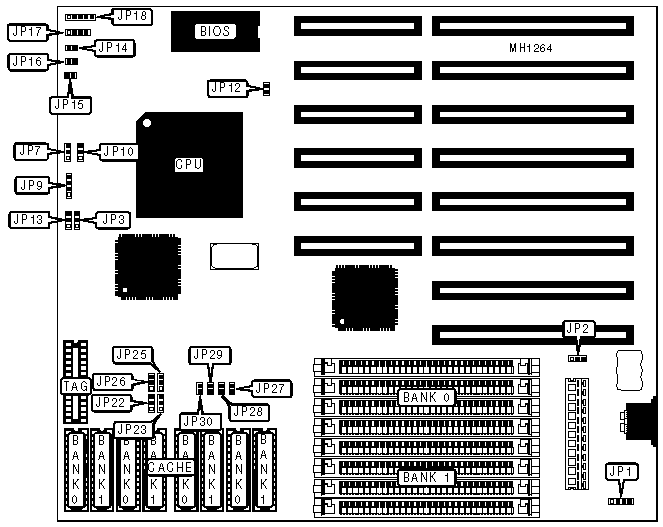

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
JP1
Turbo LED
JP16
Reset switch
JP14
Speaker
JP17
Turbo switch
JP15
Power LED & keylock
JP18

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
CMOS memory normal operation
JP2
pins 1 & 2 closed

CMOS memory clear
JP2
pins 2 & 3 closed
»
CPU speed (external) select 16/20/25/33/40MHz
JP3
pins 1 & 2 closed

CPU speed (external) select 50MHz
JP3
pins 2 & 3 closed
»
Monitor type select color
JP12
open

Monitor type select monochrome
JP12
closed

CPU TYPE CONFIGURATION
Jumper
JP7
JP9
JP13
80486DX2
pins 1 & 2 closed
pins 1 & 2 and 3 & 4 closed
pins 1 & 2 closed
80486DX
pins 1 & 2 closed
pins 1 & 2 and 3 & 4 closed
pins 1 & 2 closed
80487SX
pins 2 & 3 closed
pins 1 & 2 and 3 & 4 closed
pins 1 & 2 closed
80486SX
open
pins 2 & 3 closed
pins 2 & 3 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
1MB
(4) 256K x 9
NONE
2MB
(4) 256K x 9
(4) 256K x 9
4MB
(4) 1M x 9
NONE
5MB
(4) 256K x 9
(4) 1M x 9
8MB
(4) 1M x 9
(4) 1M x 9
16MB
(4) 4M x 9
NONE
20MB
(4) 1M x 9
(4) 4M x 9
32MB
(4) 4M x 9
(4) 4M x 9
64MB
(4) 16M x 9
NONE
128MB
(4) 16M x 9
(4) 16M x 9

SRAM JUMPER CONFIGURATION
Jumper
32KB
64KB
128KB
256KB
JP22
pins 2 & 3 closed
pins 2 & 3 closed
pins 2 & 3 closed
pins 1 & 2 closed
JP23
pins 2 & 3 closed
pins 2 & 3 closed
pins 1 & 2 closed
pins 2 & 3 closed
JP25
pins 1 & 2 closed
pins 2 & 3 closed
pins 2 & 3 closed
pins 2 & 3 closed
JP26
pins 2 & 3 closed
pins 1 & 2 closed
pins 2 & 3 closed
pins 2 & 3 closed
JP27
closed
open
open
open
JP28
open
closed
open
open
JP29
open
open
closed
open
JP30
open
open
open
closed

SRAM CONFIGURATION
Size
Cache SRAM
Location
TAG
32KB
(4) 8K x 8
Bank 0
(1) 8K x 8
64KB
(8) 8K x 8
Banks 0 & 1
(1) 8K x 8
128KB
(4) 32K x 8
Bank 0
(1) 32K x 8
256KB
(8) 32K x 8
Banks 0 & 1
(1) 32K x 8
