6300 XT Motherboard Settings and Configuration

AT & T, INC.

6300 XT

Processor
8086
Processor Speed
4.77MHz
Chip Set
None
Max. Onboard DRAM
640KB
Cache
None
BIOS
AT&T
Dimensions
272mm x 254mm
I/O Options
Parallel port, serial ports (2), floppy drive interface
NPU Options
8087

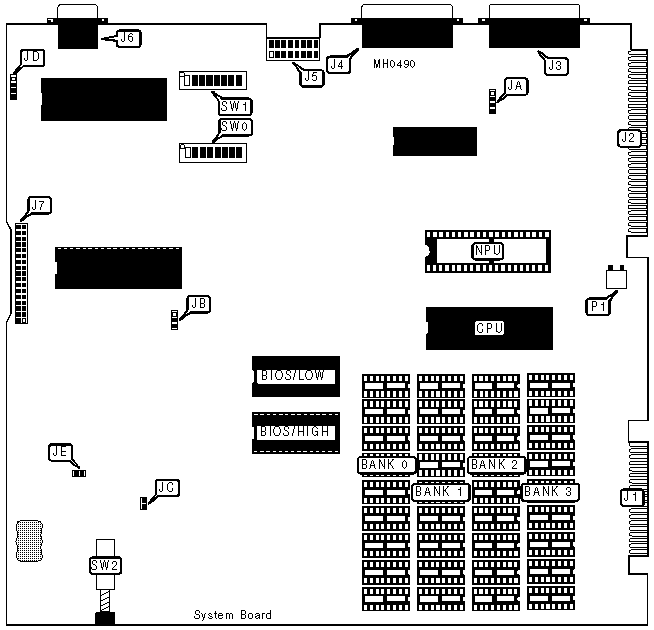

SYSTEM BOARD CONNECTIONS
Purpose
Location
Purpose
Location
To CRT controller board at J9
J1
Serial port 2
J5
To CRT controller board at J11
J2
Keyboard
J6
Serial port 1
J3
Floppy drive
J7
Parallel port
J4
+/- 12V Power
P1
Note:Bus converter board and display enhancement board not shown.

SYSTEM BOARD USER CONFIGURABLE SETTINGS
Function
Jumper/Switch
Position
»
Factory configured - do not alter
JA
N/A
»
Factory configured - do not alter
JB
N/A
»
Clock enabled
JC
Closed

Clock disabled
JC
Open
»
Factory configured - do not alter
JD
N/A
»
Clock battery enabled
JE
Closed

Clock battery disabled
JE
Open
»
NPU enabled
SW0/5
Off

NPU disabled
SW0/5
On
»
Serial interface select 8250
SW0/6
On

Serial interface select 8350
SW0/6
Off
»
BIOS type select 2732
SW0/8
On

BIOS type select 2764
SW0/8
Off
»
Disk drive select 96 TPI
SW1/1
Off

Disk drive select 48 TPI
SW1/1
On
»
Disk drive select fast start-up
SW1/2
Off

Disk drive select slow start-up
SW1/2
On

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
128KB
(9) 4164
(9) 4164
NONE
NONE
256KB
(9) 4164
(9) 4164
(9) 4164
(9) 4164
512KB
(9) 4464
(9) 4464
NONE
NONE
640KB
(9) 4164
(9) 4164
(9) 41256
(9) 41256

DRAM SWITCH CONFIGURATION
Size
SW0/1
SW0/2
SW0/3
SW0/4
128KB
Off
On
On
On
256KB
On
Off
On
On
512KB
On
On
Off
On
640KB
Off
On
Off
On

VIDEO CONFIGURATION
Size
SW1/5
SW1/6
80 columns
On
Off
40 columns
Off
On

HARD DRIVE CONFIGURATION
Setting
SW1/3
SW1/4
Enabled
Off
Off
Disabled
On
On

FLOPPY DRIVE CONFIGURATION
Drives installed
SW1/7
SW1/8
1
On
On
2
Off
On

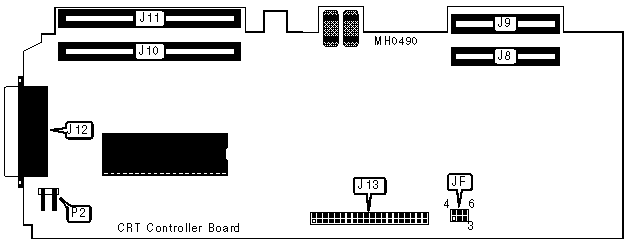

CRT CONTROLLER BOARD CONNECTIONS
Purpose
Location
Purpose
Location
To bus converter board
J8
Monitor
J12
To system board at J1
J9
To display enhancement board
J13
To bus converter board
J10
+15V Power
P2
To system board at J2
J11

CRT CONTROLLER BOARD USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Oscillator select internal
JF
pins 2 & 3 closed

Oscillator select on display enhancement board
JF
pins 4 & 5 closed
»
Clock select internal
JF
pins 5 & 6 closed

Oscillator select 24MHz
JF
pins 1 & 2 closed
