P2L97 (REV. 1.05) Motherboard Settings and Configuration

Device Type

Mainboard

Processor

Pentium II

Processor Speed

233/266/300/333MHz

Chip Set

Intel 440LX

Maximum Onboard Memory

384MB (EDO supported)

Cache

256/512KB (located on Pentium II CPU)

BIOS

Unidentified

Dimensions

305mm x 244mm

I/O Options

32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot

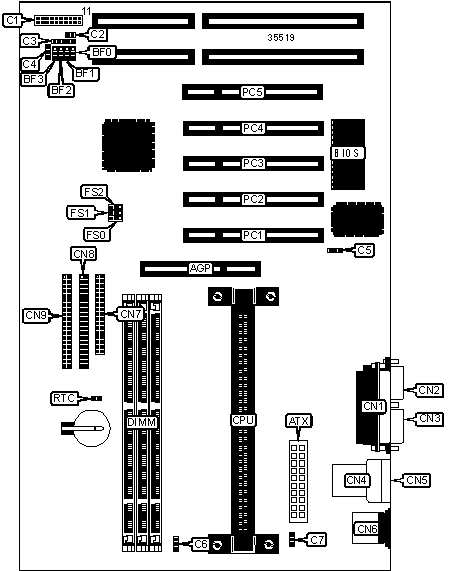

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

CPU fan power

C6

ATX power connector

ATX

Power fan

C7

Power LED & keylock

C1/pins 1 - 5

Parallel port

CN1

Speaker

C1/pins 7 - 10

Serial port 2

CN2

Message LED

C1/pins 12 & 13

Serial port 1

CN3

Green PC connector

C1/pins 14 & 15

USB connector 1

CN4

Soft off power supply

C1/pins 16 & 17

USB connector 2

CN5

Reset switch

C1/pins 19 & 20

PS/2 mouse port

CN6

IDE interface LED

C2

Floppy drive interface

CN7

IR connector

C3

IDE interface 2

CN8

CPU fan power

C4

IDE interface 1

CN9

Wake on LAN connector

C5

32-bit PCI slots

PC1 - PC5

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

RTC

Open

CMOS memory clear

RTC

Closed

DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(1) 1M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

16MB

(1) 2M x 64

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

DIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

Note: Board accepts EDO memory.

CPU SPEED SELECTION (PENTIUM)

Speed

Clock speed

Multiplier

FS0

FS1

FS2

BF0

BF1

BF2

BF3

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

266MHz

66MHz

4.0x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

2 & 3

300MHz

66MHz

4.5x

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

333MHz

66MHz

5.0x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

2 & 3

Note: Pins designated are in the closed position.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU.
