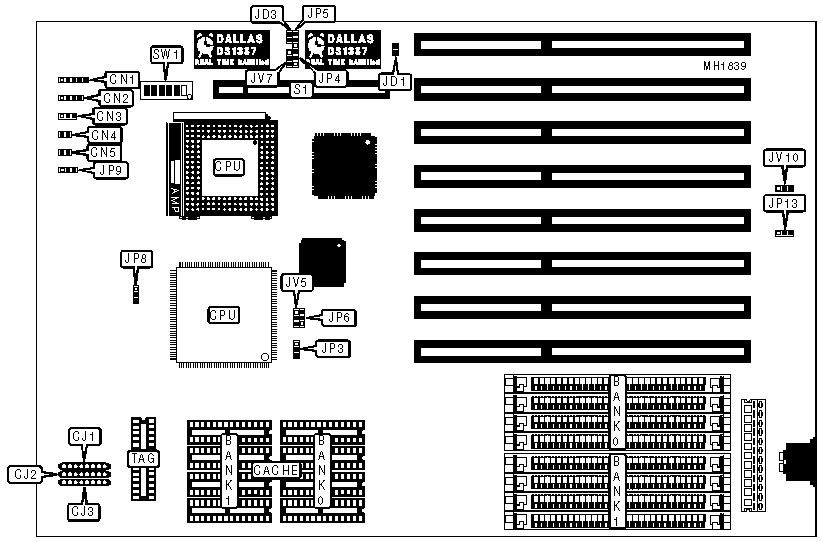

VL/EISA-486SVI Motherboard Settings and Configuration

ASUS COMPUTER INTERNATIONAL

VL/EISA-486SVI

Processor
80486SX/80487SX/80486DX/ODP486SX/80486DX2
Processor Speed
16/20/25/33/50(internal)/50/66(internal)MHz
Chip Set
SIS
Max. Onboard DRAM
128MB
Cache
64/128/256KB
BIOS
Award
Dimensions
330mm x 218mm
I/O Options
32-bit VESA local bus slot
NPU Options
None

CONNECTIONS
Purpose
Location
Purpose
Location
Power LED & keylock
CN1
Turbo LED
CN4
Speaker
CN2
Turbo switch
CN5
Reset switch
CN3
32-bit VESA Local bus slot
S1

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Factory configured - do not alter
JD1
Open
»
Factory configured - do not alter
JD3
Open
»
Factory configured - do not alter
JP3
pins 2 & 3 closed
»
Factory configured - do not alter
JP4
pins 1 & 2 closed
»
Factory configured - do not alter
JP5
pins 1 & 2 closed
»
Factory configured - do not alter
JP6
pins 1 & 2 closed
»
CPU PGA installed
JP8
pins 1 & 2 closed

CPU PQFP installed
JP8
pins 2 & 3 closed
»
Factory configured - do not alter
JP13
pins 1 & 2 closed
»
Factory configured - do not alter
JV5
pins 1 & 2 closed
»
Factory configured - do not alter
JV7
pins 1 & 2 closed
»
Factory configured - do not alter
JV10
pins 1 & 2 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
1MB
(4) 256K x 9
NONE
2MB
(4) 256K x 9
(4) 256K x 9
4MB
(4) 1M x 9
NONE
8MB
(4) 1M x 9
(4) 1M x 9
16MB
(4) 4M x 9
NONE
20MB
(4) 1M x 9
(4) 4M x 9
32MB
(4) 4M x 9
(4) 4M x 9
64MB
(4) 16M x 9
NONE
128MB
(4) 16M x 9
(4) 16M x 9

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG
64KB
(4) 8K x 8
(4) 8K x 8
(1) 8K x 8
128KB
(4) 32K x 8
NONE
(1) 8K x 8
256KB
(4) 32K x 8
(4) 32K x 8
(1) 32K x 8

CACHE RESISTER CONFIGURATION
Size
CJ1
CJ2
CJ3
64KB
Installed
Not installed
Not installed
128KB
Not installed
Installed
Not installed
256KB
Not installed
Not installed
Installed

CPU TYPE CONFIGURATION
Type
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
80486SX
Off
Off
Off
Off
On
On
80487SX
Off
On
On
On
Off
On
80486DX
On
On
On
Off
Off
On
ODP486SX
Off
On
On
On
Off
On
80486DX2
On
On
On
Off
Off
On

CPU SPEED CONFIGURATION
Speed
JP9
16MHz
pins 2 & 3 closed
20MHz
pins 2 & 3 closed
25MHz
pins 2 & 3 closed
33MHz
pins 2 & 3 closed
50iMHz
pins 2 & 3 closed
50MHz
pins 1 & 2 closed
66iMHz
pins 2 & 3 closed
