Bravo 386SX/16 (202343-001, 003) Motherboard Settings and Configuration

Processor	80386SX
Processor Speed	16MHz
Chip Set	AST
Max. Onboard DRAM	4MB
SRAM Cache	None
BIOS	AST
Dimensions	286mm x 190mm
I/O Options	Floppy drive interface, IDE interface, parallel port, serial port
NPU Options	80387SX

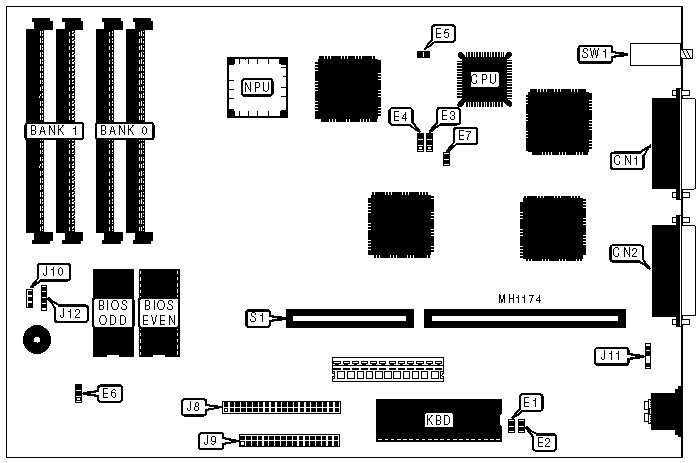

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port	CN1	External battery	J11
Serial port 1 (COM1)	CN2	IDE interface LED	J12
IDE interface	J8	Riser card	S1
Floppy drive interface	J9	Reset switch	SW1
Power LED	J10

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	POST loop disabled (factory test)	E1	open
	POST loop enabled	E1	closed
»	Keyboard select installed	E2	open
	Keyboard select not instaled	E2	closed
»	Factory configured - do not alter	E3	pins 2 & 3 closed
»	Factory configured - do not alter	E4	pins 2 & 3 closed
»	Factory configured - do not alter	E5	closed
»	Monitor type select color	E6	pins 1 & 2 closed
	Monitor type select monochrome	E6	pins 2 & 3 closed
»	Factory configured - do not alter	E7	closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(2) 256K x 9	NONE
1MB	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9
