ALARIS
LEOPARD 486SLC2 REV. B
Processor | 80486SLC2 |
Processor Speed | 50(internal)/66(internal)MHz |
Chip Set | OPTI |
Max. Onboard DRAM | 16MB |
Cache | 64/128KB |
BIOS | AMI/MR |
Dimensions | 235mm x 207mm |
I/O Options | 32-bit VESA local bus slots (2) |
NPU Options | 80387SX |

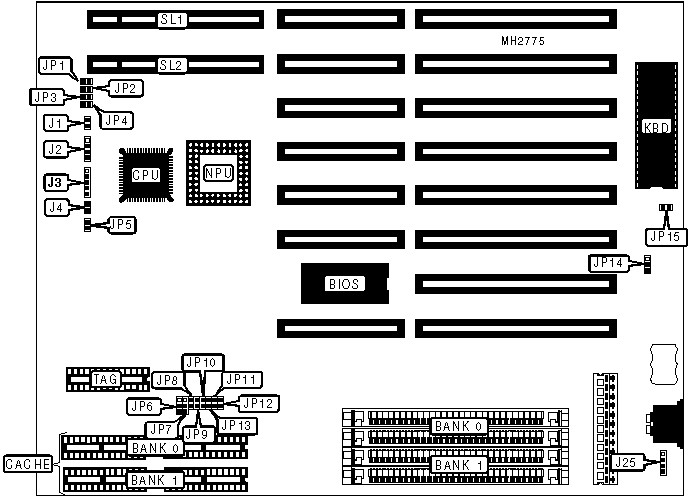

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Reset switch | J1 | Turbo LED | JP5 |
Speaker | J2 | External battery connector | J25 |
Power LED & keylock | J3 | 32-bit VESA local bus slots | SL1 & SL2 |
Turbo switch | J4 |
USER CONFIGURABLE SETTINGS | |||
Function | Jumper | Position | |
» | Factory configured - do not alter | JP1 | Open |
» | Factory configured - do not alter | JP2 | Open |
» | Factory configured - do not alter | JP3 | Open |
» | Factory configured - do not alter | JP4 | Closed |
» | Factory configured - do not alter | JP10 | N/A |
» | Factory configured - do not alter | JP11 | N/A |
» | Factory configured - do not alter | JP12 | N/A |
» | Factory configured - do not alter | JP13 | N/A |
» | CMOS normal operation | JP14 | pins 2 & 3 closed |
CMOS memory clear | JP14 | pins 1 & 2 closed | |
» | Factory configured - do not alter | JP15 | Open |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
512KB | (2) 256K x 9 | NONE |
1MB | (2) 256K x 9 | (2) 256K x 9 |
2MB | (2) 1M x 9 | NONE |
4MB | (2) 1M x 9 | (2) 1M x 9 |
8MB | (2) 4M x 9 | NONE |
10MB | (2) 1M x 9 | (2) 4M x 9 |
16MB | (2) 4M x 9 | (2) 4M x 9 |
CACHE CONFIGURATION | |||
Size | Bank 0 | Bank 1 | TAG |
64KB | (2) 32K x 8 | NONE | (1) 8K x 8 |
128KB | (2) 32K x 8 | (2) 32K x 8 | (1) 32K x 8 |
CACHE JUMPER CONFIGURATION | ||||
Size | JP6 | JP7 | JP8 | JP9 |
64KB | pins 2 & 3 closed | pins 2 & 3 closed | Closed | Closed |
128KB | pins 2 & 3 closed | pins 1 & 2 closed | Closed | Closed |
