PROVEISA Series Motherboard Settings and Configuration
ADVANCED LOGIC RESEARCH, INC.
PROVEISA Series
Processor | 80486DX/ODP486SX/80486DX2 |
Processor Speed | 33/66(internal)MHz |
Chip Set | ALR |
Max. Onboard DRAM | 256MB |
Cache | None (512KB on external CPU/NPU/Cache module) |
BIOS | Phoenix |
Dimensions | 330mm x 218mm |
I/O Options | 32-bit external CPU/NPU/Cache module slot (2), floppy interface, IDE interface, parallel port, serial port (2), SVGA port |
NPU Options | None |

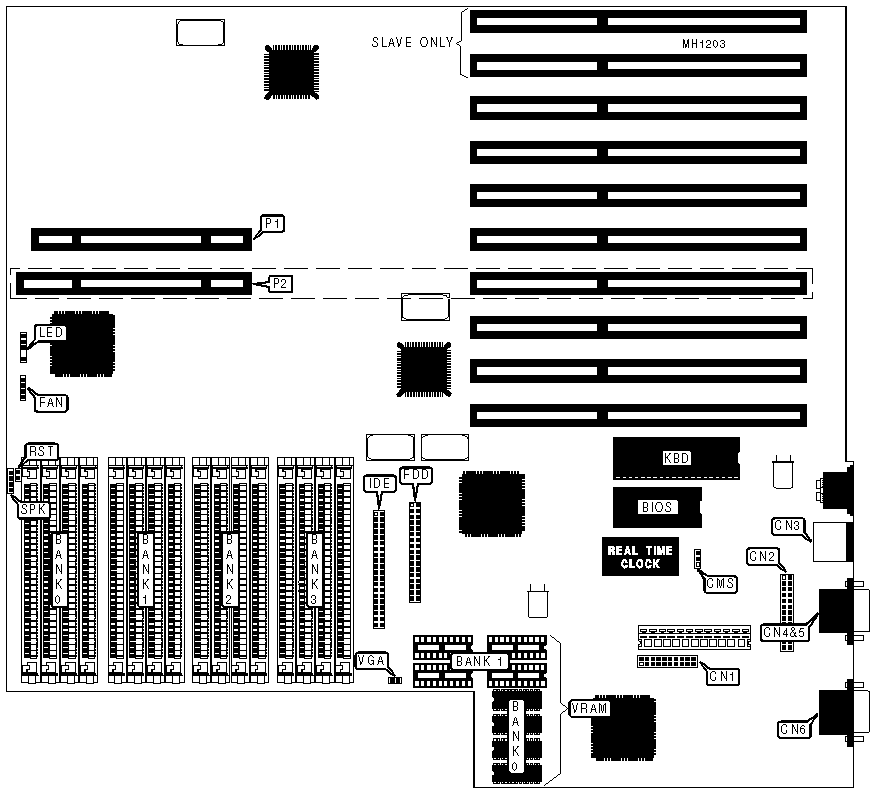

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
32-bit external CPU/NPU/Cache module (primary) | P1 | SVGA port | CN6 |
32-bit external CPU/NPU/Cache module (secondary) | P2 | Fan power | FAN |
VGA pass-through | CN1 | Floppy drive interface | FDD |
Parallel port | CN2 | IDE interface | IDE |
Bus mouse port | CN3 | Power LED & keylock | LED |
Serial port (COM1) | CN4 | Speaker | SPK |
Serial port (COM2) | CN5 | Reset switch | RST |
USER CONFIGURABLE SETTINGS | |||
Function | Jumper | Position | |
| » | VGA port enabled | VGA | open |
VGA port disabled | VGA | closed | |
| » | CMOS memory normal operation | CMS | pins 1 & 2 closed |
CMOS memory clear | CMS | pins 2 & 3 closed | |
DRAM CONFIGURATION | ||||
Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
1MB | (4) 256K x 9 | NONE | NONE | NONE |
2MB | (4) 256K x 9 | (4) 256K x 9 | NONE | NONE |
3MB | (4) 256K x 9 | (4) 256K x 9 | (4) 256K x 9 | NONE |
4MB | (4) 256K x 9 | (4) 256K x 9 | (4) 256K x 9 | (4) 256K x 9 |
4MB | (4) 1M x 9 | NONE | NONE | NONE |
5MB | (4) 256K x 9 | (4) 1M x 9 | NONE | NONE |
6MB | (4) 256K x 9 | (4) 256K x 9 | (4) 1M x 9 | NONE |
7MB | (4) 256K x 9 | (4) 256K x 9 | (4) 256K x 9 | (4) 1M x 9 |
8MB | (4) 1M x 9 | (4) 1M x 9 | NONE | NONE |
9MB | (4) 256K x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
10MB | (4) 256K x 9 | (4) 256K x 9 | (4) 1M x 9 | (4) 1M x 9 |
12MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
13MB | (4) 256K x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
16MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
16MB | (4) 4M x 9 | NONE | NONE | NONE |
17MB | (4) 256K x 9 | (4) 4M x 9 | NONE | NONE |
20MB | (4) 1M x 9 | (4) 4M x 9 | NONE | NONE |
21MB | (4) 256K x 9 | (4) 1M x 9 | (4) 4M x 9 | NONE |
24MB | (4) 1M x 9 | (4) 1M x 9 | (4) 4M x 9 | NONE |
28MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 4M x 9 |
32MB | (4) 4M x 9 | (4) 4M x 9 | NONE | NONE |
33MB | (4) 256K x 9 | (4) 4M x 9 | (4) 4M x 9 | NONE |
36MB | (4) 1M x 9 | (4) 4M x 9 | (4) 4M x 9 | NONE |
37MB | (4) 256K x 9 | (4) 1M x 9 | (4) 4M x 9 | (4) 4M x 9 |
40MB | (4) 1M x 9 | (4) 1M x 9 | (4) 4M x 9 | (4) 4M x 9 |
48MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | NONE |
49MB | (4) 256K x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 |
52MB | (4) 1M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 |
64MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 |
64MB | (4) 16M x 9 | NONE | NONE | NONE |
68MB | (4) 1M x 9 | (4) 16M x 9 | NONE | NONE |
80MB | (4) 4M x 9 | (4) 16M x 9 | NONE | NONE |
84MB | (4) 1M x 9 | (4) 4M x 9 | (4) 16M x 9 | NONE |
96MB | (4) 4M x 9 | (4) 4M x 9 | (4) 16M x 9 | NONE |
100MB | (4) 1M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 16M x 9 |
112MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 16M x 9 |
128MB | (4) 16M x 9 | (4) 16M x 9 | NONE | NONE |
132MB | (4) 1M x 9 | (4) 16M x 9 | (4) 16M x 9 | NONE |
144MB | (4) 4M x 9 | (4) 16M x 9 | (4) 16M x 9 | NONE |
148MB | (4) 1M x 9 | (4) 4M x 9 | (4) 16M x 9 | (4) 16M x 9 |
160MB | (4) 4M x 9 | (4) 4M x 9 | (4) 16M x 9 | (4) 16M x 9 |
196MB | (4) 16M x 9 | (4) 16M x 9 | (4) 16M x 9 | NONE |
200MB | (4) 1M x 9 | (4) 16M x 9 | (4) 16M x 9 | (4) 16M x 9 |
212MB | (4) 4M x 9 | (4) 16M x 9 | (4) 16M x 9 | (4) 16M x 9 |
256MB | (4) 16M x 9 | (4) 16M x 9 | (4) 16M x 9 | (4) 16M x 9 |
